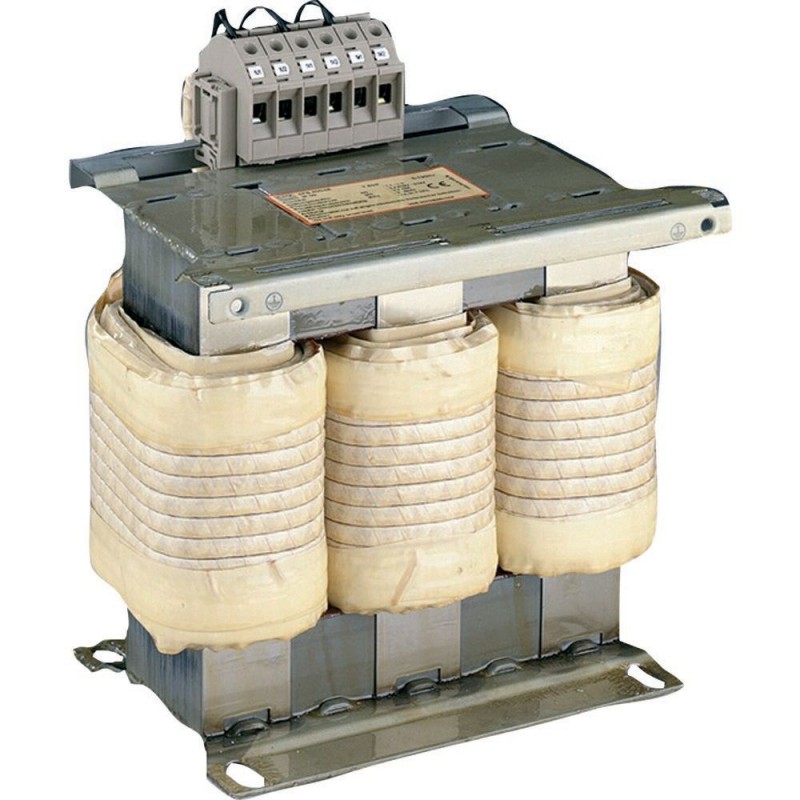

DX-SIN3-048 271597 Y7-271597 EATON ELECTRIC Filtro Sinusoidal Trifásico 400 V AC 48 A

DX-SIN3-048

271597

Y7-271597

EATON-MOELLER

Filtro Sinusoidal, Trifásico, 400 V AC, 48 A

Eaton DX Sine filter, three-phase, 500 V + 0% (50/60 Hz) V AC, 48 A, For use with: DA1, DL1, DG1, SVX, SPX

Filtro sinusoidal, Descripción: trifásico, Corriente nominal de funcionamiento: Ie= 48 A, Para uso con: DA1, DL1, DG1, SVX, SPX

Más detalles


Componentes industriales de baja tensión > Accesorios para reguladores de frecuencia

Convertidores de Frecuencia Power XL

Producto nuevo en su embalaje original con todas las garantías y certificaciones de EATON-MOELLER

Precio total: $1,318.09
Precio unitario: $1,318.09
Este precio es por unidad y muestra el valor neto (no incluye impuestos indirectos si son aplicables).

Si nuestro precio no es el mejor solicítenos presupuesto Solicitar presupuesto

Más vendidos

▲

Más Información

▲


Especificaciones generales

Product Name
Eaton DX Sine filter
Catalog Number
271597
EAN
4015082715977
Product Length/Depth
240 mm
Product Height
280 mm
Product Width
220 mm
Product Weight
26.2 kg
Certifications
CE
Certified by UL for use in Canada
IEC/EN61800-5
UL report applies to both US and Canada
CSA-C22.2 No. 14
IEC/EN61800-3
UL File No.: E300273
UL Category Control No.: NMTR2, NMTR8
UL 508C
UL
Model Code
DX-SIN3-048

Product specifications

Product Category
Accessories
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
Fitted with:
PE stud
Terminations
Used with
DC1
DA1
DM1
DG1
Accessory/spare part type
Filter
Altitude
Max. 1000 m
Max. 4000 m with current reduction
Ambient operating temperature - max
45 °C
Ambient operating temperature - min
-10 °C
Rated frequency - max
120 Hz
Rated frequency - min
0 Hz
Rated inductance
1.2 mH
Ambient storage temperature - max
85 °C
Ambient storage temperature - min
-25 °C
Equipment heat dissipation, current-dependent Pvid
240 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0 W
Number of phases
3
Mounting position
Free surrounding areas < 100 mm
Standing vertically
Suspended horizontally
Duty factor
100 %
Degree of protection
IP00
Terminal capacity
20 - 6 AWG
Insulation class
F
Rated operational voltage (Ue) - max
400 V
Rated operational current (Ie) - max
48 A
Operating temperature details
-10 - 45 °C (up to 70 °C with current derating)
Rated operational current for specified heat dissipation (In)
48 A
Static heat dissipation, non-current-dependent Pvs
0 W
Voltage rating - max
480 V
Voltage sag Uk
7.8 %
Permissible connection voltage
Max. 500 V AC (5 - 150 Hz)
Suitable for
Branch circuits, (UL/CSA)
Tightening torque
1.5 Nm, Screw terminals

ETIM for 271597 Interruptores de baja tensión (EC002025)
Característica Valor
Tipo de accesorio/repuesto (EF000215) Filtro
Accesorio (EF013236) Sí
Recambio (EF013237) No

Datasheet - PDF

▲
Título: Tamaño: Tipo:
PDF CATALOGO EATON CONTROL Y AUTOMATIZACION ES.pdf 9 Mbytes
PDF CATALOGUE EATON EN .pdf 38 Mbytes
DX-SIN3-048 Y7-271597 271597 FR_730-32034-00P.pdf 4 Mbytes DX-SIN3-048 Y7-271597 271597 FR_730-32034-00P.pdf
