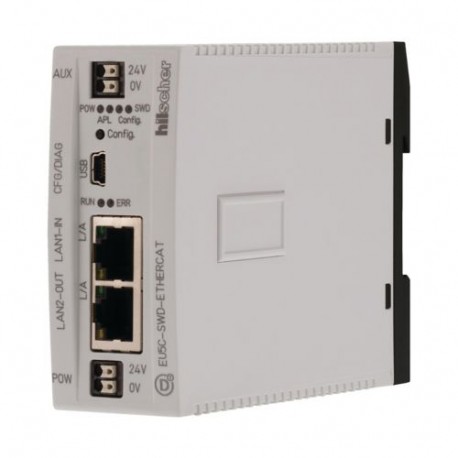

EU5C-SWD-ETHERCAT 177354 Y7-177354 EATON ELECTRIC Gateway SWDT, EtherCAT Hasta 99 modulos
EU5C-SWD-ETHERCAT
177354
Y7-177354
EATON-MOELLER
Gateway SWDT, EtherCAT, Hasta 99 modulos
Eaton EU5C SWD gateway; 99 SWD cards on EtherCAT
Pasarela SmartWire-DT para conectar hasta 99 módulos SmartWire-DT a una red Ethernet industrial y para alimentar los módulos y la aparamenta SmartWire-DT. Se puede establecer una conexión a EtherCAT utilizando el conmutador Ethernet integrado de 100 Mbit/s como esclavo. La puerta de enlace cuenta con una interfaz de diagnóstico USB separada.
Controladores industriales (PLC) > Módulo de comunicación de periférico descentralizado de bus de campo
Smartwire Darwin
Producto nuevo en su embalaje original con todas las garantías y certificaciones de EATON-MOELLER
Comprados juntos habitualmente
▲Más vendidos
▲Más Información
▲Especificaciones generales
Product Name
Eaton EU5C Communication module
Catalog Number
177354
EAN
4015081718146
Product Length/Depth
127 mm
Product Height
90 mm
Product Width
35 mm
Product Weight
0.16 kg
Certifications
IEC/EN 61131-2
UL Category Control No.: NRQA
UL report applies to both US and Canada
UL
CSA
UL File No.: E221530
UL Category Control No.: NRQA
UL report applies to both US and Canada
UL
CSA
UL File No.: E221530
Model Code
EU5C-SWD-ETHERCAT
Características y funciones
Features
Overload proof
Potential isolation (Fieldbus Interface)
Potential isolation (Fieldbus Interface)
Functions
For connection to an EtherCAT fieldbus as a slave
Operating mode
Address allocation via EtherCAT
General
Degree of protection
IP20
Mounting method
Top-hat rail fixing (according to IEC/EN 60715, 35 mm)
Rail mounting possible
Wall mounting/direct mounting
Screw fixing using fixing brackets ZB4-101-GF1 (accessories)
Rail mounting possible
Wall mounting/direct mounting
Screw fixing using fixing brackets ZB4-101-GF1 (accessories)
Overvoltage category
II
Pollution degree
2
Product category
SmartWire-DT coordinators
Repetition rate
1 s
Residual ripple
≤ 5 % (input voltage)
Suitable for
Safety functions
Terminal capacity
0.2 - 1.5 mm², solid
0.25 - 1.5 mm², flexible with ferrule
24 - 16 AWG, solid or stranded
0.25 - 1.5 mm², flexible with ferrule
24 - 16 AWG, solid or stranded
Voltage type
DC
Condiciones ambientales y mecánicas
Constant acceleration
1 g, 9 - 150 Hz, according to IEC/EN 61131-2, Vibrations
Constant amplitude
3,5 mm, 5 - 9 Hz, according to IEC/EN 61131-2, Vibrations
Drop and topple
50 mm Drop height, Drop to IEC/EN 60068-2-31
Height of fall (IEC/EN 60068-2-32) - max
1 m
Mounting position
As required
Shock resistance
15 g, Mechanical, according to IEC/EN 60068-2-27, Half-sinusoidal shock 11 ms, 9 Impacts
Condiciones climáticas ambientales
Air pressure
795 - 1080 hPa (operation)
Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
55 °C
Ambient storage temperature - min
-40 °C
Ambient storage temperature - max
70 °C
Climatic proofing
In accordance with IEC 60068-2
Operating temperature - min
-25 °C
Operating temperature - max
55 °C
Relative humidity
5 - 95 % (non-condensing, IEC/EN 60068-2-30)
Compatibilidad electromagnética
Air discharge
8 kV, according to IEC 61131-2, level 3, ESD
Burst impulse
1 kV, SmartWire-DT cable, according to IEC/EN 61131-2, Level 3
2 kV, Supply cable, according to IEC/EN 61131-2, Level 3
1 kV
2 kV, Supply cable, according to IEC/EN 61131-2, Level 3
1 kV
Contact discharge
4 kV, according to IEC/EN 61131-2, Level 2, ESD
Electromagnetic fields
10 V/m at 80 - 1000 MHz (according to IEC/EN 61131-2:2008)
1 V/m at 2.0 - 2.7 GHz (according to IEC/EN 61131-2:2008)
3 V/m at 1.4 - 2 GHz (according to IEC/EN 61131-2:2008)
1 V/m at 2.0 - 2.7 GHz (according to IEC/EN 61131-2:2008)
3 V/m at 1.4 - 2 GHz (according to IEC/EN 61131-2:2008)
Radiated RFI
10 V (IEC/EN 61131-2:2008, Level 3)
Radio interference class
Class A (EN 55011)
Surge rating
0.5 kV, Supply cable, Surge (IEC/EN 61131-2:2008, Level 1), EMC
Voltage dips
≤ 10 ms, Bridging voltage dips
Especificaciones eléctricas
Inrush current
44 A (for 2 ms)
Power loss
Normally 1 W
Rated control supply voltage
24 V DC (UPOW, -15 %/+20 %)
24 V DC (UAUX, -15 %/+20 %)
24 V DC (UAUX, -15 %/+20 %)
Rated operational current (Ie)
0.7 A
Rated operational voltage
Typically UAUX -0.2 V (for 24 V DC slaves)
14.5 V (± 3 % - SmartWire-DT)
14.5 V (± 3 % - SmartWire-DT)
Short-circuit protection
No, external fuse FAZ Z3, Supply voltage UAux
Yes, Short-circuit rating, SmartWire-DT supply voltage
Yes, Short-circuit rating, SmartWire-DT supply voltage
Supply current - max
0.7 mA
Supply voltage at AC, 50 Hz - min
0 V
Supply voltage at AC, 50 Hz - max
0 V
Supply voltage at DC - min
20.4 V
Supply voltage at DC - max
28.8 V
Comunicación
Connection
SmartWire-DT gateway for connecting up to 99 SmartWire-DT modules to an Industrial Ethernet network and for powering the SmartWire-DT modules and switchgear.
A connection to EtherCAT can be established using the integrated 100 Mbit/s Ethernet switch as slave.
SmartWire-DT blade terminal SWD4-8MF2
Used to connect the SmartWire-DT communication system to industrial field bus systems. Powers SmartWire-DT modules and switchgear
A connection to EtherCAT can be established using the integrated 100 Mbit/s Ethernet switch as slave.
SmartWire-DT blade terminal SWD4-8MF2
Used to connect the SmartWire-DT communication system to industrial field bus systems. Powers SmartWire-DT modules and switchgear
Connection type
Push in terminals, Supply voltage
2 x RJ45 (2-channel switch), Field bus interface
SWD: Plug, 8-pole
2 x RJ45 (2-channel switch), Field bus interface
SWD: Plug, 8-pole
Data transfer rate
800 Byte, Fieldbus interface, Input data, max.
100 MBit/s, Fieldbus interface
125 kBit/s, SmartWire-DT
250 kBit/s, SmartWire-DT
542 Byte, Fieldbus interface, Output data, max.
100 MBit/s, Fieldbus interface
125 kBit/s, SmartWire-DT
250 kBit/s, SmartWire-DT
542 Byte, Fieldbus interface, Output data, max.
Interfaces
Module type: EtherCAT slave
Status display fieldbus interface for APL, RUN, ERR, L/A with Multi colour LED
Status display fieldbus interface for APL, RUN, ERR, L/A with Multi colour LED
LED indicator
Status indication of SmartWire-DT master: Green and red LEDs
Status indication of SmartWire-DT network: Configurable green or red LED
Status indication of Supply voltage: LED
Status indication of SmartWire-DT network: Configurable green or red LED
Status indication of Supply voltage: LED
Number of modules
99 (SmartWire-DT)
Protocol
EtherCAT
Other bus systems
Other bus systems
Station
IP, Station address, Fieldbus interface
SmartWire-DT master, SmartWire-DT network
SmartWire-DT master, SmartWire-DT network
Seguridad
Explosion safety category for dust
None
Explosion safety category for gas
None
Potential isolation
Supply voltage UAUX: no
Between UPow and 15 V SmartWire-DT supply voltage: no
Between UPow and 15 V SmartWire-DT supply voltage: no
Protection against polarity reversal
Yes
Yes, for supply voltage (Siemens MPI optional)
Yes, for supply voltage (Siemens MPI optional)
Verificación del diseño
Equipment heat dissipation, current-dependent Pvid
4.4 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0 W
Rated operational current for specified heat dissipation (In)
0 A
Static heat dissipation, non-current-dependent Pvs
1 W
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Meets the product standard's requirements.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
| Característica | Valor |
|---|---|
| Tensión de alimentación 50 Hz CA (EF007532) | 0 V |
| Tensión de alimentación 60 Hz CA (EF007533) | 0 V |
| Tensión de alimentación CC (EF007534) | 20.4 V |
| Tipo de tensión de alimentación (EF002991) | CC |
| Número de interfaces HW CAN (EF017563) | 0 |
| Número de interfaces HW Ethernet industrial (EF003020) | 2 |
| Número de interfaces PROFINET (EF006932) | 0 |
| Número de interfaces HW RS232 (EF003021) | 0 |
| Número de interfaces HW RS422 (EF003022) | 0 |
| Número de interfaces HW RS485 (EF003023) | 0 |
| Número de interfaces HW en serie TTY (EF003024) | 0 |
| Número de interfaces HW USB (EF003025) | 1 |
| Número de interfaces HW en paralelo (EF003026) | 0 |
| Número de interfaces HW sin cables (EF006933) | 0 |
| Número de interfaces HW Otras (EF003027) | 0 |
| Soporta el protocolo EtherCAT (EF017564) | Sí |
| Soporta el protocolo TCP/IP (EF003050) | No |
| Soporta el protocolo PROFIBUS (EF003052) | No |
| Soporta el protocolo CAN (EF003053) | No |
| Soporta el protocolo INTERBUS (EF003054) | No |
| Soporta el protocolo ASI (EF003051) | No |
| Soporta protocolo KNX (EF003055) | No |
| Soporta el protocolo Modbus (EF003057) | No |
| Soporta el protocolo de autopista de datos (EF003058) | No |
| Soporta el protocolo DeviceNet (EF003059) | No |
| Soporta el protocolo SUCONET (EF003060) | No |
| Soporta el protocolo LON (EF003017) | No |
| Soporta el protocolo SERCOS (EF006657) | No |
| Soporta el protocolo PROFINET IO (EF007525) | No |
| Soporta el protocolo PROFINET CBA (EF007524) | No |
| Soporta el protocolo Foundation Fieldbus (EF007522) | No |
| Soporta el protocolo Ethernet/IP (EF007521) | No |
| Soporta el protocolo AS-Interface Safety at Work (EF007519) | No |
| Soporta el protocolo DeviceNet Safety (EF007520) | No |
| Soporta el protocolo de seguridad INTERBUS (EF006662) | No |
| Soporta el protocolo PROFIsafe (EF007526) | No |
| Soporta el protocolo SafetyBUS p (EF007527) | No |
| Soporta el protocolo para otros sistemas bus (EF003062) | Sí |
| Estándar inalámbrico Bluetooth (EF007178) | No |
| Estándar de radio WLAN 802.11 (EF007179) | No |
| Estándar de radio GPRS (EF008523) | No |
| Estándar de radio eGPRS (EF009703) | No |
| Estándar de radio GSM (EF008524) | No |
| Estándar de radio LTE (EF009709) | No |
| Estándar de radio UMTS (EF008525) | No |
| Maestro de enlace E/S (EF007298) | No |
| Componente del sistema (EF004118) | Sí |
| Grado de protección (IP) (EF005474) | IP20 |
| Con aislamiento galvánico (EF003272) | No |
| Conexión de bus de campo posible a través de un acoplador de bus separado (EF004002) | No |
| Montaje en carril posible (EF003972) | Sí |
| Montaje en pared/directo posible (EF007020) | Sí |
| Instalación frontal posible (EF007016) | No |
| Montaje en rack posible (EF007018) | No |
| Apto para funciones de seguridad (EF001597) | Sí |
| SIL según IEC 61508 (EF009889) | Ninguno |
| Nivel de rendimiento según EN ISO 13849-1 (EF007399) | Ninguno |
| Equipos asociados (Ex ia) (EF004141) | No |
| Equipos asociados (Ex ib) (EF004142) | No |
| Categoría de protección contra explosiones para gas (EF003997) | Ninguno |
| Categoría de protección contra explosiones para polvo (EF003998) | Ninguno |
| Certificado para áreas peligrosas UL clase I (EF017622) | No |
| Certificado para UL clase II (EF017625) | No |
| Certificado para áreas peligrosas UL Clase III (EF017627) | No |
| Certificado para áreas peligrosas UL División 1 (EF017628) | No |
| Certificado para áreas peligrosas UL División 2 (EF017629) | No |
| Certificado para áreas peligrosas grupo A (acetileno) (EF017632) | No |
| Certificado para áreas peligrosas grupo B (hidrógeno) (EF017633) | No |
| Certificado para áreas peligrosas grupo C (etileno) (EF017635) | No |
| Certificado para áreas peligrosas grupo D (propano) (EF017636) | No |
| Certificado para áreas peligrosas grupo E (polvos metálicos) (EF017637) | No |
| Certificado para áreas peligrosas grupo F (polvos carbonosos) (EF017638) | No |
| Certificado para áreas peligrosas grupo G (polvos no conductores) (EF017639) | No |
| Anchura (EF000008) | 35 mm |
| Altura (EF000040) | 90 mm |
| Profundidad (EF000049) | 127 mm |
Datasheet - PDF
▲| Título: | Tamaño: | Tipo: |
|---|---|---|
| PDF CATALOGO EATON AUTOMATIZACION ES.pdf | 19 Mbytes |
|
| PDF CATALOGUE EATON EN .pdf | 38 Mbytes |
|
Opiniones: (0) ▲
Ningún comentario por el momento.
Añadir comentario
ocultar
| Valoración: |
|
| Nombre: | |
| Email: | |
| Título: | |
| Opinión: | |
| ¿Recomienda la compra de este producto? | |
|
|
|
| Añadir comentario | |
Todas las valoraciones que recibimos de los artículos que ofrecemos son reales y están verificadas. Un pequeño gesto, pero de mucho valor. Por eso, te agradecemos ese minuto que inviertes en dejarnos tu opinión y calificación sobre los productos, porque nos ayuda a seguir mejorando y a ofrecerte un servicio de todavía mayor calidad.
