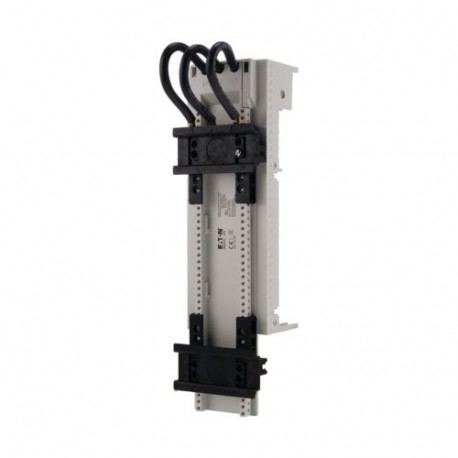

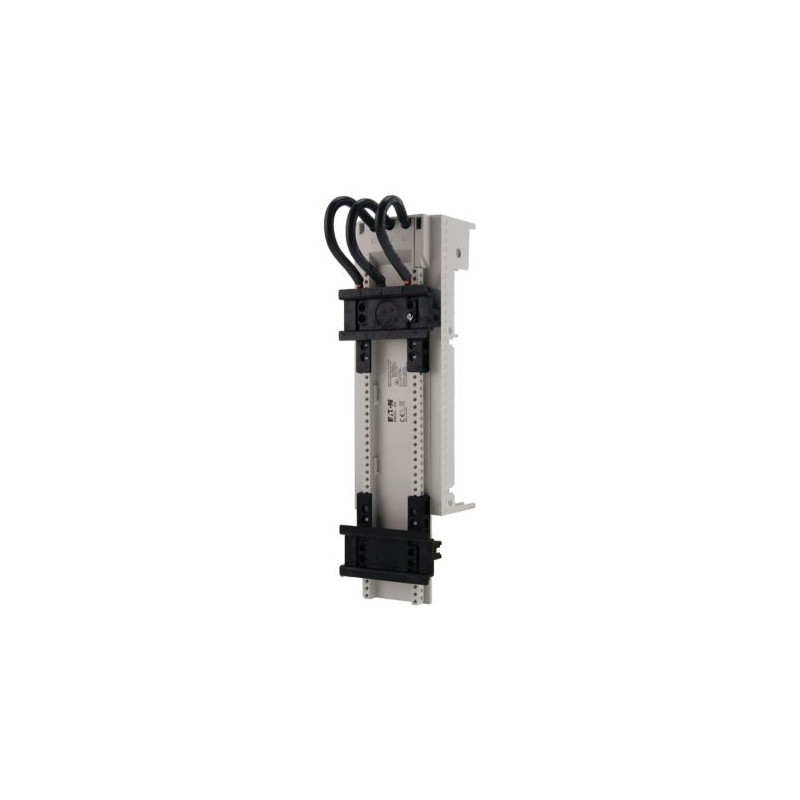

BBA2L-63 101480 Y7-101480 EATON ELECTRIC Adaptador de embarrado 72 mm 63 A 2TS Ver más grande
Las imágenes son sólo a título ilustrativo. Por favor, revise la ficha técnica.

BBA2L-63 101480 Y7-101480 EATON ELECTRIC Adaptador de embarrado 72 mm 63 A 2TS

BBA2L-63

101480

Y7-101480

EATON-MOELLER

2

Adaptador de embarrado, 72 mm, 63 A, 2TS

Eaton Moeller® series BBA Busbar adapter, 72 mm, 63 A, DIN rail: 2

Adaptador de barra colectora de 72 mm para sistema de barra colectora de 60 mm, dos rieles de montaje, tres cables prefabricados (AWG8/10 milímetro cuadrado) para la conexión del dispositivo de conmutación, se puede utilizar para el arrancador DOL con PKZ2 y el contactor DILM7 hasta DILM40, corriente nominal de funcionamiento: 63A

Más detalles


Componentes industriales de baja tensión > Adaptador de barra colectora

Interruptores Protectores de Motor

Producto nuevo en su embalaje original con todas las garantías y certificaciones de EATON-MOELLER

Precio total: $100.86
Precio unitario: $50.43
Este precio es por unidad y muestra el valor neto (no incluye impuestos indirectos si son aplicables).

Si nuestro precio no es el mejor solicítenos presupuesto Solicitar presupuesto

Más vendidos

▲

Más Información

▲


Especificaciones generales

Product Name
Eaton Moeller® series BBA Accessory Busbar adapter
Catalog Number
101480
EAN
4015081014002
Product Length/Depth
260 mm
Product Height
63 mm
Product Width
72 mm
Product Weight
0.423 kg
Certifications
CE
UL
UL 508A
UL Category Control No.: NMTR; NMTR7
IEC60439-1
UL File No.: E300273
CSA-C22.2 No. 14
Certified by UL for use in Canada
UL 508
Model Code
BBA2L-63

Delivery program

Type
Nominal current
63 A

Technical data - electrical

Voltage rating (UL CSA 13)
600 V AC, UL/CSA
Voltage rating at AC
690 V
Rated operation current (Ie)
63 A
Electric connection type
Round conductor

Technical data - mechanical

Mounting rail armament
2 mounting rails
Rail width
35 mm
Number of DIN rails
2
Busbar distance
60 mm
Busbar thickness - min
5 mm
Busbar thickness - max
10 mm
Adapter width
72 mm

Design verification as per IEC/EN 61439 - technical data

Equipment heat dissipation, current-dependent Pvid
6.9 W
Static heat dissipation, non-current-dependent Pvs
0 W
Heat dissipation per pole, current-dependent Pvid
0 W
Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
55 °C

Design verification as per IEC/EN 61439

10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.

Additional information

Special features
Terminal capacity: 10 mm² (AWG 8)

ETIM for 101480 Interruptores de baja tensión (EC001531)
Característica Valor
Montaje en carril (EF003700) 2 carriles de montaje
Ejecución de la conexión eléctrica (EF003961) Conductor redondo
Corriente nominal In (EF008250) 63 A
Espesor mínimo de la barra colectora (EF006536) 5 mm
Espesor máximo de las barras colectoras (EF003702) 10 mm
Anchura de adaptador (EF003703) 72 mm
Anchura del carril (EF003704) 35 mm
Espaciamiento de carril (EF002638) 60 mm

Datasheet - PDF

▲
Título: Tamaño: Tipo:
PDF CATALOGO EATON CONTROL Y AUTOMATIZACION ES.pdf 9 Mbytes
PDF CATALOGUE EATON EN .pdf 38 Mbytes
BBA2L-63 Y7-101480 101480 BBA2L-63_ES.pdf 195 Kbytes BBA2L-63 Y7-101480 101480 BBA2L-63_ES.pdf
BBA2L-63 Y7-101480 101480 DE_103005.pdf 2 Mbytes BBA2L-63 Y7-101480 101480 BBA2L-63_ES.pdf
