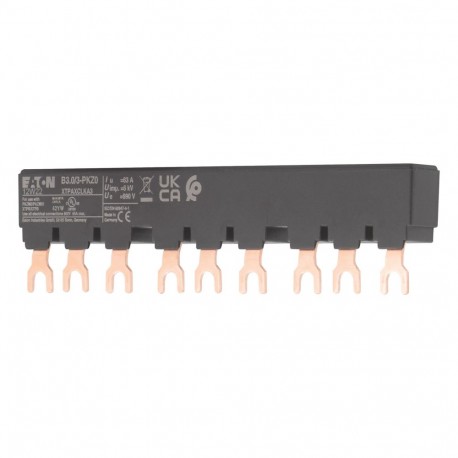

B3.0/3-PKZ0 232289 Y7-232289 EATON ELECTRIC Peine de conexión trifásico Para 3 PKZ0

B3.0/3-PKZ0

232289

Y7-232289

EATON-MOELLER

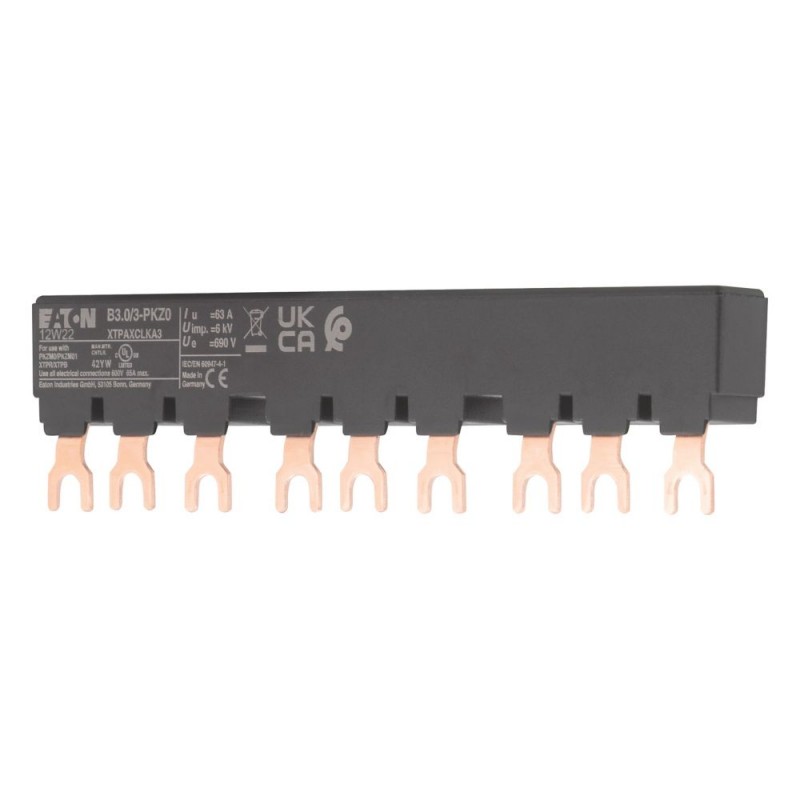

Peine de conexión trifásico, Para 3 PKZ0

Eaton Moeller® series B3 Three-phase busbar link, Circuit-breaker: 3, 135 mm, For PKZM0-... or PKE12, PKE32 without side mounted auxiliary contacts or voltage releases

Enlace de barra colectora trifásico, unidad de entrada a través de los terminales 1,3,5 protección contra el contacto directo., a prueba de cortocircuitos, ampliable mediante instalación giratoria, para la alimentación paralela de múltiples interruptores automáticos de protección del motor

Más detalles


Componentes industriales de baja tensión > Barra de fase

Interruptores Protectores de Motor

Producto nuevo en su embalaje original con todas las garantías y certificaciones de EATON-MOELLER

Precio total: $16.85
Precio unitario: $16.85
Este precio es por unidad y muestra el valor neto (no incluye impuestos indirectos si son aplicables).

Si nuestro precio no es el mejor solicítenos presupuesto Solicitar presupuesto

productos relacionados

Comprados juntos habitualmente

Más vendidos

Más Información



Especificaciones generales

Product Name
Eaton Moeller® series B3 Accessory Three-phase busbar link
Catalog Number
232289
EAN
4015082322892
Product Length/Depth
135 mm
Product Height
34 mm
Product Width
12 mm
Product Weight
0.058 kg
Certifications
UL 508
CSA File No.: 98494
UL Category Control No.: NLRV
CE
UL File No.: E36332
IEC/EN 60947-4-1
UL
CSA
CSA-C22.2 No. 14
CSA Class No.: 3211-06
Catalog Notes
For parallel power feed to several motor-protective circuit-breakers on terminals 1, 3, 5
Model Code
B3.0/3-PKZ0

Características y Funciones

Color
Black
Features
Insulated
Functions
Can be extended by rotating installation
Number of phases
3
Number of poles
Three-pole

General

Mounting width
45 mm
Overvoltage category
III
Pollution degree
3
Product category
Accessories
Rated impulse withstand voltage (Uimp)
6000 V AC
Suitable for
3 Circuit-breakers
Used with
PKZ0
PKE12
PKE32

Condiciones climáticas ambientales

Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
55 °C

Especificaciones eléctricas

Rated operational voltage (Ue) - max
690 V
Rated operational voltage (Ue) at AC - max
690 V
Rated uninterrupted current (Iu)
63 A

Clasificación de cortocircuito

Rated conditional short-circuit current (Iq)
0 kA
Rated short-time withstand current (Icw)
0 kA

Verificación del diseño

Equipment heat dissipation, current-dependent Pvid
4.5 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
1.5 W
Rated operational current for specified heat dissipation (In)
63 A
Static heat dissipation, non-current-dependent Pvs
0 W
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.

ETIM for 232289 Interruptores de baja tensión (EC000215)
Característica Valor
Número de fases (EF000351) 3
Número de polos (EF001391) 3
Apto para varios dispositivos (EF007241) 3
Medida de división (EF007504) 45 mm
Sección (EF000649) 0 mm²
Longitud (EF001438) 135 mm
Puede ser cortado a medida (EF015250) No
Ancho en número de espacios modulares (EF002950) 7.5
Intensidad nominal permanente Iu (EF001389) 63 A
Ejecución de la conexión eléctrica (EF003961) Tenedor
Aislado (EF000019)
Picos de tensión nominal (EF002993) 6 kV
Corriente nominal de cortocircuito condicional Iq (EF001444) 0 kA
Tensión de servicio nominal máxima Ue (EF007357) 690 V
Resistencia de corriente nominal de corta duración Icw (EF007050) 0 kA
Apto para dispositivos con conductor neutro (EF007218) No
Apto para dispositivos con interruptor auxiliar (EF007217) No
Color (EF000007) Negro
