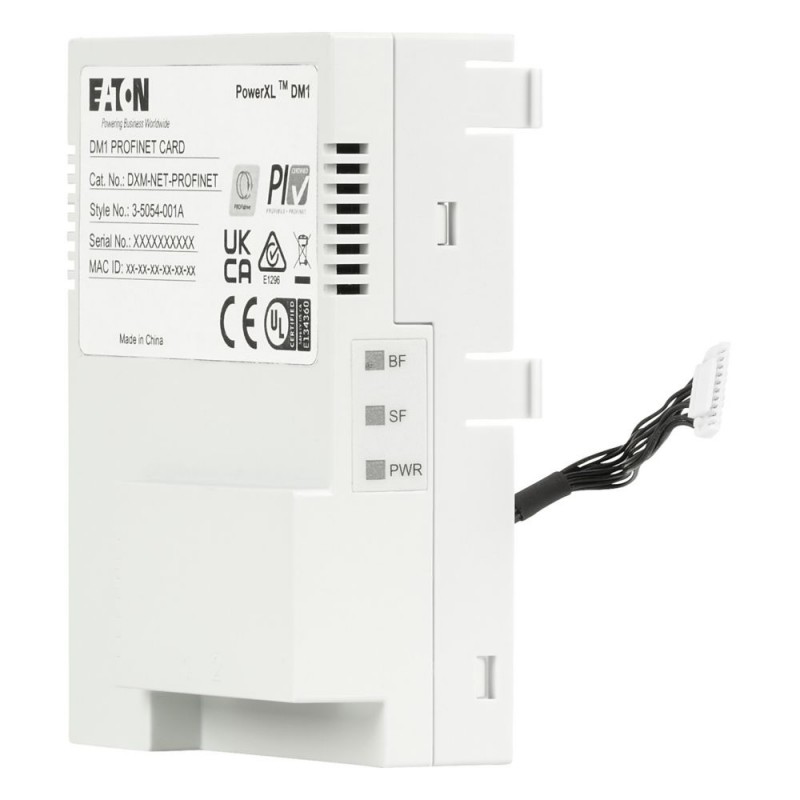

EATON - MOELLER series DXM-NET-PROFINET EP-400004 Y7-400004 - Imagen 1

Las imágenes son sólo a título ilustrativo. Por favor, revise la ficha técnica.

DXM-NET-PROFINET EP-400004 Y7-400004 EATON ELECTRIC Módulo comunicación Profinet para DM1

Referencia: DXM-NET-PROFINET

Código: EP-400004

Número de catálogo: Y7-400004

Fabricante: EATON - MOELLER series

Descripción:

Módulo comunicación Profinet para DM1
PROFINET communication module for DM1 variable frequency drives
Módulo de bus de campo, Protocolo de bus: PROFINET, Descripción: 2 x RJ45, 8 polos, Para usar con: DM1, Técnica de conexión: Módulo enchufable (frontal)

Categorías:

  • Componentes industriales de baja tensión > Accesorios para reguladores de frecuencia
  • EATON - MOELLER series > Convertidores de Frecuencia Power XL

Producto nuevo en su embalaje original con todas las garantías y certificaciones de EATON - MOELLER SERIES

  • Más Información
  • ETIM
  • PDF
  • Opiniones
Garantía, reparación y devolución.

Precio unitario: 229,81 €

Este precio es por unidad y muestra el valor neto (no incluye impuestos indirectos si son aplicables).

Calcule su precio por cantidad

CantidadPrecio

Plazo estándar: 5 días.

  • Estos plazos son una estimación y podrían variar una vez tramitado el pedido del artículo.

VISTOS ANTERIORMENTE

MÁS INFORMACIÓN

Especificaciones generales

Product Name
Eaton DXM Communication module
Catalog Number
EP-400004
EAN
4015081998258
Product Length/Depth
110.4 mm
Product Height
43.5 mm
Product Width
83.4 mm
Product Weight
0.133 kg
Certifications
CE
Model Code
DXM-NET-PROFINET

Product specifications

Product Category
Accessories
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
Used with
DM1
Accessory/spare part type
Communication module
Connection type
Plug-in connection
2 x RJ45, 8 pole
Degree of protection
IP20
Protocol
PROFINET

ETIM for EP-400004 Interruptores de baja tensión (EC002025)

CaracterísticaTipo de accesorio/repuesto (EF000215)
ValorMódulo de comunicación
CaracterísticaAccesorio (EF013236)
ValorSí
CaracterísticaRecambio (EF013237)
ValorNo
