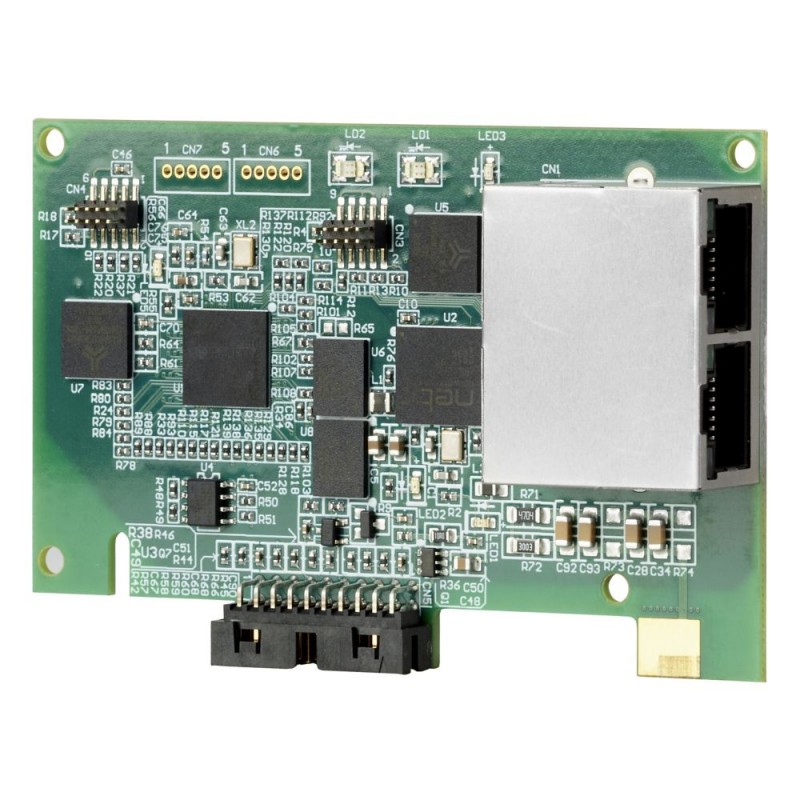

DXG-NET-PROFINET EP-400003 EATON ELECTRIC Módulo comunicación Profinet para DG1
DXG-NET-PROFINET
EP-400003
EATON-MOELLER
Módulo comunicación Profinet para DG1
PROFINET communication module for DG1 variable frequency drives
Convertidores de Frecuencia Power XL
* Producto nuevo en su embalaje original con todas las garantías y certificaciones de EATON-MOELLER
Más vendidos
▲Más Información
▲Especificaciones generales
Product Name
Eaton DXG Communication module
Catalog Number
EP-400003
EAN
4015081998241
Product Length/Depth
86 mm
Product Height
18 mm
Product Width
56.3 mm
Product Weight
0.033 kg
Certifications
CE
Model Code
DXG-NET-PROFINET
Product specifications
Product Category
Accessories
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
Used with
DG1
Accessory/spare part type
Communication module
Connection type
Plug-in connection
2 x RJ45, 8 pole
2 x RJ45, 8 pole
Degree of protection
IP00
Protocol
PROFINET
Datasheet - PDF
▲| Título: | Tamaño: | Tipo: |
|---|---|---|
| PDF CATALOGO EATON CONTROL Y AUTOMATIZACION ES.pdf | 9 Mbytes |
|
| PDF CATALOGUE EATON EN.pdf | 51 Mbytes |
|
| DXG-NET-PROFINET EP-400003 ES_EP-400003.pdf | 5 Mbytes |
|
