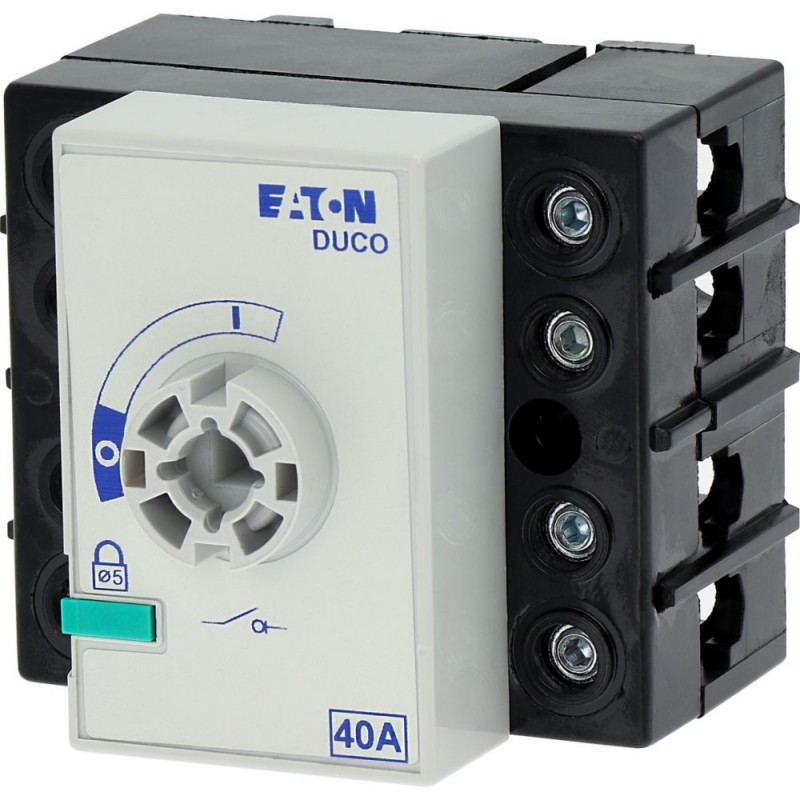

DCM-40/4 1314110 Y8-1314110 EATON ELECTRIC DUCO DCM 40/4
DCM-40/4
1314110
Y8-1314110
EATON-MOELLER
Interruptor seccionador, 4P, 40 A, Con maneta rotativa negra y eje
Eaton DCM Switch-disconnector, DCM, 40 A, 4 pole, With black rotary handle and drive shaft, Vertical connection
Interruptor-seccionador, Gama de productos: Interruptor-seccionador, Interruptor principal, Interruptor de mantenimiento, Referencia de grupo de piezas: DCM, Con mango giratorio negro y eje de transmisión, 4 polos, Notas: 1 candado, 5 mm, Dispositivo de bloqueo: Bloqueable en la posición 0 (Apagado), Grado de protección: IP20, Diseño: montaje en superficie, Potencia del motor AC-23A, 50 - 60 Hz 400 V: P = 20 kW, Corriente nominal ininterrumpida: Iu = 40 A, Técnica de conexión: Conexión vertical, Normas: IEC/EN 60947, VDE 0660, IEC/EN 60204, Interruptor-seccionador según IEC/EN 60947-3
Componentes industriales de baja tensión > Seccionador
Interruptores seccionadores DUMECO
Producto nuevo en su embalaje original con todas las garantías y certificaciones de EATON-MOELLER
Más vendidos
▲Más Información
▲Especificaciones generales
Product Name
Eaton DCM Switch-disconnector
Catalog Number
1314110
EAN
8711426813595
Product Length/Depth
146 mm
Product Height
74 mm
Product Width
84 mm
Product Weight
0.48 kg
Certifications
IEC/EN 60947
IEC/EN 60204
IEC/EN 60947-3
VDE 0660
KEMA
CE
EAC
RoHS
Lloyds
IEC/EN 60204
IEC/EN 60947-3
VDE 0660
KEMA
CE
EAC
RoHS
Lloyds
Model Code
DCM-40/4
Product specifications
Product Category
Actuator color
Black
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
Fitted with:
Black rotary handle and drive shaft
Pollution degree
3
Rated impulse withstand voltage (Uimp)
6000 V
Rated permanent current at AC-21, 400 V
40 A
Rated permanent current at AC-23, 400 V
40 A
Rated uninterrupted current (Iu)
40 A
Static heat dissipation, non-current-dependent Pvs
0 W
Stripping length (main cable)
14 mm
Switching power at 400 V
20 kW
Device construction
Built-in device fixed built-in technique
Rated short-time withstand current (Icw)
1 kA, Contacts, 1 second
1 kA
1 kA
Electrical connection type of main circuit
Screw connection
Mounting position
As required
Actuator type
Short thumb-grip
Ambient operating temperature - max
55 °C
Ambient operating temperature - min
-25 °C
Ambient storage temperature - max
80 °C
Ambient storage temperature - min
-30 °C
Equipment heat dissipation, current-dependent Pvid
0.5 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
3 W
Number of auxiliary contacts (change-over contacts)
0
Number of auxiliary contacts (normally closed contacts)
0
Rated conditional short-circuit current (Iq)
50 kA
Overvoltage category
III
Breaking current
7 kA
Degree of protection (front side)
IP20
Number of poles
Four-pole
Connection type
Vertical
Mounting method
Surface mounting
Degree of protection
NEMA Other
Suitable for
Distribution board installation
Ground mounting
Ground mounting
Locking facility
Lockable in the 0 (Off) position
Number of switches
1
Lifespan, mechanical
10,000 Operations
Let-through energy
Max. 12 kA²s
Terminal capacity
1.5 - 25 mm², flexible
2.5 - 16 mm², solid
2.5 - 16 mm², solid
Safety parameter (EN ISO 13849-1)
B10d values as per EN ISO 13849-1, table C.1
Number of auxiliary contacts (normally open contacts)
0
Rated breaking capacity at 400/415 V (cos phi to IEC 60947-3)
320 A
Rated insulation voltage (Ui)
690 V
Rated operating voltage (Ue) - max
415 V
Rated operating voltage (Ue) - min
415 V
Rated operational voltage (Ue) at AC - max
415 V
Rated operational current (Ie) at AC-21, 400 V, 415 V
40 A
Rated short-circuit making capacity (Icm)
2.2 kAeff
Short-circuit protection rating
50, Fuse, Contacts
Rated operational current (Ie) at AC-22, 380 V, 400 V, 415 V
40 A
Rated operational current (Ie) at AC-23A, 400 V, 415 V
40 A
Rated operational current for specified heat dissipation (In)
40 A
Rated operational power at AC-23A, 400 V, 50 Hz
20 kW
Rated operational power at AC-3, 380/400 V, 50 Hz
0 kW
Uninterrupted current
Rated uninterrupted current Iu is specified for max. cross-section.
Width in number of modular spacings
4
| Característica | Valor |
|---|---|
| Ejecución como interruptor principal (EF006981) | No |
| Ejecución como interruptor de mantenimiento/reparación (EF006986) | No |
| Ejecución como interruptor de seguridad (EF006985) | No |
| Ejecución como dispositivo de parada de emergencia (EF006959) | No |
| Ejecución como conmutador-inversor (EF009408) | No |
| Número de interruptores (EF005586) | 1 |
| Tensión de funcionamiento nominal máxima Ue CA (EF007355) | 415 V |
| Tensión nominal de funcionamiento (EF001435) | 415 V |
| Intensidad nominal permanente Iu (EF001389) | 40 A |
| Corriente permanente asignada a AC-23, 400 V (EF011777) | 40 A |
| Corriente permanente asignada con AC-21, 400 V (EF009165) | 40 A |
| Potencia de funcionamiento nominal en CA-3, 400 V (EF001364) | 0 kW |
| Resistencia de corriente nominal de corta duración Icw (EF007050) | 1 kA |
| Potencia de funcionamiento nominal a 400 V CA-23 (EF007027) | 20 kW |
| Poder de corte a 400 V (EF009166) | 20 kW |
| Corriente nominal de cortocircuito condicional Iq (EF001444) | 50 kA |
| Número de polos (EF001391) | 4 |
| Número de contactos auxiliares normalmente cerrados (EF001377) | 0 |
| Número de contactos auxiliares normalmente abiertos (EF001376) | 0 |
| Número de contactos auxiliares como contacto de cambio (EF003531) | 0 |
| Accionamiento motorizado opcional (EF007386) | No |
| Accionamiento motorizado integrado (EF006697) | No |
| Liberación de tensión opcional (EF007491) | No |
| Construcción del dispositivo (EF008240) | Técnica integrada fija para dispositivo integrado |
| Apto para montaje frontal de 4 orificios (EF007247) | No |
| Apto para montaje frontal central (EF007248) | No |
| Apto para la instalación del distribuidor (EF007262) | Sí |
| Apto para montaje intermedio (EF007264) | No |
| Color del elemento de accionamiento (EF007167) | Negro |
| Ejecución del elemento accionador (EF006976) | Mango giratorio corto |
| Interbloqueable (EF006281) | No |
| Tipo de conexión del circuito de corriente principal (EF006819) | Conexión roscada |
| Con cableado premontado (EF016444) | No |
| Grado de protección (IP), frontal (EF003118) | IP20 |
| Grado de protección (NEMA) (EF011959) | Otros |
| Anchura (EF000008) | 84 mm |
| Altura (EF000040) | 74 mm |
| Profundidad (EF000049) | 146 mm |
| Ancho en número de espacios modulares (EF002950) | 4 |
