> >>DHR9 191845 ELECTRIC Maneta corta Negra
Anterior producto Siguiente producto

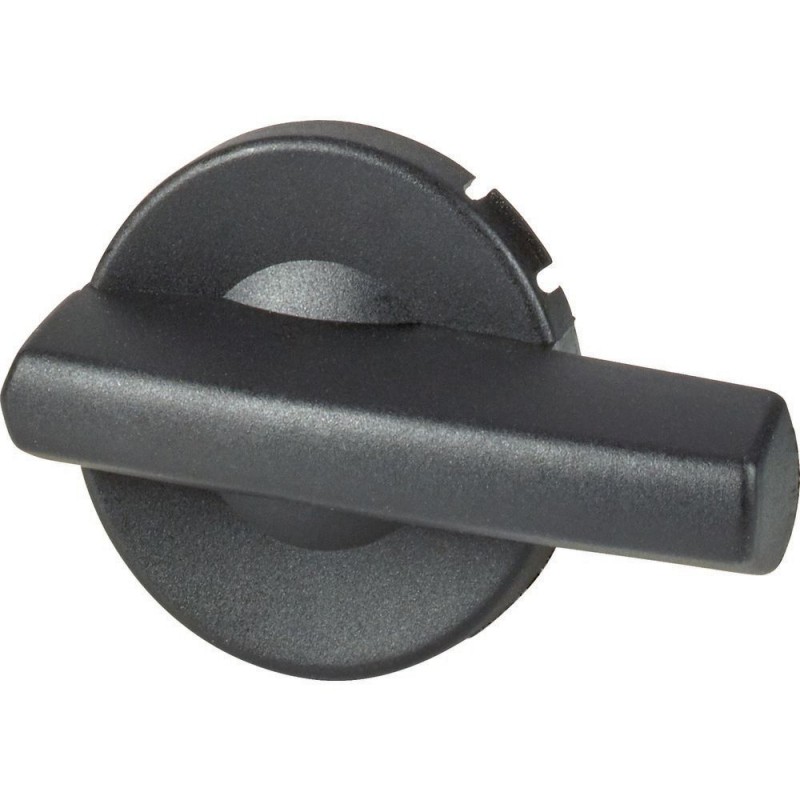

DHR9 191845 EATON ELECTRIC Maneta corta Negra Ver más grande
Las imágenes son sólo a título ilustrativo. Por favor, revise la ficha técnica.

DHR9 191845 EATON ELECTRIC Maneta corta Negra

DHR9

191845

EATON-MOELLER

Maneta corta; Negra

Eaton Moeller® series R9 Thumb-grip, black

Más detalles


Interruptores de baja tensión > Maneta para dispositivos de conmutación

Interruptores Seccionadores y de Levas

* Producto nuevo en su embalaje original con todas las garantías y certificaciones de EATON-MOELLER

Precio total: $13.06
Precio unitario: $13.06

*Este precio es por unidad y muestra el valor neto (no incluye impuestos indirectos si son aplicables).

Si nuestro precio no es el mejor solicítenos presupuesto Solicitar presupuesto

Más Información

▲


Especificaciones generales

Product Name
Eaton Moeller® series R9 Accessory Thumb-grip
Catalog Number
191845
EAN
4015081923663
Product Length/Depth
35 mm
Product Height
35 mm
Product Width
35 mm
Product Weight
0.03 kg
Compliances
CE
Model Code
DHR9

Product specifications

Type
Thumb-grip
10.10 Temperature rise
Not applicable.
10.11 Short-circuit rating
Not applicable.
10.12 Electromagnetic compatibility
Not applicable.
10.13 Mechanical function
Not applicable.
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
Color
Black
Ambient operating temperature - max
50 °C
Ambient operating temperature - min
-25 °C
Equipment heat dissipation, current-dependent Pvid
0 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0 W
Rated operational current for specified heat dissipation (In)
0 A
Static heat dissipation, non-current-dependent Pvs
0 W
Degree of protection
NEMA Other
Suitable for
Switch disconnector

Datasheet - PDF

▲
Título: Tamaño: Tipo:
PDF CATALOGO EATON CONTROL Y AUTOMATIZACION ES.pdf 9 Mbytes
DHR9 191845 ES_191845.pdf 2 Mbytes DHR9 191845 ES_191845.pdf
