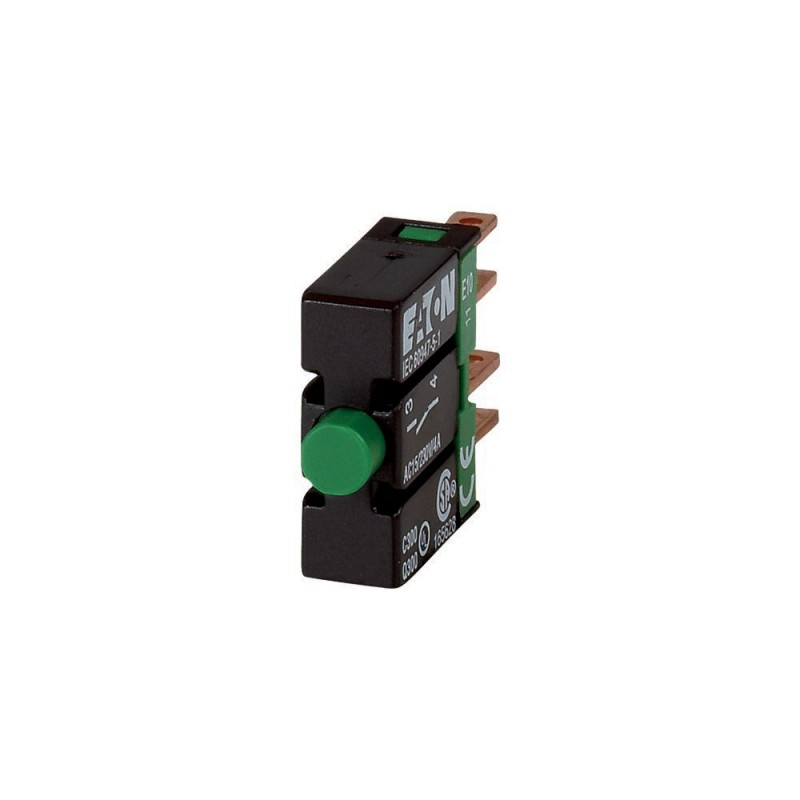

E10 090351 Y7-90351 EATON ELECTRIC Elemento de contacto 1 NO Montaje frontal Conexión a tornillo Para Ver más grande
Las imágenes son sólo a título ilustrativo. Por favor, revise la ficha técnica.

E10 090351 Y7-90351 EATON ELECTRIC Elemento de contacto 1 NO Montaje frontal Conexión a tornillo Para

E10

090351

Y7-90351

EATON-MOELLER

50

Elemento de contacto, 1 NO, Montaje frontal, Conexión a tornillo, Para

Eaton Moeller® series E10 Accessory Contact element, 1 N/O, Front fastening, Blade terminal

Elemento de contacto, Gama de productos: Accesorios, Unidad individual, Técnica de conexión: Terminal de cuchilla, Descripción: Tensión de servicio admisible: 5 – 250 V, Contactos N/O = Normalmente abierto: 1 N/O, Grado de protección: IP20 con ISH2,8, Conexión a SmartWire-DT: no

Más detalles


Componentes industriales de baja tensión > Bloque de contactos auxiliares

Auxiliares de mando y señalización

Producto nuevo en su embalaje original con todas las garantías y certificaciones de EATON-MOELLER

Precio total: $264.81
Precio unitario: $5.30
Este precio es por unidad y muestra el valor neto (no incluye impuestos indirectos si son aplicables).

Si nuestro precio no es el mejor solicítenos presupuesto Solicitar presupuesto

productos relacionados

▲

Comprados juntos habitualmente

▲

Más vendidos

▲

Más Información

▲


Especificaciones generales

Product Name
Eaton Moeller® series E10 Accessory Contact element
Catalog Number
090351
EAN
4015080903512
Product Length/Depth
6 mm
Product Height
29 mm
Product Width
18 mm
Product Weight
0.003 kg
Certifications
CE
UL Category Control No.: NKCR
UL
CSA-C22.2 No. 14-05
IEC/EN 60947
UL 508
UL File No.: E29184
CSA
CSA Class No.: 3211-03
CSA File No.: 46552
IEC/EN 60947-5
Model Code
E10

Features & Functions

Electric connection type
Screw connection

General

Degree of protection
IP20, with Insulated ferrule ISH2,8
Lifespan, mechanical
100,000,000 Operations
Model
Top mounting
Mounting method
Front fastening
Operating frequency
3600 Operations/h
Overvoltage category
III
Pollution degree
3
Product category
Accessories
Rated impulse withstand voltage (Uimp)
4000 V AC
Terminal capacity
0.5 - 1.0 mm²
Terminal size
2.8 x 0.8 mm to DIN 46247 and IEC 60760, Fast-on connectors
2.8 x 0.8 mm to DIN 46244, Blade terminal

Ambient conditions, mechanical

Mounting position
As required
Shock resistance
40 g, Mechanical, According to IEC/EN 60068-2-27, Sinusoidal shock 11 ms
Mechanical, According to IEC/EN 60068-2-27

Climatic environmental conditions

Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
60 °C
Ambient operating temperature (enclosed) - min
-25 °C
Ambient operating temperature (enclosed) - max
40 °C
Climatic proofing
Damp heat, constant, to IEC 60068-2-78
Damp heat, cyclic, to IEC 60068-2-30

Electrical rating

Rated insulation voltage (Ui)
250 V
Rated operational current (Ie)
4 A at AC-15, 110 V
4 A at AC-15, 48 V
Rated operational current (Ie) at AC-15, 24 V
4 A
Rated operational current (Ie) at AC-15, 220 V, 230 V, 240 V
6 A
Rated operational current (Ie) at DC-13, 24 V
1.5 A
Rated operational current (Ie) at DC-13, 42 V
1 A
Rated operational current (Ie) at DC-13, 60 V
0.8 A
Rated operational current (Ie) at DC-13, 110 V
0.5 A
Rated operational current (Ie) at DC-13, 220 V, 230 V
0.2 A
Rated operational voltage (Ue) at AC - max
250 V
Short-circuit protection
FAZ-B6/1, Fuseless
Short-circuit protection rating
Max. 10 A gG/gL, Fuse, Contacts

Actuator

Actuating force - max
3 N

Communication

Connection to SmartWire-DT
No
Connection type
Blade terminal

Design verification

Equipment heat dissipation, current-dependent Pvid
0 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0.1 W
Rated operational current for specified heat dissipation (In)
4 A
Static heat dissipation, non-current-dependent Pvs
0 W
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.

ETIM for 090351 Interruptores de baja tensión (EC000041)
Característica Valor
Número de contactos inversores (EF008257) 0
Número de contactos normalmente abiertos (EF008256) 1
Número de contactos normalmente cerrados (EF008255) 0
Número de interruptores de señal de error (EF007613) 0
Corriente de funcionamiento nominal Ie a CA-15, 230 V (EF001385) 6 A
Ejecución de la conexión eléctrica (EF003961) Conexión roscada
Modelo (EF000010) Montaje superior
Método de montaje (EF000003) Fijación delantera
Portalámparas (EF000048) Ninguno

Datasheet - PDF

▲
Título: Tamaño: Tipo:
PDF CATALOGO EATON CONTROL Y AUTOMATIZACION ES.pdf 9 Mbytes
PDF CATALOGUE EATON EN .pdf 38 Mbytes
E10 Y7-90351 090351 EN_025434.pdf 1 Mbytes E10 Y7-90351 090351 EN_025434.pdf
