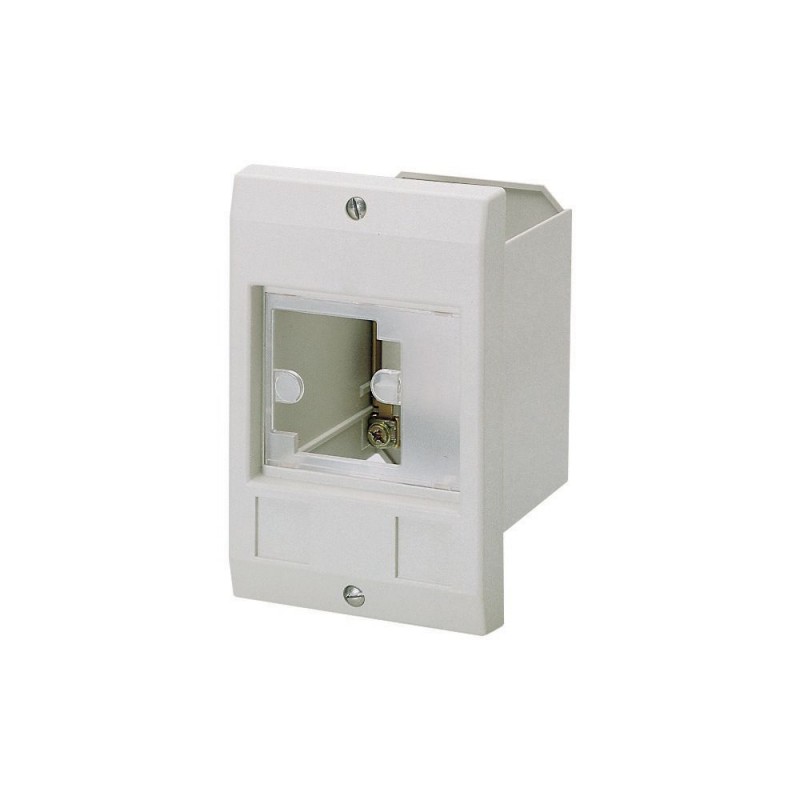

EATON - MOELLER series E-PKZ0 072906 Y7-72906 - Imagen 1

Las imágenes son sólo a título ilustrativo. Por favor, revise la ficha técnica.

E-PKZ0 072906 Y7-72906 EATON ELECTRIC Caja aislante de empotrar IP40 Para PKZ0 + abertura de 45 mm

Referencia: E-PKZ0

Código: 072906

Número de catálogo: Y7-72906

Fabricante: EATON - MOELLER series

Descripción:

Caja aislante de empotrar, IP40, Para PKZ0, + abertura de 45 mm
Eaton Moeller® series E-PKZ0 Insulated enclosure, E-PKZ0, H x W x D = 129 x 85 x 96 mm, flush-mounted, cutout with standard dimension, IP41
Caja aislada para montaje empotrado, para PKZM0, cubierta con apertura dimensionada para alojar la parte delantera del interruptor, grado de protección IP40 terminal integrado para conexión PE(N).

Categorías:

  • Componentes industriales de baja tensión > Carcasa vacía para aparamenta
  • EATON - MOELLER series > Interruptores Protectores de Motor

Producto nuevo en su embalaje original con todas las garantías y certificaciones de EATON - MOELLER SERIES

  • Más Información
  • ETIM
  • PDF
  • Opiniones
Garantía, reparación y devolución.

Precio unitario: 10,69 €

Este precio es por unidad y muestra el valor neto (no incluye impuestos indirectos si son aplicables).

Calcule su precio por cantidad

CantidadPrecio

Plazo estándar: 5 días.

  • Estos plazos son una estimación y podrían variar una vez tramitado el pedido del artículo.

VISTOS ANTERIORMENTE

MÁS INFORMACIÓN

Especificaciones generales

Product Name
Eaton Moeller® series E-PKZ0 Accessory Insulated enclosure
Catalog Number
072906
EAN
4015080729068
Product Length/Depth
96 mm
Product Height
129 mm
Product Width
85 mm
Product Weight
0.16 kg
Certifications
CE
UL Category Control No.: NLRV
CSA-C22.2 No. 14
CSA
CSA File No.: 165628
IEC/EN 60947-4-1
UL
CSA Class No.: 3211-05
UL File No.: E36332
UL 508
Model Code
E-PKZ0

Características y Funciones

Enclosure material
Plastic
Fitted with:
Cover with aperture dimensioned to accommodate front of breaker
PE(N) terminal

General

Degree of protection (front side)
IP40
Model
Built-in
Product category
Accessories

Condiciones climáticas ambientales

Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
40 °C

Verificación del diseño

Equipment heat dissipation, current-dependent Pvid
0 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0 W
Rated operational current for specified heat dissipation (In)
0 A
Static heat dissipation, non-current-dependent Pvs
0 W
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Please enquire
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.

ETIM for 072906 Interruptores de baja tensión (EC000712)

CaracterísticaMaterial de carcasa (EF001596)
ValorPlástico
CaracterísticaAnchura (EF000008)
Valor85 mm
CaracterísticaAltura (EF000040)
Valor129 mm
CaracterísticaProfundidad (EF000049)
Valor96 mm
CaracterísticaCon tapa transparente (EF001094)
ValorNo
CaracterísticaApto para parada de emergencia (EF001433)
ValorNo
CaracterísticaModelo (EF000010)
ValorInstalación
CaracterísticaGrado de protección (IP) (EF005474)
ValorIP40
CaracterísticaGrado de protección (NEMA) (EF011959)
ValorOtros
