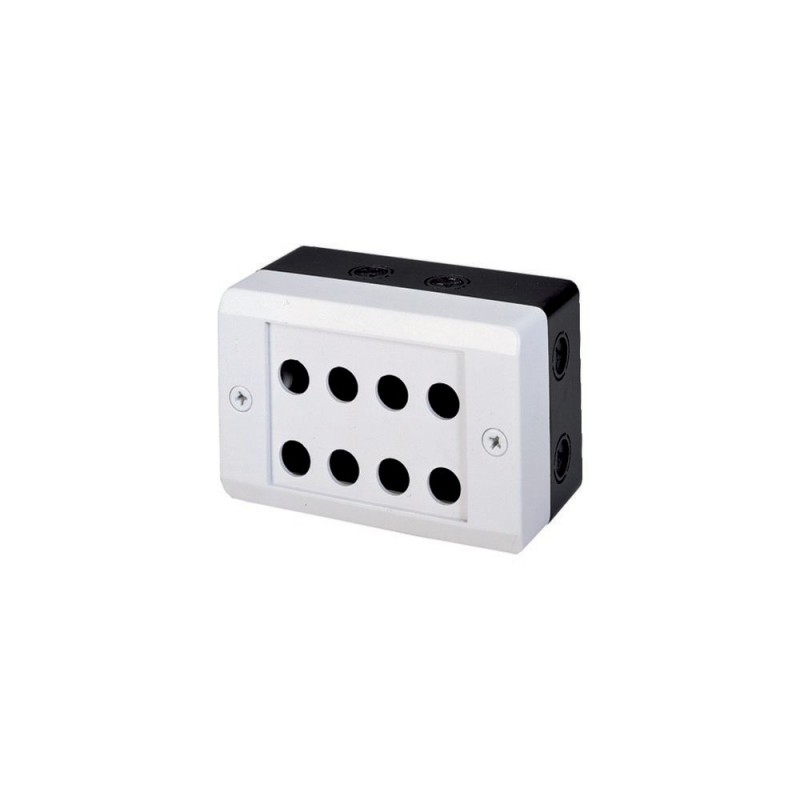

I8 046299 EATON ELECTRIC Surface mounting enclosure 8 mounting locations Ver más grande
Las imágenes son sólo a título ilustrativo. Por favor, revise la ficha técnica.

I8 046299 EATON ELECTRIC Surface mounting enclosure 8 mounting locations

I8

046299

EATON-MOELLER

Surface mounting enclosure; 8 mounting locations

Eaton Moeller® series RMQ16 Surface mounting enclosure, 8 mounting locations

Más detalles


Interruptores de baja tensión > Carcasa para dispositivos de mando y señalización

Auxiliares de mando y señalización

* Producto nuevo en su embalaje original con todas las garantías y certificaciones de EATON-MOELLER

Precio total: $59.19
Precio unitario: $59.19

Cantidad Precio
1+$59.19
2+$53.46
3+$49.06
4+$46.58
6+$45.38
*Este precio es por unidad y muestra el valor neto (no incluye impuestos indirectos si son aplicables).

Si nuestro precio no es el mejor solicítenos presupuesto Solicitar presupuesto

Más vendidos

Más Información



Especificaciones generales

Product Name
Eaton Moeller® series RMQ16 Accessory Surface mounting enclosure
Catalog Number
046299
EAN
4015080462996
Product Length/Depth
100 mm
Product Height
75 mm
Product Width
153 mm
Product Weight
0.335 kg
Certifications
UL Category Control No.: NKCR
UL
CSA Class No.: 3211-03
UL File No.: E29184
CSA
CSA-C22.2 No. 14-05
UL 508
CE
IEC/EN 60947-5
CSA File No.: 46552
Model Code
I8

Features & Functions

Enclosure color
Gray
Enclosure material
Plastic
Fitted with:
Molded cover fixing screws
Functions
For conventional wiring
Knockouts
4 x M20 (cable entry knockouts at the bottom)
7 x M20 (cable entry knockouts at the side)
Number of locations
8

General

Degree of protection
NEMA 1
IP65
Opening diameter
16 mm

Climatic environmental conditions

Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
60 °C

Communication

Connection to SmartWire-DT
No

Design verification

Static heat dissipation, non-current-dependent Pvs
0 W
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Please enquire
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.

Datasheet - PDF
