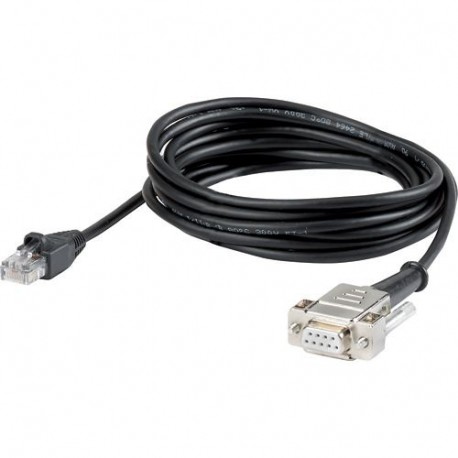

EU4A-RJ45-CAB1 106726 0004519606 EATON ELECTRIC Cable de programación para EC4P XC100 XC200 2m
EU4A-RJ45-CAB1
106726
0004519606
EATON-MOELLER
Cable de programación para EC4P; XC100; XC200; 2m
Cable de programación, serie, EC4P, XC100/200, RJ45, sub-D 9 polos, 2 m
Controladores industriales (PLC) > Cable conexión de PLC
Autómatas Programables EC4P
Producto nuevo en su embalaje original con todas las garantías y certificaciones de EATON-MOELLER
Más vendidos
▲Más Información
▲Especificaciones generales
Product Name
Eaton EU4A Accessory Programming cable
Catalog Number
106726
EAN
4015081064939
Product Length/Depth
220 mm
Product Height
25 mm
Product Width
160 mm
Product Weight
0.15 kg
Certifications
Request filed for UL and CSA
Model Code
EU4A-RJ45-CAB1
Product specifications
Used with
XC200
XC100
XC121
XC100
XC121
Accessories
Programming accessories
Number of Poles
Nine-pole
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Meets the product standard's requirements.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
Conductor category
Class 2 = stranded
Cable category
Other
Reaction-to-fire class (EN 13501-6)
None
Specification material outer sheath
Other
Stranding
Other
Stranding element
No
Ambient operating temperature - max
55 °C
Ambient operating temperature - min
0 °C
Equipment heat dissipation, current-dependent Pvid
0 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0 W
Nominal cross section (conductor)
0.5 mm²
Number of cores
4
Number of stranding elements
0
NVP value
66.5 %
Permitted bending radius, moving application with forced guidance - min
0 mm
Permitted bending radius, moving application with free movement - min
0 mm
Permitted temperature of outer cable (assembling/handling) - max
70 °C
Permitted temperature of outer cable (assembling/handling) - min
-25 °C
Circuit integrity
None
Approved type of underground installation
Other
Material reinforcement
Other
Armouring/reinforcement
None
Cable geometry
Round
Conductor material
Other
Rated operational current for specified heat dissipation (In)
0 A
Static heat dissipation, non-current-dependent Pvs
0 W
Product category
SmartWire-DT accessories
Conductor diameter
1.5 mm
AWG-size
20
Cable length
2 m
Conductor surface
Bare
Core identification
Colour
Core insulation material
Other
Suitable for
Input board PLC
Output card PLC
Analogue signals
Digital signals
Output card PLC
Analogue signals
Digital signals
Euro class acidity (EN 13501-6)
None
Euro class flaming droplets/particles (EN 13501-6)
None
Flame retardant
In accordance with EN 60332-1-2
Electrical connection type (box-sided)
RJ-plug
Electrical connection type (field-sided)
Connection plug board
Outer sheath material
Polyvinyl chloride (PVC)
Protective sheath material
Other
Screen over stranding
None
Screen over stranding element
None
Smoke development class (EN 13501-6)
None
Functions
For transferring the user program to the PLC or for diagnosing SmartWire-DT networks
PLC - PC
PLC - PC
| Característica | Valor |
|---|---|
| Función (EF000030) | PLC - PC |
| Longitud (EF001438) | 2 m |
| Apto para tarjeta de entrada de PLC (EF008271) | Sí |
| Apto para tarjeta de salida de PLC (EF008272) | Sí |
| Apto para señales digitales (EF008273) | Sí |
| Apto para señales analógicas (EF008274) | Sí |
| Ejecución de conexión eléctrica, lado de campo (EF005525) | Regleta multitoma de corriente |
| Ejecución de conexión eléctrica, lado de carcasa (EF005524) | Conexión RJ |
| Número de polos (EF001391) | 9 |
Datasheet - PDF
▲| Título: | Tamaño: | Tipo: |
|---|---|---|
| PDF CATALOGO EATON CONTROL Y AUTOMATIZACION ES.pdf | 9 Mbytes |
|
| PDF CATALOGUE EATON EN .pdf | 38 Mbytes |
|
