134B9412 Airflow Sensor TF65 PT1000 Temperature DANFOSS DRIVES Sensor de flujo de aire TF65 PT1000 Temperatu..

Código: 134B9412

Número de catálogo: Airflow Sensor TF65 PT1000 Temperature

Fabricante: DANFOSS DRIVES

Descripción:

Sensor de flujo de aire TF65 PT1000 Temperatura
DUCT TEMPERATURE SENSOR TF 65The TF 65 temperature measuring transducer is a PT1000 class Bresistance sensor with passive output. Measuring range from –30...+150 °C. In a resistant IP67 plastic housing and M16 cable gland for cableconnection and a straight protective measuring tube and a mountingflange.Sensor type: PT1000 class B (DIN EN 60751) 1000ohm at 0°C ± 0,3 KMeasuring range: –30...+150 °C/ –22...+302 °FAmbient temperature: –20...+100 °C / –4...+212 °FTesting current: < 0.6 mAInsulating resistance: 100 M#, at +20 °C (500V DC)Connection type: 2-wire connectionMeasuring tube: stainless steel, V4A (1.4571), Ø 6 mm, inserted length =300 mm / 11.8 inT1-IP67 plastic housing with a M16 cable glands and a mounting flange.8 mm / 2.83 x 2.

Categorías:

  • DANFOSS DRIVES > OPCIONES Y ACCESORIOS FC302 FC202 FC102 - DANFOSS DRIVES

Producto nuevo en su embalaje original con todas las garantías y certificaciones de DANFOSS DRIVES

  • Más Información
  • Opiniones
Garantía, reparación y devolución.

Precio unitario: 23,83 €

Este precio es por unidad y muestra el valor neto (no incluye impuestos indirectos si son aplicables).

Calcule su precio por cantidad

CantidadPrecio

Plazo estándar: 1-2 semanas.

  • Estos plazos son una estimación y podrían variar una vez tramitado el pedido del artículo.

VISTOS ANTERIORMENTE

MÁS INFORMACIÓN

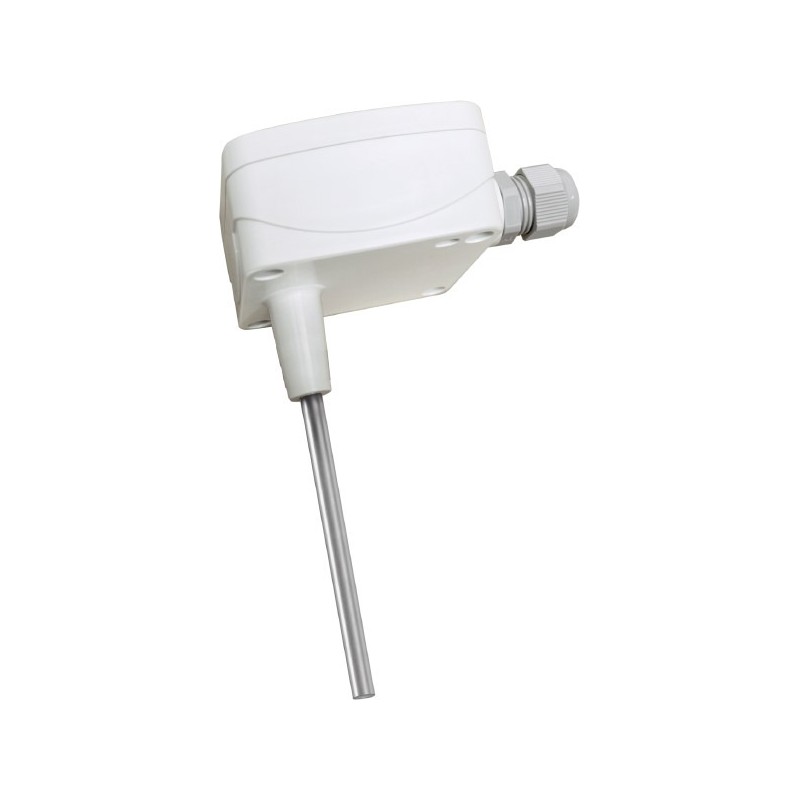

DUCT TEMPERATURE SENSOR TF 65
The TF 65 temperature measuring transducer is a PT1000 class B
resistance sensor with passive output. Measuring range from –30...+150 °
C. In a resistant IP67 plastic housing and M16 cable gland for cable
connection and a straight protective measuring tube and a mounting
flange.
Sensor type: PT1000 class B (DIN EN 60751) 1000ohm at 0°C ± 0,3 K
Measuring range: –30...+150 °C/ –22...+302 °F
Ambient temperature: –20...+100 °C / –4...+212 °F
Testing current: < 0.6 mA
Insulating resistance: 100 M#, at +20 °C (500V DC)
Connection type: 2-wire connection
Measuring tube: stainless steel, V4A (1.4571), Ø 6 mm, inserted length =
300 mm / 11.8 in
T1-IP67 plastic housing with a M16 cable glands and a mounting flange.
Housing dimensions: 72 x 64 x 37.8 mm / 2.83 x 2.52 x 1.49 in

Detalles del producto

Peso bruto0.275 Kilogramo
Peso neto0.15 Kilogramo
Volumen2.464 Litro
EAN5715253547107
Peso bruto0.275 Kilogramo
Peso neto0.15 Kilogramo
Volumen2.464 Litro
EAN5715253547107
