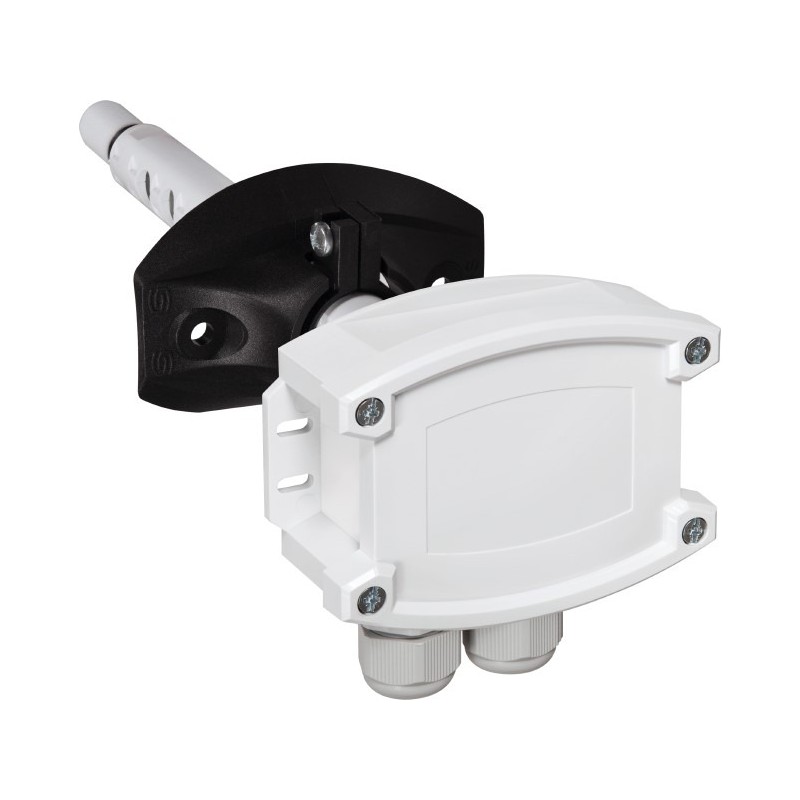

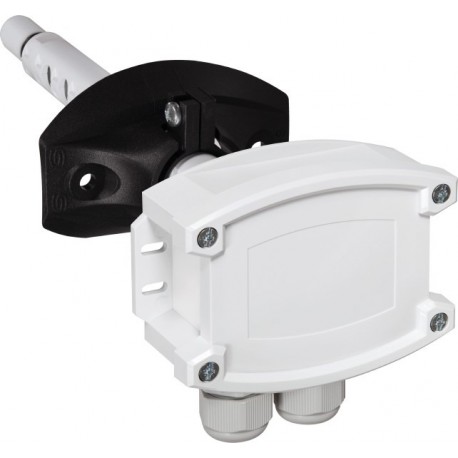

DANFOSS DRIVES 134B9407 Airflow Sensor KFTF Temp & Humidity - Imagen 1

Las imágenes son sólo a título ilustrativo. Por favor, revise la ficha técnica.

134B9407 Airflow Sensor KFTF Temp & Humidity DANFOSS DRIVES Sensor de flujo de aire KFTF Temperatura y humed..

Código: 134B9407

Número de catálogo: Airflow Sensor KFTF Temp & Humidity

Fabricante: DANFOSS DRIVES

Descripción:

Sensor de flujo de aire KFTF Temperatura y humedad
DUCT HUMIDITY- AND TEMPERATURE SENSORS KFTF-MBCalibratable duct humidity and temperature sensor KFTF-T3 (± 2.0%) withModbus RTU connection, in a resistant IP65 plastic housing with quick-locking screws and M16 cable gland for cable connection and a plasticsinter filter (exchangeable). Including mounting flange to detect therelative humidity (0…100% RH) and the temperature (–35...+80 °C) insidea tube, including various parameters in the humidity measurement. Theduct sensor is applied in a non-aggressive and dust-free environment andis suitable for installation in ceilings, ducts and devices.International SI units (default) can be switched to Imperial (viaModbus).Measuring range: 0...100 % RH (humidity) / – 35...0 % (20.....+70 °C / –22...

Categorías:

  • DANFOSS DRIVES > OPCIONES Y ACCESORIOS FC302 FC202 FC102 - DANFOSS DRIVES

Producto nuevo en su embalaje original con todas las garantías y certificaciones de DANFOSS DRIVES

  • Más Información
  • Opiniones
Garantía, reparación y devolución.

Precio unitario: 156,76 €

Este precio es por unidad y muestra el valor neto (no incluye impuestos indirectos si son aplicables).

Calcule su precio por cantidad

CantidadPrecio

Plazo estándar: 1-2 semanas.

  • Estos plazos son una estimación y podrían variar una vez tramitado el pedido del artículo.

VISTOS ANTERIORMENTE

MÁS INFORMACIÓN

DUCT HUMIDITY- AND TEMPERATURE SENSORS KFTF-MB
Calibratable duct humidity and temperature sensor KFTF-T3 (± 2.0%) with
Modbus RTU connection, in a resistant IP65 plastic housing with quick-
locking screws and M16 cable gland for cable connection and a plastic
sinter filter (exchangeable). Including mounting flange to detect the
relative humidity (0…100% RH) and the temperature (–35...+80 °C) inside
a tube, including various parameters in the humidity measurement. The
duct sensor is applied in a non-aggressive and dust-free environment and
is suitable for installation in ceilings, ducts and devices.
International SI units (default) can be switched to Imperial (via
Modbus).
Measuring range: 0...100 % RH (humidity) / – 35...+80 °C (temperature)
Medium: clean air and non-aggressive, non-combustible gases
Deviation, humidity: typical ± 2.0 % (20...80 % RH) at +25 °C, otherwise
± 3.0 %
Deviation, temperature: typical ± 0.2 K at +25 °C
Zero point offset: ± 10 % RH (humidity) / ± 5 °C (temperature)
Power: 24VAC (± 20%) / 15…36VDC - 24DC <1,2W
Operation temperature: –30...+70 °C / –22...+158 °F
T3-IP65 plastic housing with two M20 cable glands
Housing dimensions: 108 x 78.5 x 43.3 mm / 4.25 x 3.1 x 1.7 in

Detalles del producto

Peso bruto0.385 Kilogramo
Peso neto0.23 Kilogramo
Volumen4.285 Litro
EAN5715253547046
Peso bruto0.385 Kilogramo
Peso neto0.23 Kilogramo
Volumen4.285 Litro
EAN5715253547046

OptionsControl related options
OptionsControl related options

DATASHEET - PDF
