Producto:MTZ18-4VM DANFOSS REFRIGERATION Compreso...

Las imágenes son sólo a título ilustrativo. Por favor, revise la ficha técnica.
Código: 134B9406
Número de catálogo: Pressure Sensor 7227 2x7000Pa, Analog
Fabricante: DANFOSS DRIVES
Descripción:
Categorías:
Producto nuevo en su embalaje original con todas las garantías y certificaciones de DANFOSS DRIVES
VISTOS ANTERIORMENTE

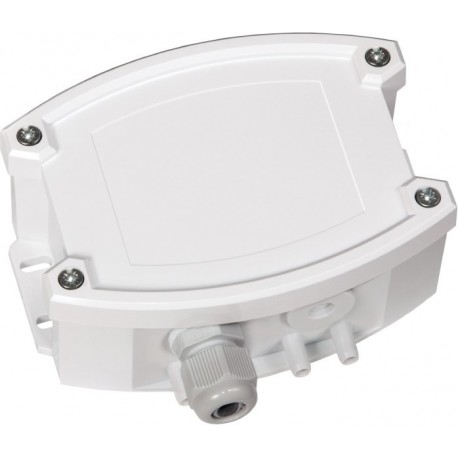

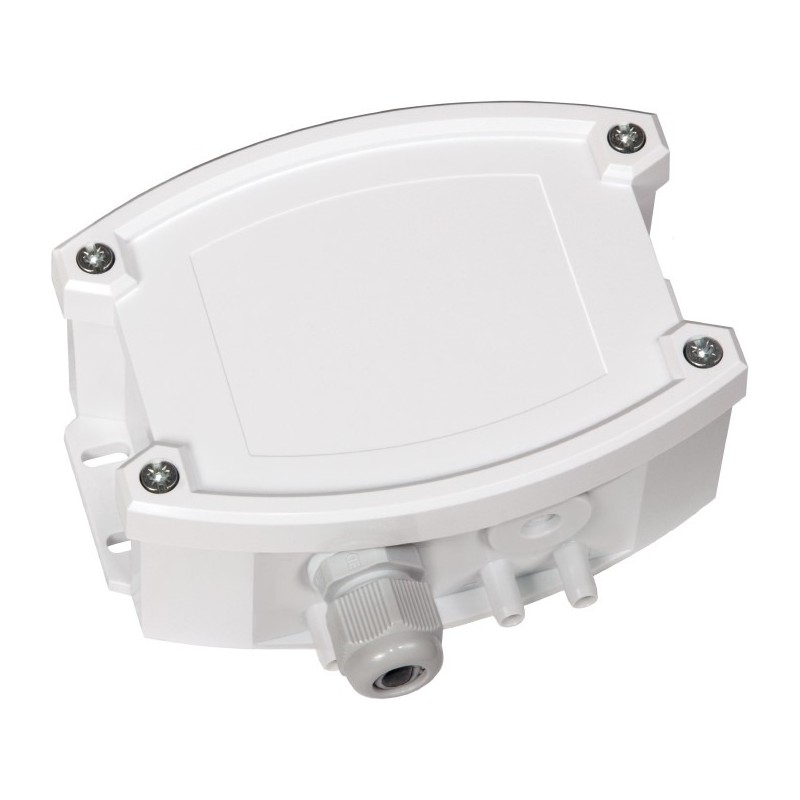

DUAL AIR PRESSURE SENSOR ±7000PA ±7000PA, ANALOGUE
Dual pressure transmitter with 2x8 switchable measuring ranges and 2 automated analogue output signals in a resistant IP65 plastic housing with quick-locking screws, connection nozzles for pressure hose (Ø 6 mm) and a M16 cable gland for cable connection. The pressure measuring transducer automatically detects the required output type and converts the measurands into the required standard signal of 0–10 V or 4...20 mA.
Pressure range selection: ± 7000 Pa – 0…1000Pa / 2000Pa / 3000Pa / 5000Pa / 7000Pa
Accuracy: 7000 Pa typical ± 105 Pa
Zero point offset: ± 10 % of measuring range
Above- # below-pressure: max. ± 50 kPa
Power: 24VAC/DC (± 10%) <1,3W,
Output: automatically switching 0 -10 V # 4...20 mA
Working resistance: Ra (ohms) = 25...450 Ohm (at I output)
Load resistance: RL > 15 kOhm (at U output)
Operation / Media temperature: –20...+50 °C / –4...+122 °F
T2-IP65 plastic housing with one M16 cable gland
Housing dimensions: 126 x 90 x 50 mm / 4.96 x 3.54 x 1.97 in
| Peso bruto | 0.395 Kilogramo |
| Peso neto | 0.185 Kilogramo |
| Volumen | 2.43 Litro |
| EAN | 5715253547039 |
| Peso bruto | 0.395 Kilogramo |
| Peso neto | 0.185 Kilogramo |
| Volumen | 2.43 Litro |
| EAN | 5715253547039 |
| Options | Control related options |
| Options | Control related options |
