Producto:MTZ18-4VM DANFOSS REFRIGERATION Compreso...

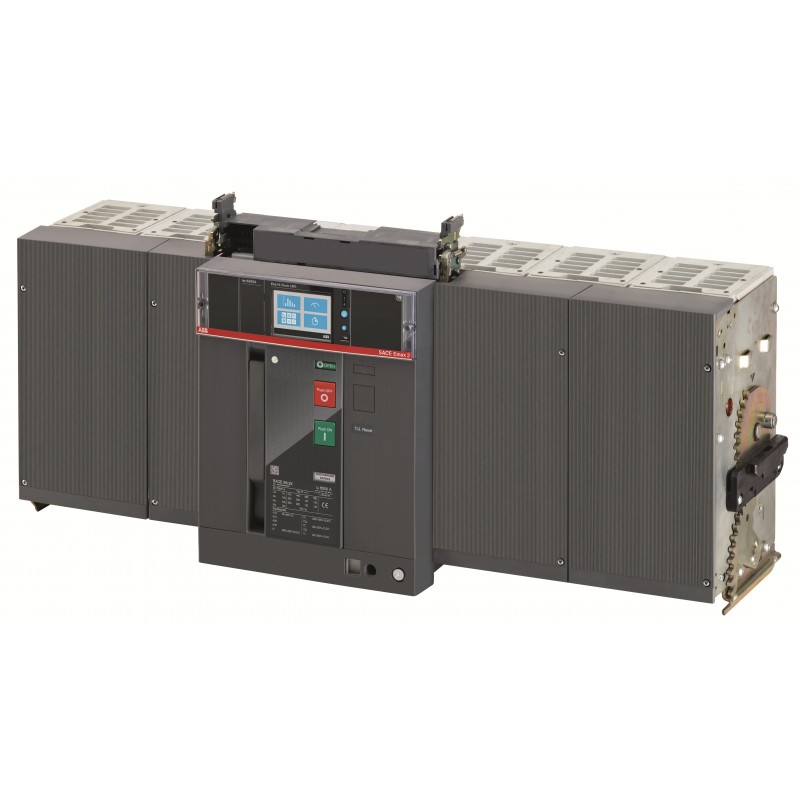

Las imágenes son sólo a título ilustrativo. Por favor, revise la ficha técnica.
Referencia: 1SDA073215R1
Fabricante: ABB
Descripción:
Categorías:
Producto nuevo en su embalaje original con todas las garantías y certificaciones de ABB
VISTOS ANTERIORMENTE
| ABB EcoSolutions | |
|---|---|
| ABB EcoSolutions | Yes |
| Circular Value | |
| Principios de diseño circular Tasa de reciclabilidad | Design for Closing Resource Loops - Standard EN45555 - 77 % |
| Plantilla de notificación de minerales de conflicto (CMRT) | 9AKK108467A5658 |
| Instrucciones para el final de la vida | 9AKK108468A2364 |
| Grupo Objetivo de Residuos a Vertedero | UL 2799 Zero Waste To Landfill Validation available |
| Ley de Control de Sustancias Tóxicas - TSCA | 9AKK108467A8326 |
| Eco Transparency | |
| Declaración Ambiental de Producto - EPD | 9AKK108468A1905 |
| 9AKK108468A1913 | |
| Ambiente | |
| Información medioambiental | 9AKK108467A6707 |
| Declaración REACH | 9AKK108466A1425 |
| Información sobre RoHS | 9AKK108466A1424 |
| Estado de RoHS | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| SCIP | 977d0027-f5d6-49fe-a492-437200e47beb Italy (IT) |
| SCIP simplificado | 579eaaec-be89-43a4-91a1-2850d04785c9 Germany (DE) |
| 3aa5bcc7-648b-4ccb-b524-1fd30ffb74fc Estonia (EE) | |
| 091e044b-458e-4cd9-ab1a-22014b0da6c3 Belgium (BE) | |
| 4dc25cf7-5937-4ae3-8e98-be57bead8a75 Greece (GR) | |
| e53730bb-17b2-4bdf-b196-5f9556f03c44 Germany (DE) | |
| 254a2b29-d626-4959-b73a-e75961bf5f69 Germany (DE) | |
| 4a131462-9cc4-43b0-b69c-9f312817c5f5 Denmark (DK) | |
| 5dc81f2a-97bf-4845-90c9-bc3e81306159 Germany (DE) | |
| aad24c3b-1f64-4cff-8008-d57f19f32153 Germany (DE) | |
| 12e07079-2d0d-4a19-a2d5-e262f4e6583b France (FR) | |
| 132f63fd-dfb8-490a-aa60-ca22bddbdb8e Croatia (HR) | |
| 7eea5bef-5d65-4abd-a914-b5b2ba04aef6 France (FR) | |
| e0ce4524-2ef4-437f-9205-b51f8785f292 Bulgaria (BG) | |
| 4f1f2265-2f23-467a-9d1b-81eed54f89a9 Sweden (SE) | |
| aa0a9d10-1fcc-479e-917a-d9a42141d297 Portugal (PT) | |
| 53d83641-dfe5-48ae-95fe-65bf090ef17c Poland (PL) | |
| 15569514-6be6-472b-a4e3-95abe46307bd Poland (PL) | |
| 55f1d00c-0fb7-4099-8178-08e6751bb146 Netherlands (NL) | |
| 186deee0-b3a7-4db4-adf0-ddf9e488818a Sweden (SE) | |
| b2efb7b0-3834-430c-933e-93d6d2798d7c Finland (FI) | |
| 118d54b5-50f3-479d-abf3-1359711594d8 Spain (ES) | |
| 54ba4c6b-4485-45f0-a036-d346fd1f90e6 Belgium (BE) | |
| ff0ec6e4-2ef3-46c6-9c2e-58b9f57d676b Hungary (HU) | |
| a06501df-413e-4596-8c80-0a50ad2b40db Norway (NO) | |
| e18e1a59-ebc0-4dcf-a50e-a4647119c210 Hungary (HU) | |
| 7234ab2f-4dfe-4379-906d-561fca0e6295 Czech Republic (CZ) | |
| eefcf481-4d0c-4ad9-a5a1-3c3b4950cc67 Poland (PL) | |
| Clasificación | |
| Código de pedido EE.UU. y Canadá | ZDHWERAE000A000000XX |
| EAN | 8015644770655 |
| Cantidad mínima de pedido | 1 piece |
| Código arancelario | 85362090 |
| Dimensiones | |
| Ancho del product | 929 mm |
| Alto del producto | 425 mm |
| Largo del product | 383 mm |
| Peso del product | 134 kg |
| Información de Embalaje | |
| Embalaje Nivel 1 Unidades | box 1 piece |
| Embalaje Nivel 1 Ancho | 515 mm |
| Embalaje Nivel 1 Alto | 610 mm |
| Embalaje Nivel 1 Largo | 1127 mm |
| Embalaje Nivel 1 Peso | 143 kg |
| Embalaje Nivel 1 EAN | 8015644770655 |
| Información Adicional | |
| Tipo actual | AC |
| Durabilidad eléctrica | Ue =< 440 V 4000 cycle |
| Ue = 500 ... 690 V 4000 cycle | |
| 10 cycles per hour | |
| Durabilidad mecánica | 12000 cycle |
| 60 cycles per hour | |
| Corriente del polo neutro ([%Iu]) | 50 % |
| Número de polos | 4 |
| Pérdida de potencia | 544 W |
| Tipo de producto principal | SACE Emax 2 |
| Nombre del producto | Air Circuit Breaker |
| Tipo de producto | Air Circuit Breaker |
| Capacidad nominal de corte en cortocircuito, en % de Icu (Ics) | 100 % |
| Corriente nominal (In) | 4000 A |
| Tensión nominal (Ur) | 690 V |
| Tensión nominal soportada por impulsos (Uimp) | acc. to IEC 60947-2 12 kV |
| Tensión nominal de aislamiento (Ui) | AC 1000 V |
| Tensión nominal de operación | 690 V AC |
| Capacidad nominal de corte en cortocircuito en servicio (Ics) | (220 V AC) 100 kA |
| (230 V AC) 100 kA | |
| (380 V AC) 100 kA | |
| (400 V AC) 100 kA | |
| (415 V AC) 100 kA | |
| (440 V AC) 100 kA | |
| (500 V AC) 100 kA | |
| (660 V AC) 100 kA | |
| (690 V AC) 100 kA | |
| Corriente nominal de corta duración Tensión baja (Icw) | for 1 s 100 kA |
| for 3 s 100 kA | |
| Capacidad nominal de corte en cortocircuito (Icu) | (400 V AC) 100 kA |
| (415 V AC) 100 kA | |
| (440 V AC) 100 kA | |
| (500 V AC) 100 kA | |
| (525 V AC) 100 kA | |
| (690 V AC) 100 kA | |
| Corriente nominal ininterrumpida (Iu) | 4000 A |
| Liberar | Ekip Touch LSI |
| Tipo de desbloqueo | EL |
| Nivel de rendimiento de cortocircuito | H |
| Normas | IEC |
| Subtipo | E6.2 |
| Versión | W |
| Dibujo dimensional CAD | 1SDH001252R0289 |
| Certificados y Declaraciones (Número de Documento) | |
| Certificado ATEX | No certification needed |
| Certificado CSA | No certification needed |
| Certificado CSA (seguridad intrínseca) | No certification needed |
| Ficha técnica, información técnica | 1SDC200023D0709 |
| Declaración de conformidad - CE | 9AKK106713A5544 |
| Certificado UL | No certification needed |
| Certificado VDE | No certification needed |
| Dibujos mecánicos | 1SDH001060R0105 |
| Diagrama de cableado | 1SDM000091R0001 |
| Instrucciones y manuales | 1SDH001000R0005 |
| Instrucciones y manuales (parte 2) | 1SDH001316R1005 |
| Clasificaciones | |
| ETIM 7 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| ETIM 8 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| ETIM 9 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| Código de clasificación de objetos | Q |
| Categoría RAEE | 4. Large Equipment (Any External Dimension More Than 50 cm) |
| Clase electrónica | V11.1 : 27370409 |
