SMKV 9 10062082 WISKA Metal hexagonal cable glands, IP54, range from 4.0 to 11.0mm, thread PG 09
SMKV 9
10062082
WISKA
100
Metal hexagonal cable glands, IP54, range from 4.0 to 11.0mm, thread PG 09

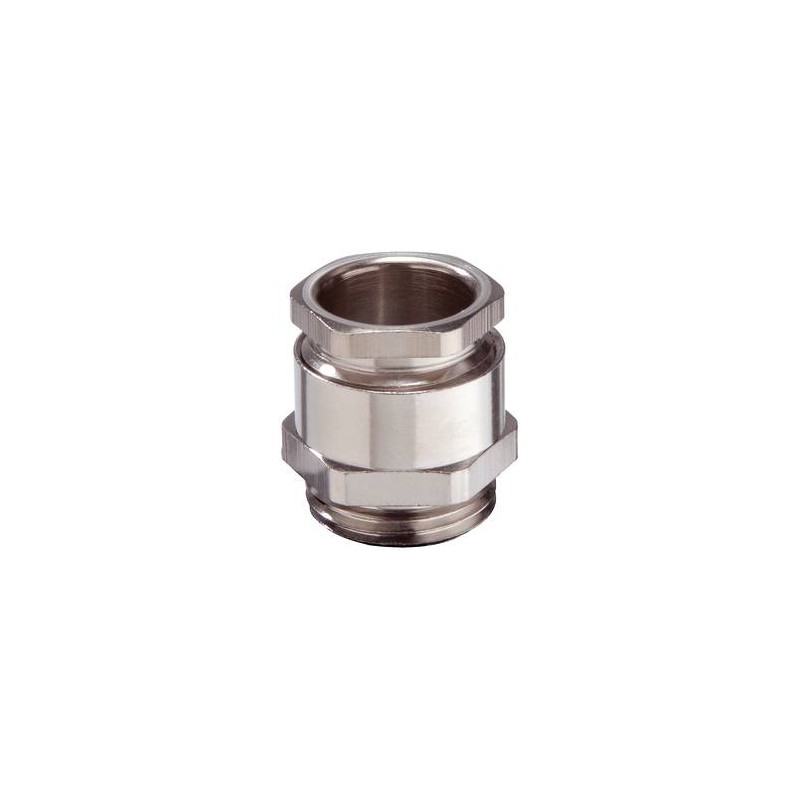

Cable gland hexagonal, brass nickel-plated, Pg 9, with short thread
Home > WISKA
Brand new product in its original packaging covered by the warranties and certifications provided by WISKA
Best sellers
▲More info
▲Features
| Material cable gland | Brass nickel-plated |
| Material sealing gasket | Soft rubber |
| Temp. range min | -40 °C |
| Temp. range max | 70 °C |
| Protection class | IP54 |
| Thread type | PG |
| Ø Connection thread D | 9 |
| Length screw-in thread L | 6 mm |
| Ø cable diameter min | 4 mm |
| Ø cable diameter max | 11 mm |
| Key width SW1 | 15 mm |
| Key width SW2 | 17 mm |
| Collar diameter E1 | 17 mm |
| Collar diameter E2 | 19 mm |
| Total length TL | 22 mm |
| Impact category | 6 |
| Surface | Nickel-plated |
| Order no. nickel-plated | 10062082 |
| Type | SMKV 9 |
| Packing unit | 100 |
| ETIM-Classification | EC000441 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE WISKA EN.pdf | 16 Mbytes |
|
| SMKV 9 10062082 EN_10062082.pdf | 261 Kbytes |
|
