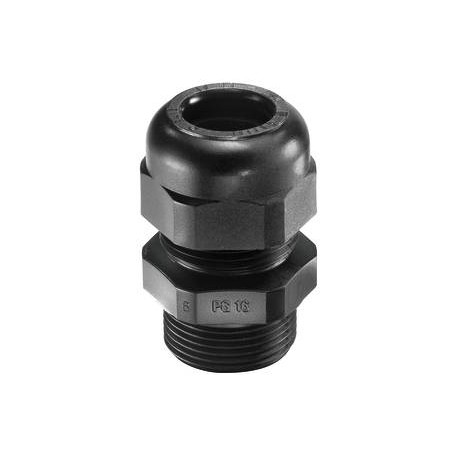

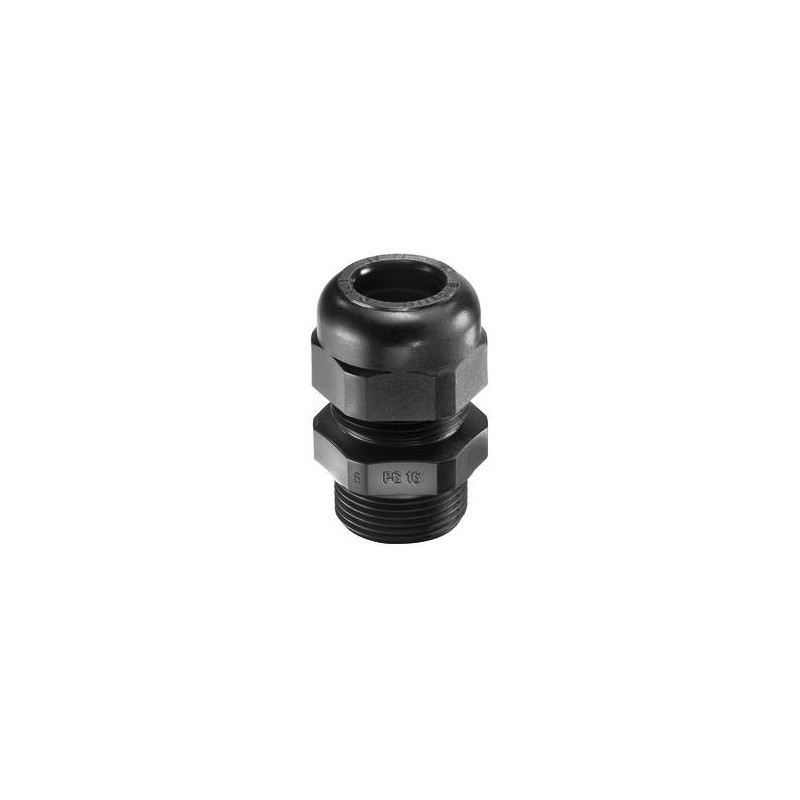

SKV 36/B 10066198 WISKA Black cable glands RAL 9005, PA IP68, range from 22.0 to 32.0mm, thread PG 36
SKV 36/B
10066198
WISKA
10
Black cable glands RAL 9005, PA IP68, range from 22.0 to 32.0mm, thread PG 36
Cable gland, polyamide, Pg 36, RAL 9005
Home > WISKA
Brand new product in its original packaging covered by the warranties and certifications provided by WISKA
Best sellers
▲More info
▲Features
| Material cable gland | Polyamide |
| Material sealing gasket | EPDM |
| Temp. range min | -40 °C |
| Temp. range max | 100 °C |
| Protection class | IP68 (5 bar 30 min) |
| Thread type | PG |
| Ø Connection thread D | 36 |
| Length screw-in thread L | 14 mm |
| Ø cable diameter min | 22 mm |
| Ø cable diameter max | 32 mm |
| Key width SW | 53 mm |
| Collar diameter (E) | 59 mm |
| Total length TL | 56 mm - 65 mm |
| Glow wire test | 750 °C |
| Type of cable anchorage | A |
| Product Color | RAL 9005 |
| Order no. RAL 9005 | 10066198 |
| Type | SKV 36 |
| Packing unit | 10 |
| ETIM-Classification | EC000441 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE WISKA EN.pdf | 16 Mbytes |
|
| SKV 36/B 10066198 EN_10066198.pdf | 374 Kbytes |
|
