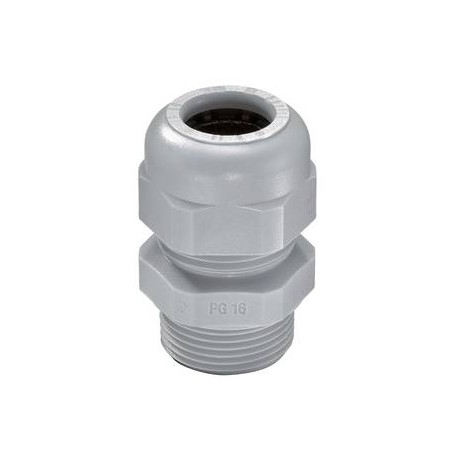

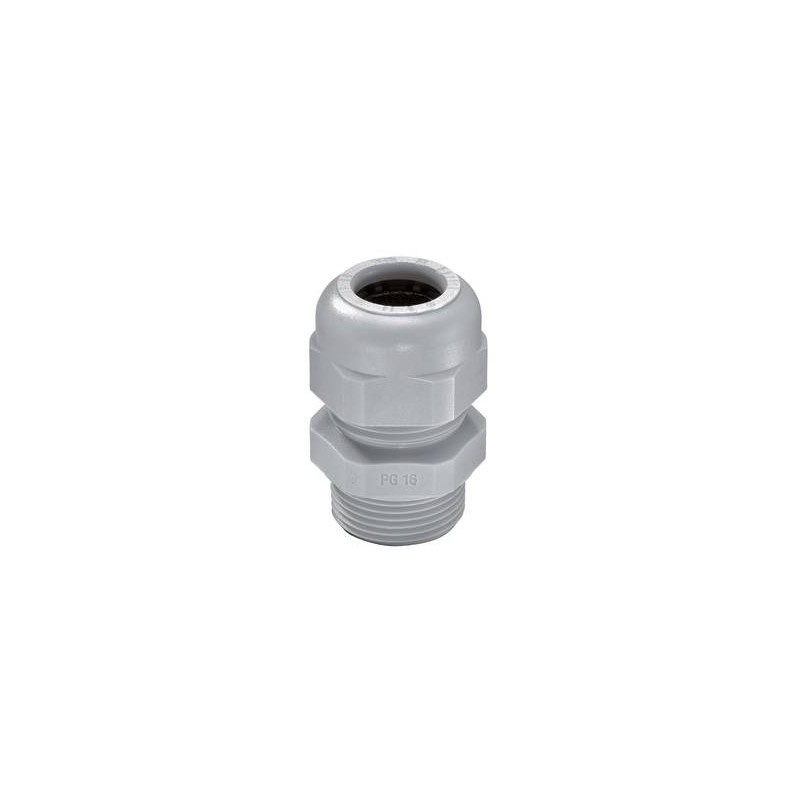

SKV 29/GL 10066007 WISKA Light grey cable glands RAL 7035, PA IP68, range from 16.0 to 25.0mm, thread PG 29
SKV 29/G
10066007
WISKA
20
Light grey cable glands RAL 7035, PA IP68, range from 16.0 to 25.0mm, thread PG 29
Cable gland, polyamide, Pg 29 RAL 7001
Home > WISKA
Brand new product in its original packaging covered by the warranties and certifications provided by WISKA
Best sellers
▲More info
▲Features
| Material cable gland | Polyamide |
| Material sealing gasket | EPDM |
| Temp. range min | -40 °C |
| Temp. range max | 100 °C |
| Protection class | IP68 (5 bar 30 min) |
| Thread type | PG |
| Ø Connection thread D | 29 |
| Length screw-in thread L | 12 mm |
| Ø cable diameter min | 16 mm |
| Ø cable diameter max | 25 mm |
| Key width SW | 42 mm |
| Collar diameter (E) | 46 mm |
| Total length TL | 47 mm - 56 mm |
| Glow wire test | 750 °C |
| Type of cable anchorage | A |
| Product Color | RAL 7001 |
| Order no. RAL 7001 | 10066007 |
| Type | SKV 29 |
| Packing unit | 20 |
| ETIM-Classification | EC000441 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE WISKA EN.pdf | 16 Mbytes |
|
| SKV 29/G 10066007 EN_10066007.pdf | 261 Kbytes |
|
