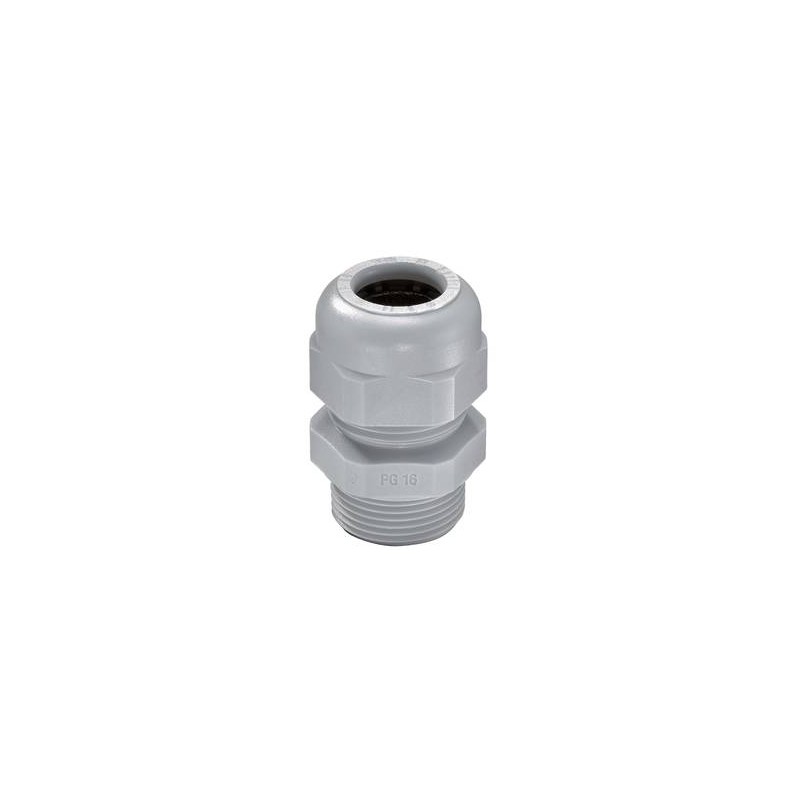

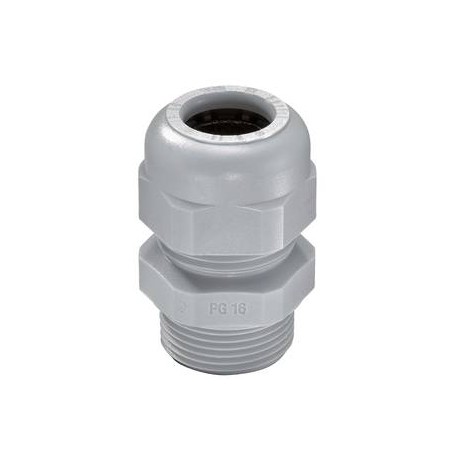

SKV 21/GL 10066006 WISKA Light grey cable glands RAL 7035, PA IP68, range from 10.0 to 18.0mm, thread PG 21
SKV 21/G
10066006
WISKA
25
Light grey cable glands RAL 7035, PA IP68, range from 10.0 to 18.0mm, thread PG 21
Cable gland, polyamide, Pg 21 RAL 7001
Home > WISKA
Brand new product in its original packaging covered by the warranties and certifications provided by WISKA
Best sellers
▲More info
▲Features
| Material cable gland | Polyamide |
| Material sealing gasket | EPDM |
| Temp. range min | -40 °C |
| Temp. range max | 100 °C |
| Protection class | IP68 (5 bar 30 min) |
| Thread type | PG |
| Ø Connection thread D | 21 |
| Length screw-in thread L | 11 mm |
| Ø cable diameter min | 10 mm |
| Ø cable diameter max | 18 mm |
| Key width SW | 33 mm |
| Collar diameter (E) | 36 mm |
| Total length TL | 43 mm - 50 mm |
| Glow wire test | 750 °C |
| Type of cable anchorage | A |
| Product Color | RAL 7001 |
| Order no. RAL 7001 | 10066006 |
| Type | SKV 21 |
| Packing unit | 25 |
| ETIM-Classification | EC000441 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE WISKA EN.pdf | 16 Mbytes |
|
| SKV 21/G 10066006 EN_10066006.pdf | 260 Kbytes |
|
