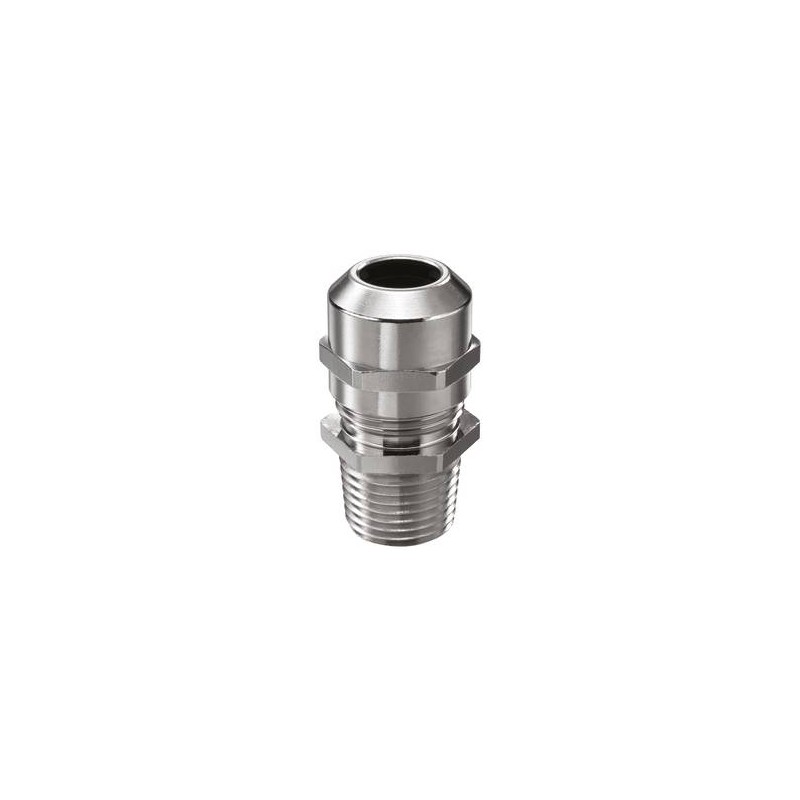

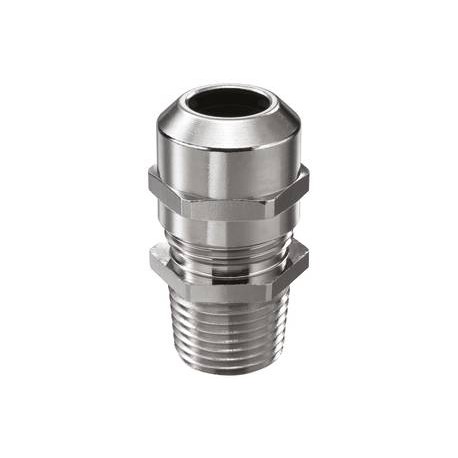

NMSKV 2 10065487 WISKA IP68 metal cable glands, range from 34.0mm to 48.0mm, NPT thread 2
NMSKV 2
10065487
WISKA
10
IP68 metal cable glands, range from 34.0mm to 48.0mm, NPT thread 2
Cable gland, brass nickel-plated, 2"
Home > WISKA
* Brand new product in its original packaging covered by the warranties and certifications provided by WISKA
Best sellers
▲More info
▲Features
| Material cable gland | Brass nickel-plated |
| Material clamping cage | Polyamide |
| Material sealing gasket | EPDM |
| Temp. range min | -40 °C |
| Temp. range max | 100 °C |
| Protection class | IP68 (5 bar 30 min), IP69 |
| Thread type | NPT |
| Ø Connection thread D | 2" |
| Length screw-in thread L | 21 mm |
| Ø cable diameter min | 34 mm |
| Ø cable diameter max | 48 mm |
| Ø cable diameter UL | 38,1 mm - 47,5 mm |
| Key width SW | 68 mm |
| Collar diameter (E) | 75 mm |
| Type of cable anchorage | A |
| Install. torques fitting | 40 N m |
| Install. torques cap nut | 40 N m |
| Impact category | 6 |
| Total length TL | 56 mm - 67 mm |
| Surface | Nickel-plated |
| Order no. nickel-plated | 10065487 |
| Type | NMSKV 2 |
| Packing unit | 10 |
| ETIM-Classification | EC000441 |
| Remarks: When using a locknut NMMU, an additional connection thread gasket ADR must be used to achieve protection class IP69 / IP68. | |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE WISKA EN.pdf | 12 Mbytes |
|
| NMSKV 2 10065487 EN_10065487.pdf | 356 Kbytes |
|
