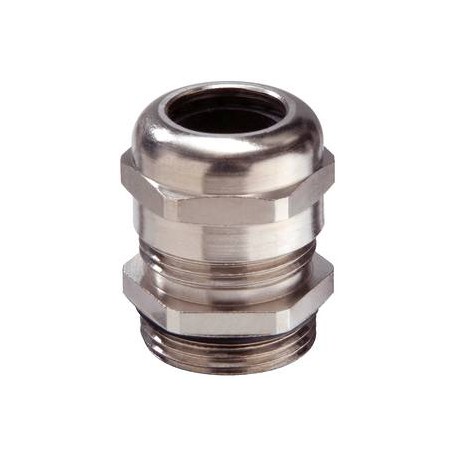

MSKV 9 10062282 WISKA Metal cable glands, IP68, range from 4.0mm to 8.0mm, thread PG 09
MSKV 9
10062282
WISKA
50
Metal cable glands, IP68, range from 4.0mm to 8.0mm, thread PG 09

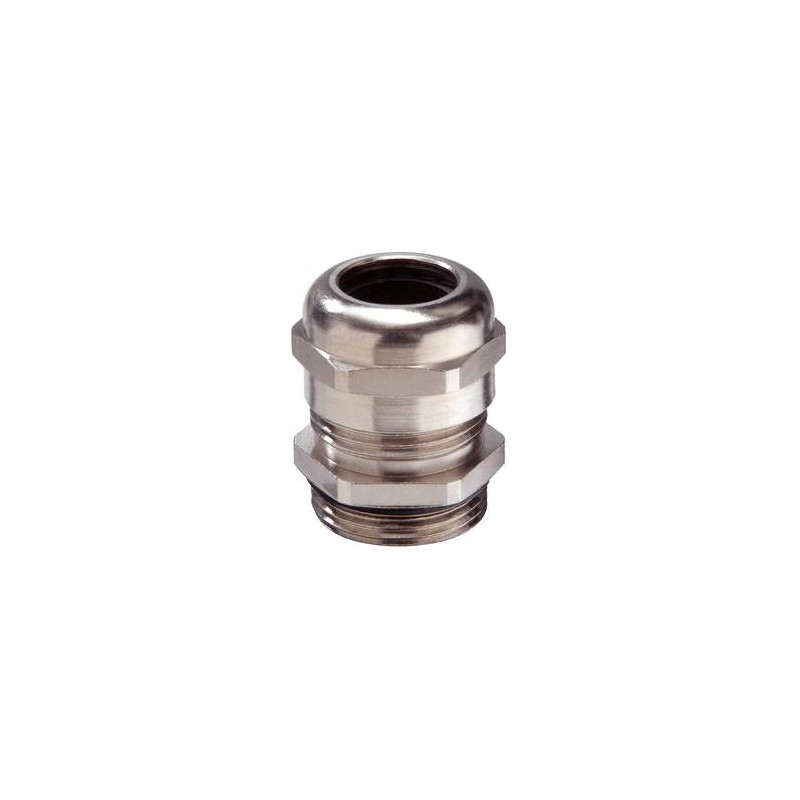

Cable gland, brass nickel-plated, Pg 9
Home > WISKA
* Brand new product in its original packaging covered by the warranties and certifications provided by WISKA
Best sellers
▲More info
▲Features
| Material cable gland | Brass nickel-plated |
| Material clamping cage | Polyamide |
| Material sealing gasket | TPV |
| Temp. range min | -40 °C |
| Temp. range max | 100 °C |
| Protection class | IP69, IP68 (5 bar 30 min) |
| Thread type | PG |
| Ø Connection thread D | 9 |
| Length screw-in thread L | 6 mm |
| Ø cable diameter min | 4 mm |
| Ø cable diameter max | 8 mm |
| Key width SW | 17 mm |
| Collar diameter (E) | 19 mm |
| Total length TL | 21 mm - 25 mm |
| Install. torques fitting | 12 N m |
| Install. torques cap nut | 8 N m |
| Impact category | 6 |
| Surface | Nickel-plated |
| Order no. nickel-plated | 10062282 |
| Type | MSKV 9 |
| Packing unit | 50 |
| ETIM-Classification | EC000441 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE WISKA EN.pdf | 12 Mbytes |
|
| MSKV 9 10062282 EN_10062282.pdf | 269 Kbytes |
|
