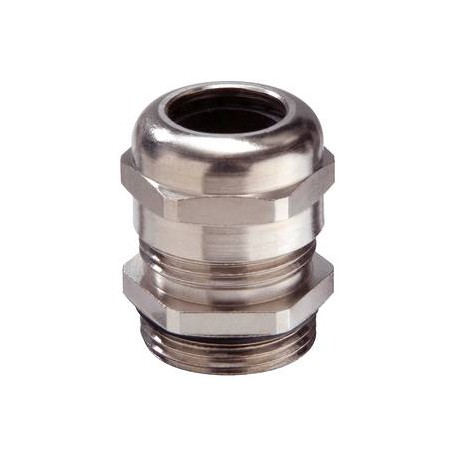

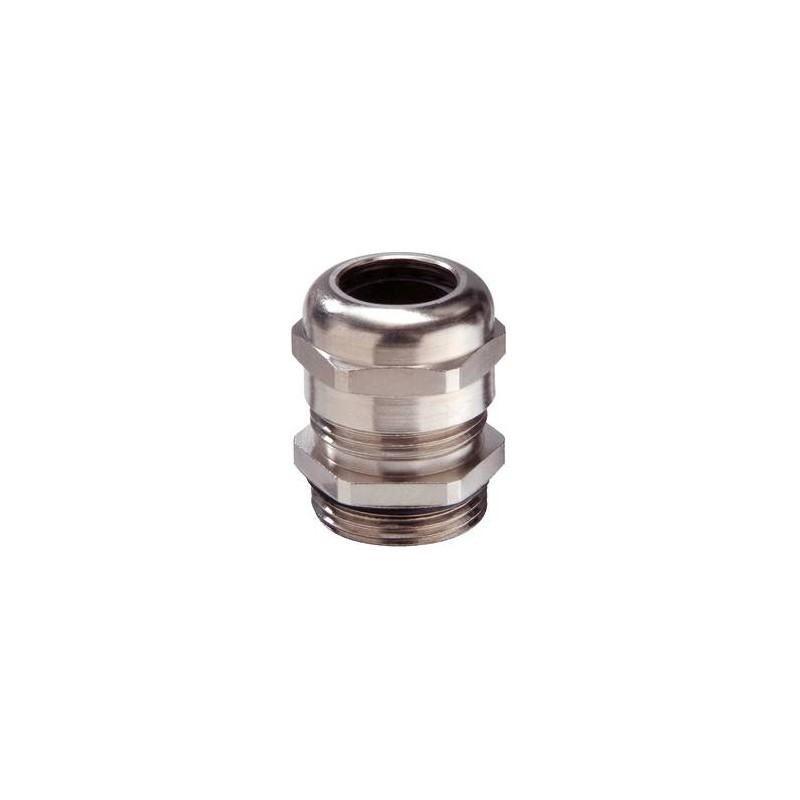

MSKV 48 10062290 WISKA Metal cable glands, IP68, range from 34.0mm to 44.0mm, pg 48 thread
MSKV 48
10062290
WISKA
10
Metal cable glands, IP68, range from 34.0mm to 44.0mm, pg 48 thread
Cable gland, brass nickel-plated, Pg 48
Home > WISKA
Brand new product in its original packaging covered by the warranties and certifications provided by WISKA
Best sellers
▲More info
▲Features
| Material cable gland | Brass nickel-plated |
| Material clamping cage | Polyamide |
| Material sealing gasket | TPV |
| Temp. range min | -40 °C |
| Temp. range max | 100 °C |
| Protection class | IP68 (5 bar 30 min), IP69 |
| Thread type | PG |
| Ø Connection thread D | 48 |
| Length screw-in thread L | 14 mm |
| Ø cable diameter min | 34 mm |
| Ø cable diameter max | 44 mm |
| Key width SW | 64 mm |
| Collar diameter (E) | 69 mm |
| Total length TL | 43 mm - 53 mm |
| Install. torques fitting | 85 N m |
| Install. torques cap nut | 55 N m |
| Impact category | 6 |
| Surface | Nickel-plated |
| Order no. nickel-plated | 10062290 |
| Type | MSKV 48 |
| Packing unit | 10 |
| ETIM-Classification | EC000441 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE WISKA EN.pdf | 16 Mbytes |
|
| MSKV 48 10062290 EN_10062290.pdf | 269 Kbytes |
|
