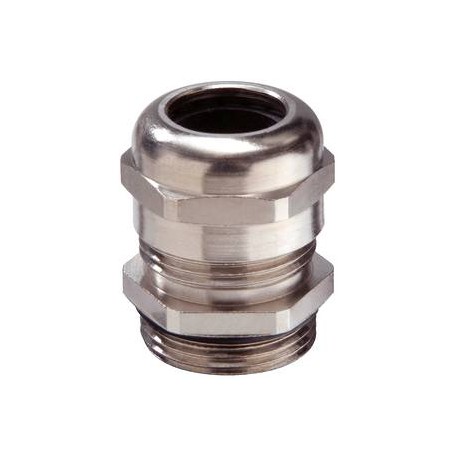

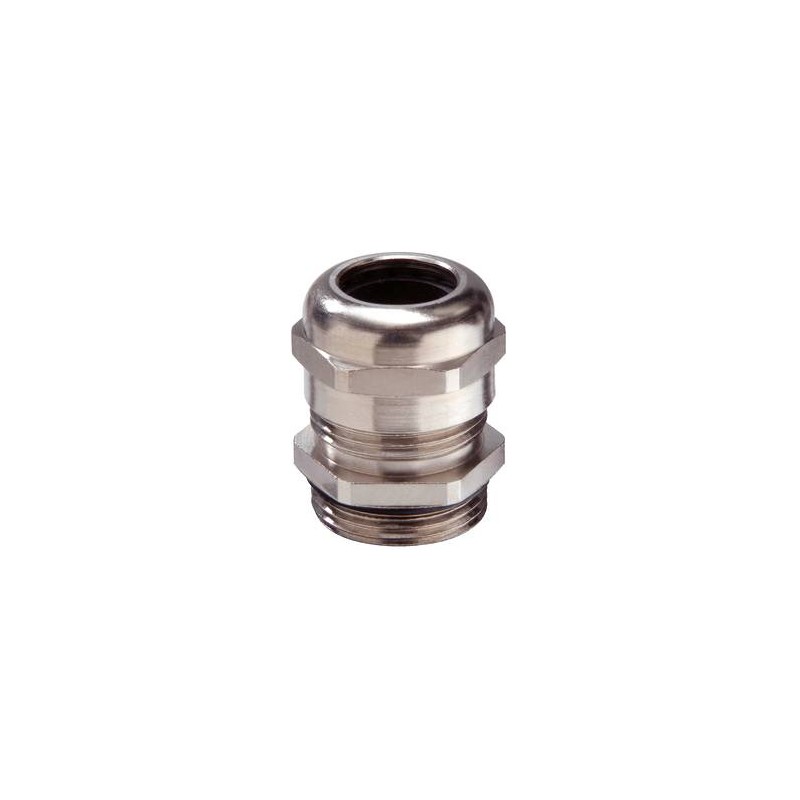

MSKV 29 10062287 WISKA Metal cable glands, IP68, range from 18.0mm to 25.0mm, pg 29 thread
MSKV 29
10062287
WISKA
25
Metal cable glands, IP68, range from 18.0mm to 25.0mm, pg 29 thread
Cable gland, brass nickel-plated, Pg 29
Home > WISKA
Brand new product in its original packaging covered by the warranties and certifications provided by WISKA
Best sellers
▲More info
▲Features
| Material cable gland | Brass nickel-plated |
| Material clamping cage | Polyamide |
| Material sealing gasket | TPV |
| Temp. range min | -40 °C |
| Temp. range max | 100 °C |
| Protection class | IP69, IP68 (5 bar 30 min) |
| Thread type | PG |
| Ø Connection thread D | 29 |
| Length screw-in thread L | 8 mm |
| Ø cable diameter min | 18 mm |
| Ø cable diameter max | 25 mm |
| Key width SW | 40 mm |
| Collar diameter (E) | 44 mm |
| Total length TL | 34,5 mm - 41,5 mm |
| Install. torques fitting | 45 N m |
| Install. torques cap nut | 25 N m |
| Impact category | 6 |
| Surface | Nickel-plated |
| Order no. nickel-plated | 10062287 |
| Type | MSKV 29 |
| Packing unit | 25 |
| ETIM-Classification | EC000441 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE WISKA EN.pdf | 16 Mbytes |
|
| MSKV 29 10062287 EN_10062287.pdf | 270 Kbytes |
|
