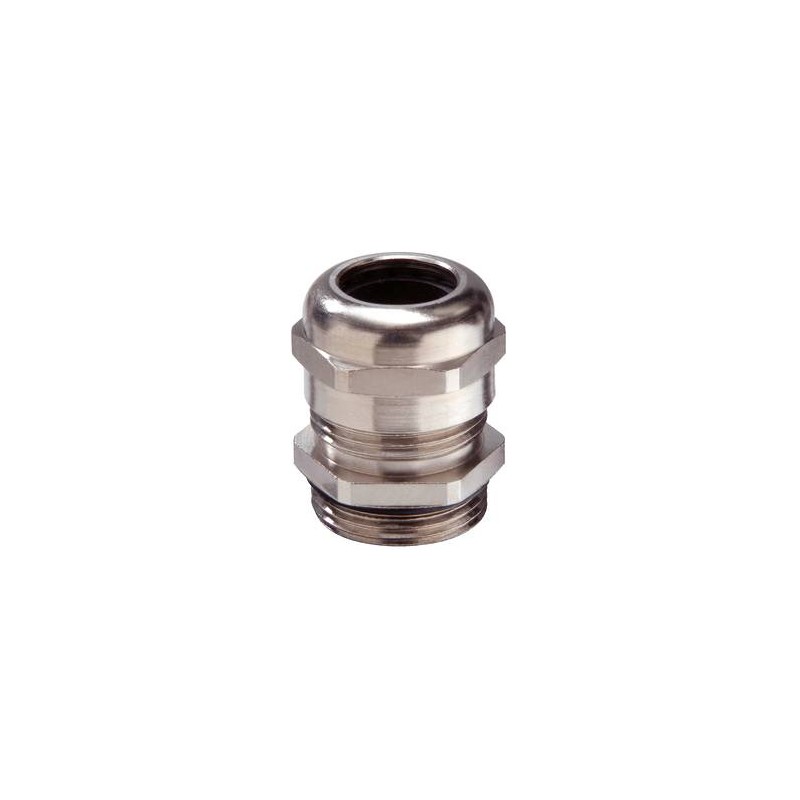

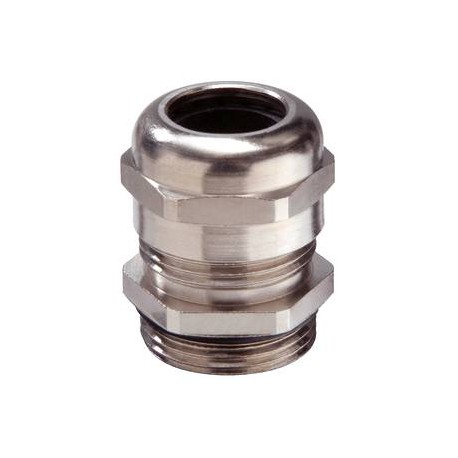

MSKV 16 10062285 WISKA Metal cable glands, IP68, range from 10.0mm to 14.0mm, pg 16 thread
MSKV 16
10062285
WISKA
50
Metal cable glands, IP68, range from 10.0mm to 14.0mm, pg 16 thread
Cable gland, brass nickel-plated, Pg 16
Home > WISKA
Brand new product in its original packaging covered by the warranties and certifications provided by WISKA
Best sellers
▲More info
▲Features
| Material cable gland | Brass nickel-plated |
| Material clamping cage | Polyamide |
| Material sealing gasket | TPV |
| Temp. range min | -40 °C |
| Temp. range max | 100 °C |
| Protection class | IP69, IP68 (5 bar 30 min) |
| Thread type | PG |
| Ø Connection thread D | 16 |
| Length screw-in thread L | 6,5 mm |
| Ø cable diameter min | 10 mm |
| Ø cable diameter max | 14 mm |
| Key width SW | 24 mm |
| Collar diameter (E) | 27 mm |
| Total length TL | 26 mm - 30 mm |
| Install. torques fitting | 25 N m |
| Install. torques cap nut | 13 N m |
| Impact category | 6 |
| Surface | Nickel-plated |
| Order no. nickel-plated | 10062285 |
| Type | MSKV 16 |
| Packing unit | 50 |
| ETIM-Classification | EC000441 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE WISKA EN.pdf | 16 Mbytes |
|
| MSKV 16 10062285 EN_10062285.pdf | 269 Kbytes |
|
