MFD 40/07/070
10064348
WISKA
25

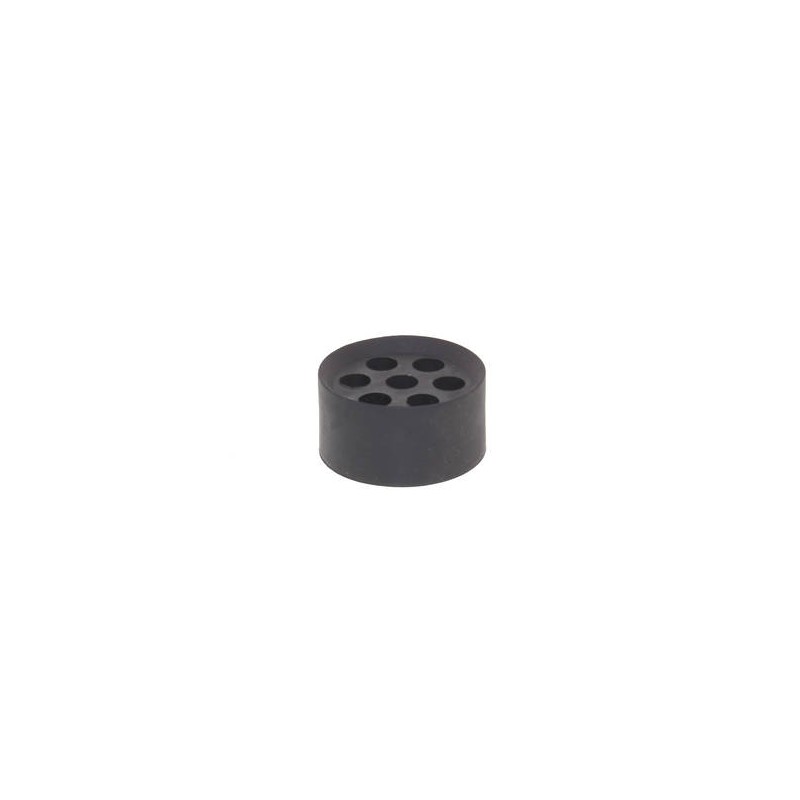

IP66 multi-cable gasket for M40 press, 7 cables from 5.0mm to 7.0mm
Multiple sealing insert
Home > WISKA
* Brand new product in its original packaging covered by the warranties and certifications provided by WISKA
Thank you for your interest in our products; we hope the delivery time indicated is to your convenience.
While the order is being processed you can select the type of shipment that best suits your needs: 24-hour air express, standard 48-72 hour land, etc.
Material | Thermoplastic elastomer |
Temp. range min | -40 °C |
Temp. range max | 100 °C |
Protection class | IP66 / IP68 |
Ø cable diameter min | 5 mm |
Ø cable diameter max | 7 mm |
Quantity of cable | 7 |
BxL | 35,6 x 18,3 mm |
Product Color | RAL 9005 |
Using for cable gland | SPRINT 40 |
Order no. RAL 9005 | 10064348 |
Type | MFD 40/07/070 |
Packing unit | 25 |
ETIM-Classification | EC000441 |
Remarks: IP68: Ø cable diameter min. = Ø cable diameter max. - 10%, but not bigger than 1 mm under the Ø cable diameter max. IP66: 7 cables Ø 5 - 7 mm |
Title: | Size: | Type: |
---|---|---|
PDF CATALOGUE WISKA EN.pdf | 12 Mbytes | |
MFD 40/07/070 10064348 EN_10064348.pdf | 142 Kbytes |
