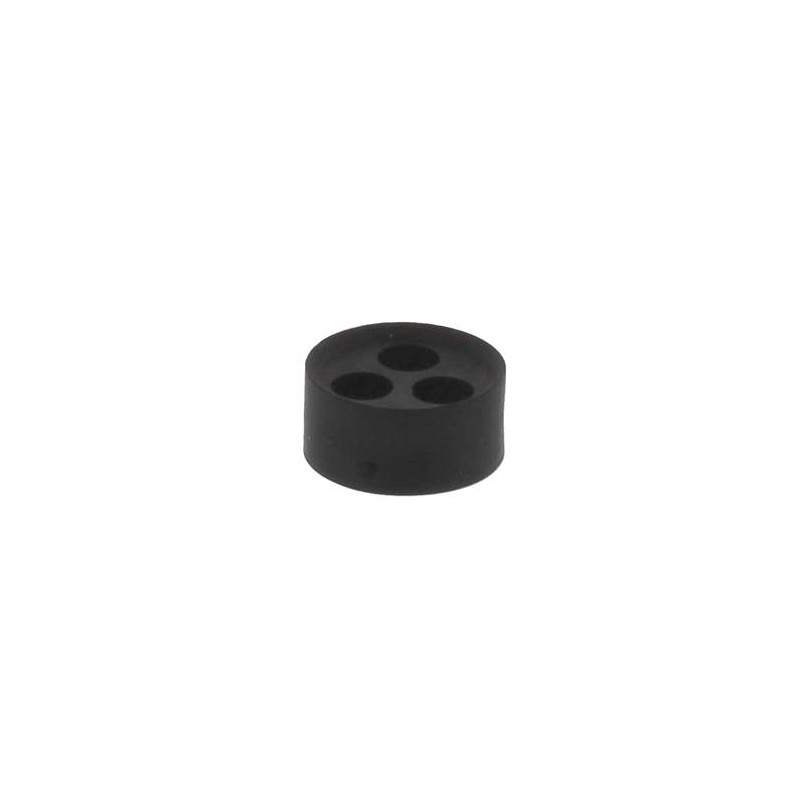

MFD 32/03/080 10101018 WISKA IP66 multi-cable gasket for M32 press, 3 cables from 6.0mm to 8.0mm
MFD 32/03/080
10101018
WISKA
25
IP66 multi-cable gasket for M32 press, 3 cables from 6.0mm to 8.0mm
Multiple sealing insert
Home > WISKA
* Brand new product in its original packaging covered by the warranties and certifications provided by WISKA
Best sellers
▲More info
▲Features
| Material | Thermoplastic elastomer |
| Temp. range min | -40 °C |
| Temp. range max | 100 °C |
| Protection class | IP66 / IP68 |
| Ø cable diameter min | 6 mm |
| Ø cable diameter max | 8 mm |
| Quantity of cable | 3 |
| BxL | 25,6 x 12,0 mm |
| Product Color | RAL 9005 |
| Using for cable gland | SPRINT 32 |
| Order no. RAL 9005 | 10101018 |
| Type | MFD 32/03/080 |
| Packing unit | 25 |
| ETIM-Classification | EC000441 |
| Remarks: IP68: Ø cable diameter min. = Ø cable diameter max. - 10%, but not bigger than 1 mm under the Ø cable diameter max. IP66: 3 cables Ø 6 - 8 mm | |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE WISKA EN.pdf | 12 Mbytes |
|
| MFD 32/03/080 10101018 EN_10101018.pdf | 126 Kbytes |
|
