WISKAMFD 32/03/065 10102169 WISKA IP66 multi-cable gasket for M32 press, 3 cables from 4.5mm to 6.5mm

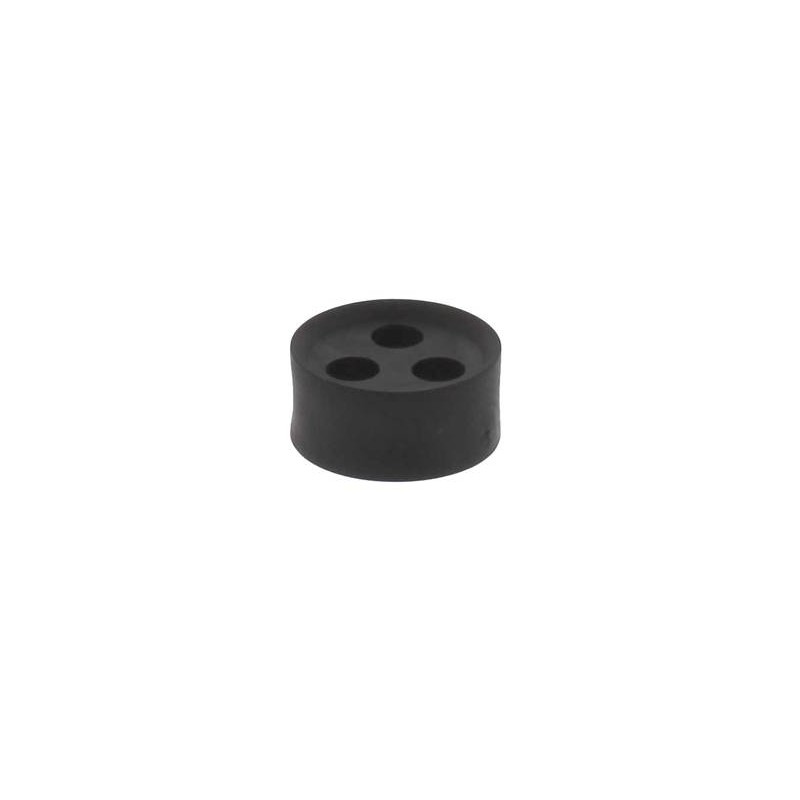

WISKA MFD 32/03/065 10102169 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

MFD 32/03/065 10102169 WISKA IP66 multi-cable gasket for M32 press, 3 cables from 4.5mm to 6.5mm

Reference: MFD 32/03/065

Code: 10102169

Manufacturer: WISKA

Description:

IP66 multi-cable gasket for M32 press, 3 cables from 4.5mm to 6.5mm
Multiple sealing insert

Categories:

  • WISKA

Brand new product in its original packaging covered by the warranties and certifications provided by WISKA

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

Total: 39,87 €

Unit Price: 1,5946 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 2-3 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Features

LogoLogoLogo
MaterialThermoplastic elastomer
Temp. range min-40 °C
Temp. range max100 °C
Protection classIP66 / IP68
Ø cable diameter min4,5 mm
Ø cable diameter max6,5 mm
Quantity of cable3
BxL25,6 x 12,0 mm
Product ColorRAL 9005
Using for cable glandSPRINT 32
Order no. RAL 900510102169
TypeMFD 32/03/065
Packing unit25
ETIM-ClassificationEC000441
Remarks:

IP68: Ø cable diameter min. = Ø cable diameter max. - 10%, but not bigger than 1 mm under the Ø cable diameter max.

IP66: 3 cables Ø 4,5 - 6,5 mm

DATASHEET - PDF

Title
Size
Type
MFD 32/03/065 10102169 EN_10102169.pdf
125 Kbytes
PDF CATALOGUE WISKA EN
16 Mbytes
