MFD 25/03/070 RW
10106735
WISKA
25
IP66 multi-cable gasket for M25 press, 3 cables from 5.0mm to 7.0mm, EN 45545

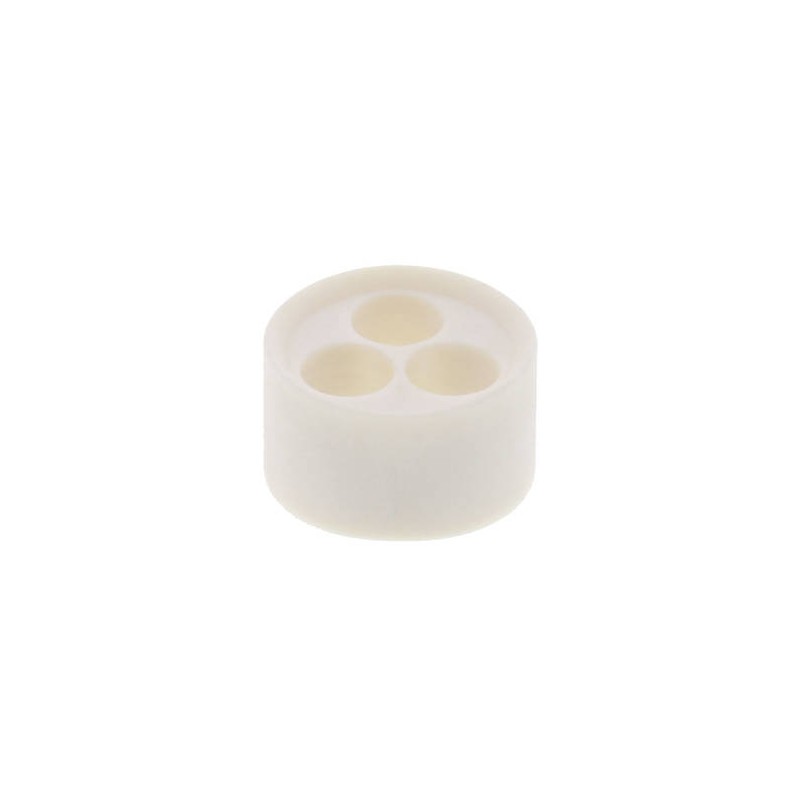

Railway multiple sealing insert, TPE, white, M25
Home > WISKA
* Brand new product in its original packaging covered by the warranties and certifications provided by WISKA
Thank you for your interest in our products; we hope the delivery time indicated is to your convenience.
While the order is being processed you can select the type of shipment that best suits your needs: 24-hour air express, standard 48-72 hour land, etc.
Material | Thermoplastic elastomer |
Hazard level EN acc. 45545 | R22=HL3 / R23=HL3 / R24=HL3 |
Temp. range min | -40 °C |
Temp. range max | 100 °C |
Protection class | IP66 / IP68 |
Ø cable diameter min | 5 mm |
Ø cable diameter max | 7 mm |
Quantity of cable | 3 |
BxL | 20,6 x 11,5 mm |
Using for cable gland | SPRINT 25 |
Product Color | RAL 9010 |
WISKA-Order no. | 10106735 |
Type | MFD 25/03/070 RW |
Packing unit | 25 |
ETIM-Classification | EC000441 |
Remarks: - IP68: Ø cable diameter min. = Ø cable diameter max. - 10%, but not bigger than 1 mm under the Ø cable diameter max. |
Title: | Size: | Type: |
---|---|---|
PDF CATALOGUE WISKA EN.pdf | 12 Mbytes | |
MFD 25/03/070 RW 10106735 EN_10106735.pdf | 154 Kbytes |
