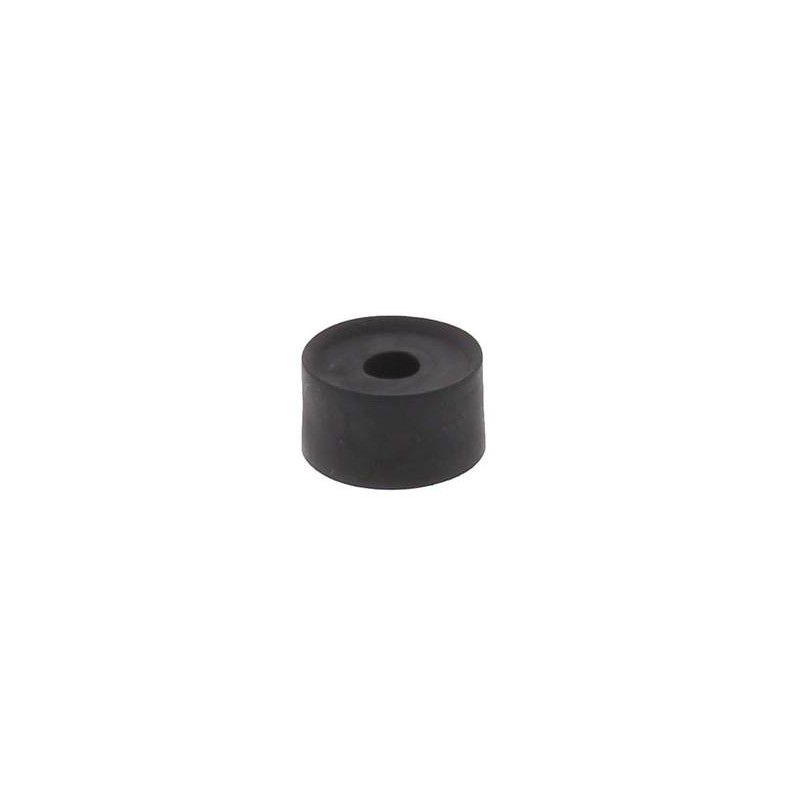

MFD 25/01/065 10060954 WISKA IP66 multi-cable gasket for M25 press, 1 cables from 4.0mm to 6.5mm
MFD 25/01/065
10060954
WISKA
25
IP66 multi-cable gasket for M25 press, 1 cables from 4.0mm to 6.5mm
Multiple sealing insert
Home > WISKA
* Brand new product in its original packaging covered by the warranties and certifications provided by WISKA
Best sellers
▲More info
▲Features
| Material | Thermoplastic elastomer |
| Temp. range min | -40 °C |
| Temp. range max | 100 °C |
| Protection class | IP66 / IP68 |
| Ø cable diameter min | 4 mm |
| Ø cable diameter max | 6,5 mm |
| Quantity of cable | 1 |
| BxL | 20,6 x 11,5 mm |
| Product Color | RAL 9005 |
| Using for cable gland | SPRINT 25 |
| Order no. RAL 9005 | 10060954 |
| Type | MFD 25/01/065 |
| Packing unit | 25 |
| ETIM-Classification | EC000441 |
| Remarks: IP68: Ø cable diameter min. = Ø cable diameter max. - 10%, but not bigger than 1 mm under the Ø cable diameter max. IP66: 1 cable Ø 4 - 6,5 mm | |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE WISKA EN.pdf | 12 Mbytes |
|
| MFD 25/01/065 10060954 EN_10060954.pdf | 126 Kbytes |
|
