WISKAMFD 20/03/045 10102306 WISKA IP66 multi-cable gasket for M20 press, 3 cables from 2.5mm to 4.5mm

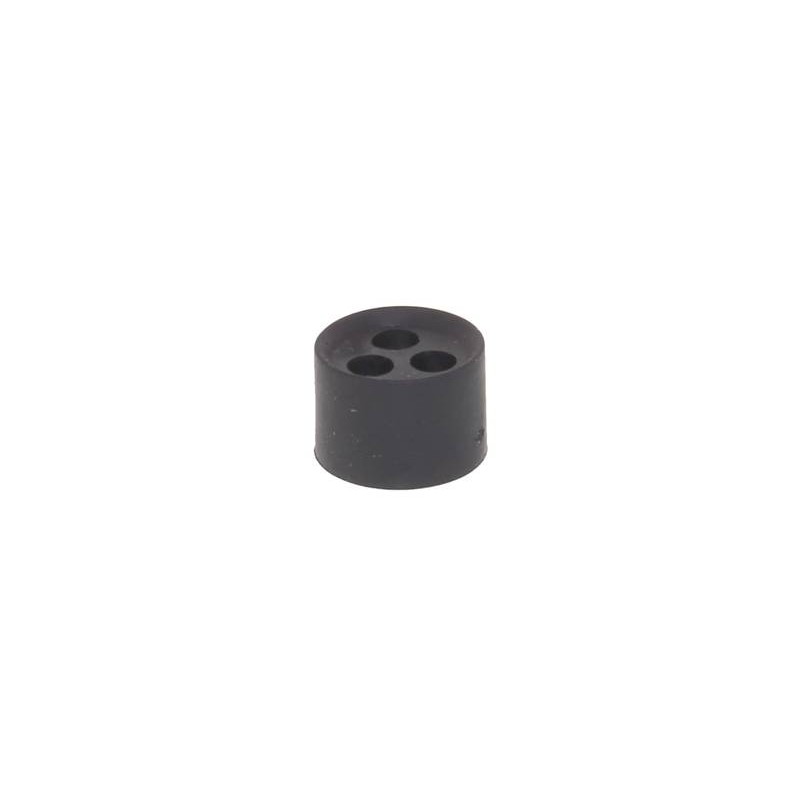

WISKA MFD 20/03/045 10102306 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

MFD 20/03/045 10102306 WISKA IP66 multi-cable gasket for M20 press, 3 cables from 2.5mm to 4.5mm

Reference: MFD 20/03/045

Code: 10102306

Manufacturer: WISKA

Description:

IP66 multi-cable gasket for M20 press, 3 cables from 2.5mm to 4.5mm
Multiple sealing insert

Categories:

  • WISKA

Brand new product in its original packaging covered by the warranties and certifications provided by WISKA

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

Total: 26,36 €

Unit Price: 1,0543 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 3-4 weeks.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Features

LogoLogoLogo
MaterialThermoplastic elastomer
Temp. range min-40 °C
Temp. range max100 °C
Protection classIP66 / IP68
Ø cable diameter min2,5 mm
Ø cable diameter max4,5 mm
Quantity of cable3
BxL16,6 x 11,5 mm
Product ColorRAL 9005
Using for cable glandSPRINT 20
Order no. RAL 900510102306
TypeMFD 20/03/045
Packing unit25
ETIM-ClassificationEC000441
Remarks:

IP68: Ø cable diameter min. = Ø cable diameter max. - 10%, but not bigger than 1 mm under the Ø cable diameter max.

IP66: 3 cables Ø 2,5 - 4,5 mm

DATASHEET - PDF

Title
Size
Type
MFD 20/03/045 10102306 EN_10102306.pdf
126 Kbytes
PDF CATALOGUE WISKA EN
16 Mbytes
