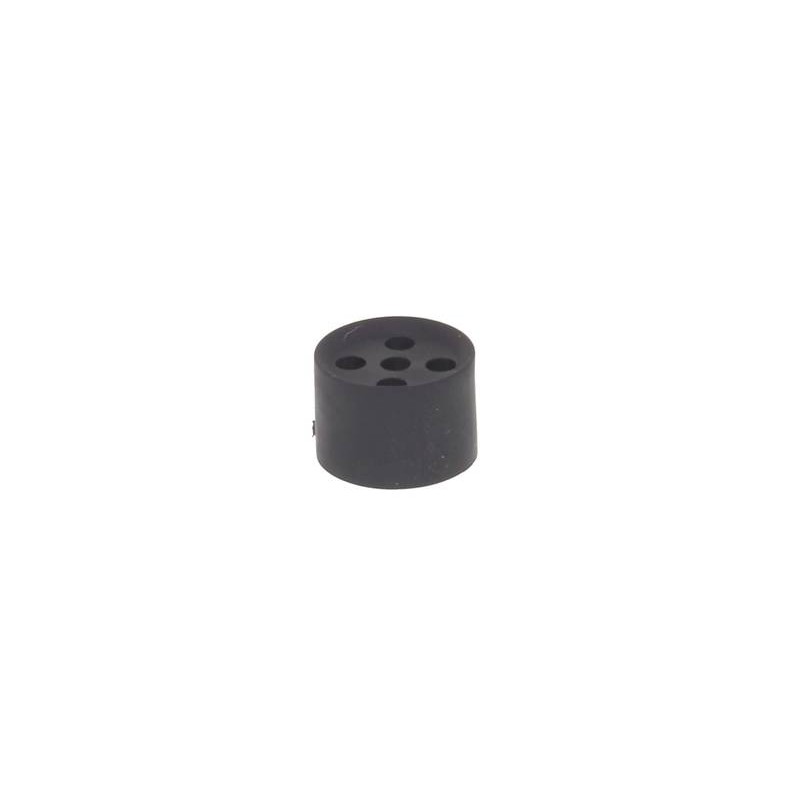

MFD 16/05/020 10105950 WISKA IP66 multi-cable gasket for M16 press, 5 cables from 1.0mm to 2.0mm
MFD 16/05/020
10105950
WISKA
25
IP66 multi-cable gasket for M16 press, 5 cables from 1.0mm to 2.0mm
Multiple sealing insert
Home > WISKA
Brand new product in its original packaging covered by the warranties and certifications provided by WISKA
Best sellers
▲More info
▲Features
| Material | Thermoplastic elastomer |
| Temp. range min | -40 °C |
| Temp. range max | 100 °C |
| Protection class | IP66 / IP68 |
| Ø cable diameter min | 1 mm |
| Ø cable diameter max | 2 mm |
| Quantity of cable | 5 |
| BxL | 13 x 9,7 mm |
| Product Color | RAL 9005 |
| Using for cable gland | SPRINT 16 |
| Order no. RAL 9005 | 10105950 |
| Type | MFD 16/05/020 |
| Packing unit | 25 |
| Remarks: IP68: Ø cable diameter min. = Ø cable diameter max. - 10%, but not bigger than 1 mm under the Ø cable diameter max. IP66: 5 cables Ø 1 - 2 mm | |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE WISKA EN.pdf | 16 Mbytes |
|
| MFD 16/05/020 10105950 EN_10105950.pdf | 126 Kbytes |
|
