MFD 16/02/040 RW 10105929 WISKA IP66 multi-cable gasket for M16 press, 2 cables from 2.0mm to 4.0mm, EN 45545
MFD 16/02/040 RW
10105929
WISKA
25
IP66 multi-cable gasket for M16 press, 2 cables from 2.0mm to 4.0mm, EN 45545

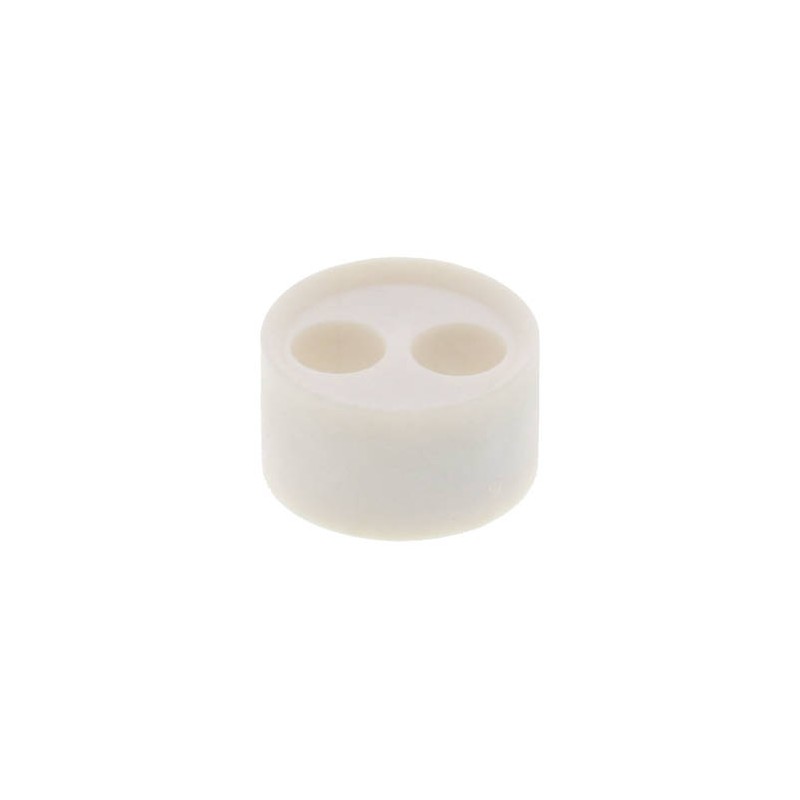

Railway multiple sealing insert, TPE, white, M16
Home > WISKA
Brand new product in its original packaging covered by the warranties and certifications provided by WISKA
Best sellers
▲More info
▲Features
| Material | Thermoplastic elastomer |
| Hazard level EN acc. 45545 | R22=HL3 / R23=HL3 / R24=HL3 |
| Temp. range min | -40 °C |
| Temp. range max | 100 °C |
| Protection class | IP66 / IP68 |
| Ø cable diameter min | 2 mm |
| Ø cable diameter max | 4 mm |
| Quantity of cable | 2 |
| BxL | 13 x 9,7 mm |
| Using for cable gland | SPRINT 16 |
| Product Color | RAL 9010 |
| WISKA-Order no. | 10105929 |
| Type | MFD 16/02/040 RW |
| Packing unit | 25 |
| ETIM-Classification | EC000441 |
| Remarks: - IP68: Ø cable diameter min. = Ø cable diameter max. - 10%, but not bigger than 1 mm under the Ø cable diameter max. | |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE WISKA EN.pdf | 16 Mbytes |
|
| MFD 16/02/040 RW 10105929 EN_10105929.pdf | 154 Kbytes |
|
