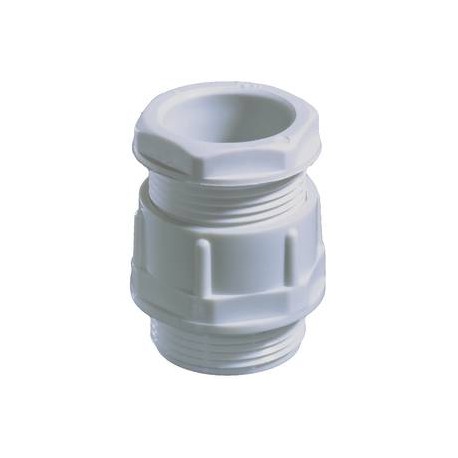

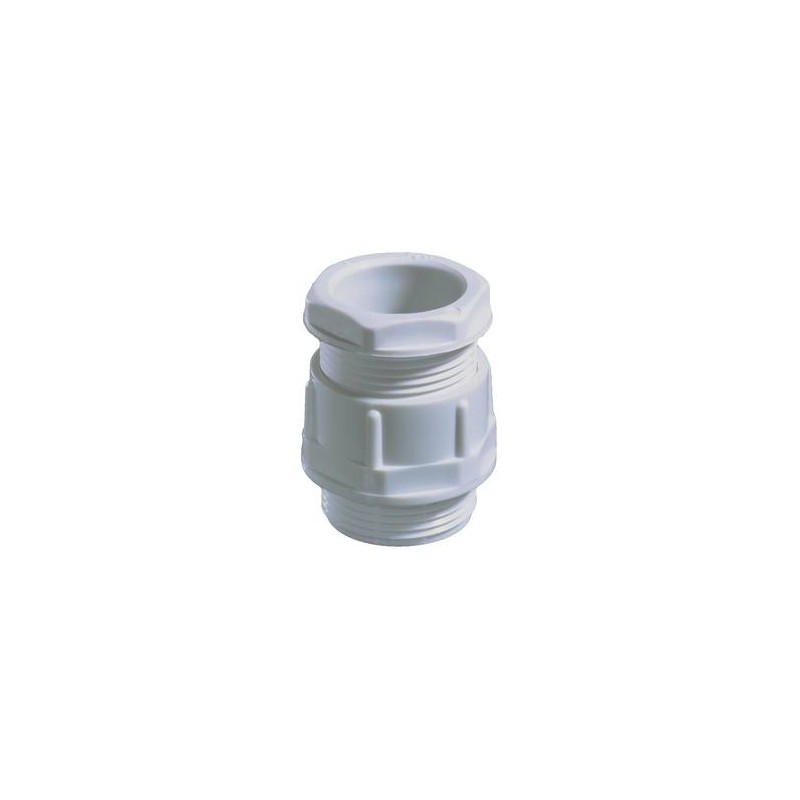

KVG 48 10060150 WISKA Light grey cable glands RAL 7035, PA IP54 range from 36 to 44mm, thread PG 48
KVG 48
10060150
WISKA
5
Light grey cable glands RAL 7035, PA IP54 range from 36 to 44mm, thread PG 48
Cone cable gland, polyamide, Pg 48, RAL 7035
Home > WISKA
Brand new product in its original packaging covered by the warranties and certifications provided by WISKA
Best sellers
▲More info
▲Features
| Material cable gland | Polyamide, fibre reinforced |
| Temp. range min | -20 °C |
| Temp. range max | 80 °C |
| Protection class | IP54 |
| Thread type | PG |
| Ø Connection thread D | 48 |
| Length screw-in thread L | 15 mm |
| Ø cable diameter min | 38 mm |
| Ø cable diameter max | 44 mm |
| Key width SW1 | 60 mm |
| Key width SW2 | 65 mm |
| Collar diameter E1 | 65 mm |
| Collar diameter E2 | 69 mm |
| Total length TL | 60 mm |
| Product Color | RAL 7035 |
| Order no. RAL 7035 | 10060150 |
| Type | KVG 48 |
| Packing unit | 5 |
| ETIM-Classification | EC000441 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE WISKA EN.pdf | 16 Mbytes |
|
| KVG 48 10060150 EN_10060150.pdf | 207 Kbytes |
|
