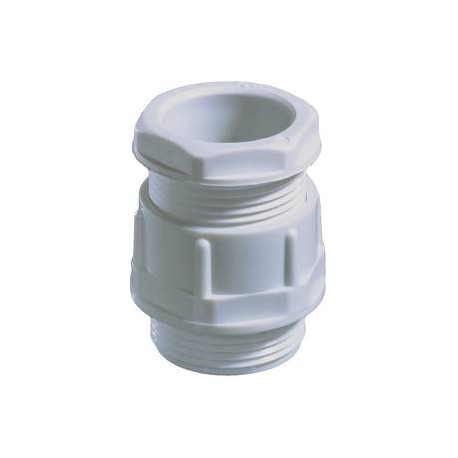

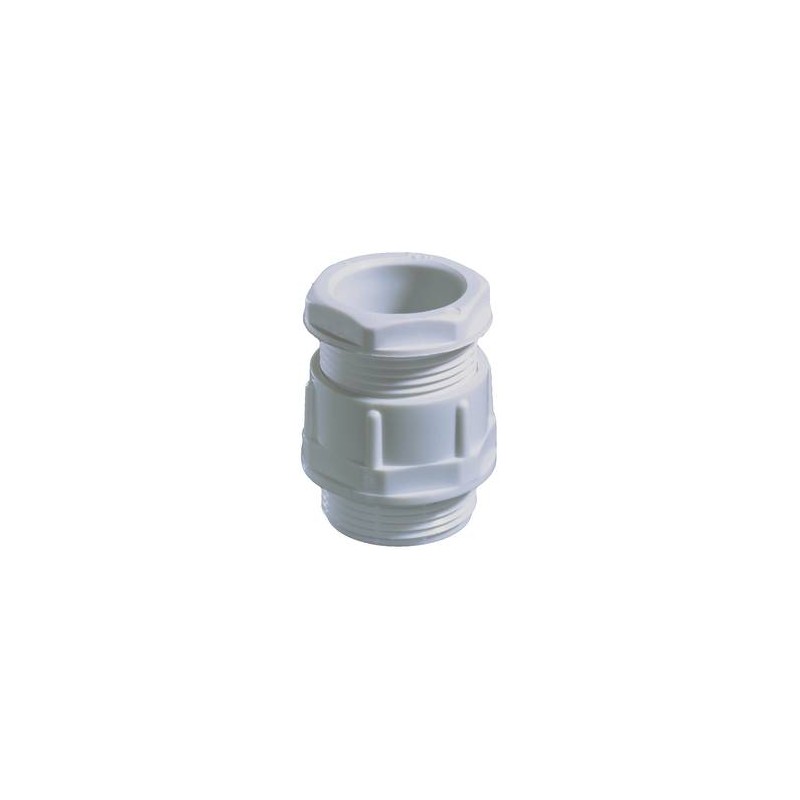

KVG 36 10060148 WISKA Light grey cable glands RAL 7035, PA IP54 range from 22 to 32mm, thread PG 36
KVG 36
10060148
WISKA
10
Light grey cable glands RAL 7035, PA IP54 range from 22 to 32mm, thread PG 36
Cone cable gland, polyamide, Pg 36, RAL 7035
Home > WISKA
Brand new product in its original packaging covered by the warranties and certifications provided by WISKA
Best sellers
▲More info
▲Features
| Material cable gland | Polyamide, fibre reinforced |
| Temp. range min | -20 °C |
| Temp. range max | 80 °C |
| Protection class | IP54 |
| Thread type | PG |
| Ø Connection thread D | 36 |
| Length screw-in thread L | 13 mm |
| Ø cable diameter min | 25 mm |
| Ø cable diameter max | 32 mm |
| Key width SW1 | 50 mm |
| Key width SW2 | 53 mm |
| Collar diameter E1 | 54 mm |
| Collar diameter E2 | 57 mm |
| Total length TL | 54 mm |
| Product Color | RAL 7035 |
| Order no. RAL 7035 | 10060148 |
| Type | KVG 36 |
| Packing unit | 10 |
| ETIM-Classification | EC000441 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE WISKA EN.pdf | 16 Mbytes |
|
| KVG 36 10060148 EN_10060148.pdf | 206 Kbytes |
|
