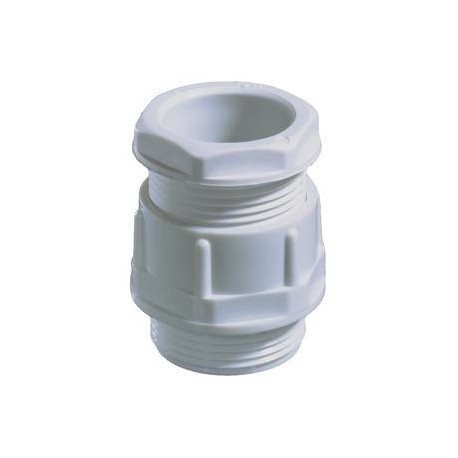

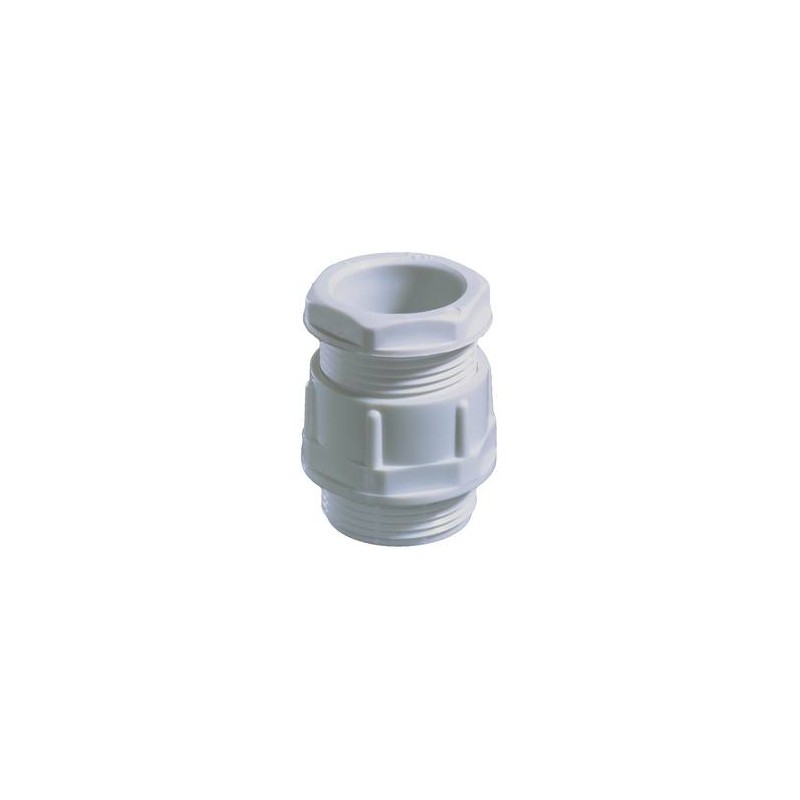

KVG 21 10060146 WISKA Light grey cable glands RAL 7035, PA IP54 range from 10 to 18mm, thread PG 21
KVG 21
10060146
WISKA
25
Light grey cable glands RAL 7035, PA IP54 range from 10 to 18mm, thread PG 21
Cone cable gland, polyamide, Pg 21, RAL 7035
Home > WISKA
Brand new product in its original packaging covered by the warranties and certifications provided by WISKA
Best sellers
▲More info
▲Features
| Material cable gland | Polyamide, fibre reinforced |
| Temp. range min | -20 °C |
| Temp. range max | 80 °C |
| Protection class | IP54 |
| Thread type | PG |
| Ø Connection thread D | 21 |
| Length screw-in thread L | 11 mm |
| Ø cable diameter min | 14 mm |
| Ø cable diameter max | 18 mm |
| Key width SW1 | 30 mm |
| Key width SW2 | 33 mm |
| Collar diameter E1 | 33 mm |
| Collar diameter E2 | 36 mm |
| Total length TL | 43 mm |
| Product Color | RAL 7035 |
| Order no. RAL 7035 | 10060146 |
| Type | KVG 21 |
| Packing unit | 25 |
| ETIM-Classification | EC000441 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE WISKA EN.pdf | 16 Mbytes |
|
| KVG 21 10060146 EN_10060146.pdf | 206 Kbytes |
|
