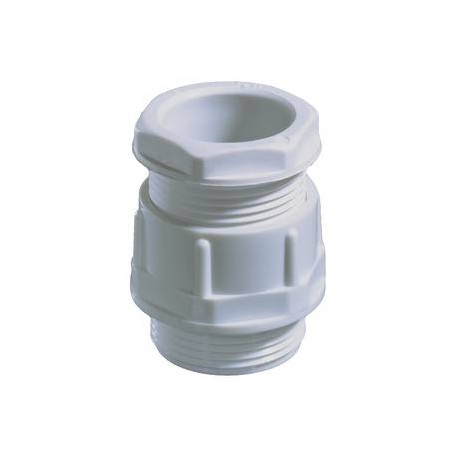

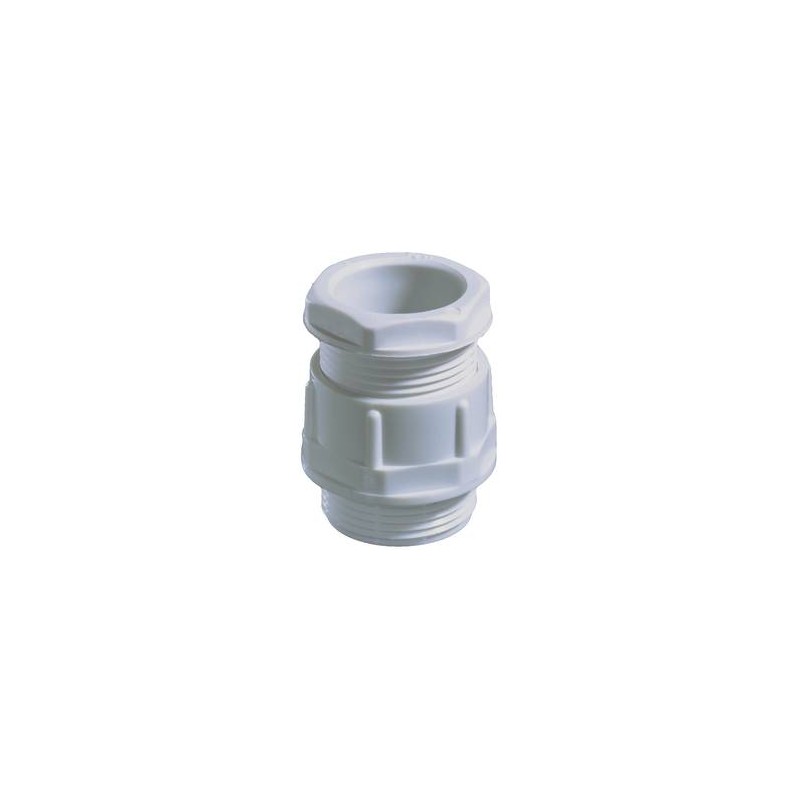

KVG 13,5 10060144 WISKA Light grey cable glands RAL 7035, PA IP54 range from 6 to 12mm, thread PG 13
KVG 13,5
10060144
WISKA
50
Light grey cable glands RAL 7035, PA IP54 range from 6 to 12mm, thread PG 13
Cone cable gland, polyamide, Pg 13,5 RAL 7035
Home > WISKA
Brand new product in its original packaging covered by the warranties and certifications provided by WISKA
Best sellers
▲More info
▲Features
| Material cable gland | Polyamide, fibre reinforced |
| Temp. range min | -20 °C |
| Temp. range max | 80 °C |
| Protection class | IP54 |
| Thread type | PG |
| Ø Connection thread D | 13,5 |
| Length screw-in thread L | 9 mm |
| Ø cable diameter min | 9 mm |
| Ø cable diameter max | 12 mm |
| Key width SW1 | 21 mm |
| Key width SW2 | 24 mm |
| Collar diameter E1 | 23 mm |
| Collar diameter E2 | 27 mm |
| Total length TL | 35 mm |
| Product Color | RAL 7035 |
| Order no. RAL 7035 | 10060144 |
| Type | KVG 13,5 |
| Packing unit | 50 |
| ETIM-Classification | EC000441 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE WISKA EN.pdf | 16 Mbytes |
|
| KVG 13,5 10060144 EN_10060144.pdf | 206 Kbytes |
|
