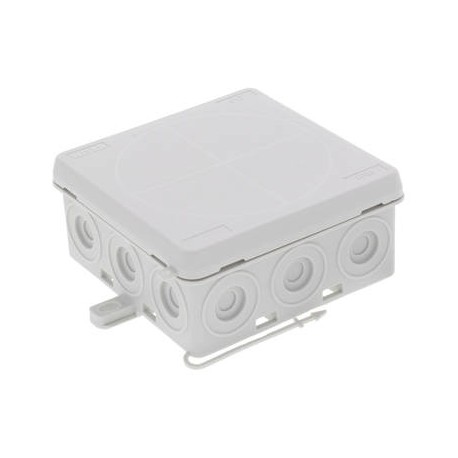

KA 012/empty 10109427 WISKA Halogen-free KA IP55 box, 86x86x41, light grey
KA 012 LG
10109427
WISKA
10
Halogen-free KA IP55 box, 86x86x41, light grey
Junction box 86x86x41mm, plastic, RAL 7035
Home > WISKA
* Brand new product in its original packaging covered by the warranties and certifications provided by WISKA
Best sellers
▲More info
▲Features
| Material | Polyethylene / Polypropylene |
| Protection class | IP55 |
| Temp. range min | -30 °C |
| Temp. range max | 60 °C |
| Temperatures during install. | -5 °C - 60 °C |
| Glow wire test | 750 °C |
| Voltage | 400 V |
| Rated cross section | 4 mm² |
| Fixing | 2 external mounting feet |
| Ø cable diameter min | 7 mm |
| Ø cable diameter max | 12 mm |
| External dimensions LxWxH | 86 x 86 x 41 mm |
| Using for cable gland |  |
| Product Color | RAL 7035 |
| Order no. RAL 7035 | 10109427 |
| Type | KA 012 LG |
| Packing unit | 10 |
| ETIM-Classification | EC002600 |
| Remarks: Fixture: with cable ties, 2 external mounting feet Equipment: 12 self-sealing, cutable cable entries at the side, 4 on the bottom captive cover | |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE WISKA EN.pdf | 12 Mbytes |
|
| KA 012 LG 10109427 EN_10109427.pdf | 301 Kbytes |
|
