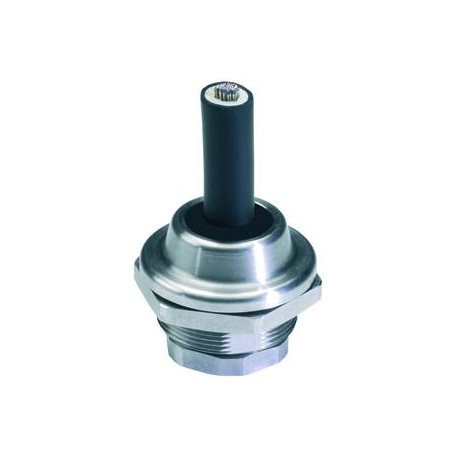

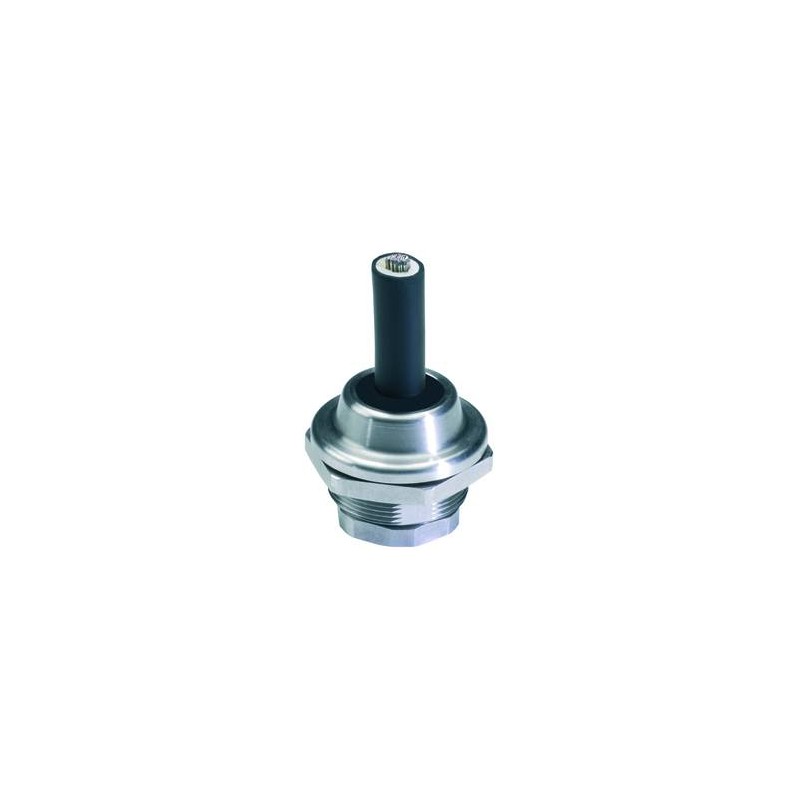

HGSM 63-E Pack 10101860 WISKA AISI 303 stainless glands, IP69K pack together for 32 to 49mm range, M63 thread
HGSM 63-E Pack
10101860
WISKA
AISI 303 stainless glands, IP69K pack together for 32 to 49mm range, M63 thread
Cable gland, stainless steel, M63
Home > WISKA
Brand new product in its original packaging covered by the warranties and certifications provided by WISKA
Best sellers
▲More info
▲Features
| Material cable gland | Stainless steel A2 (1.4305) |
| Material sealing gasket | EPDM |
| Temp. range min | -40 °C |
| Temp. range max | 120 °C |
| Protection class | IP69, IP68 (5 bar 30 min) |
| Thread type | M |
| Ø Connection thread D | 63 |
| Lead | 1,5 |
| Ø cable diameter min | 32 mm |
| Ø cable diameter max | 49 mm |
| Key width SW1 | 56 mm |
| Key width SW2 | 70 mm |
| Collar diameter E1 | 60 mm |
| Collar diameter E2 | 75 mm |
| LxWxS (max) | 59x63x10mm |
| BxL | 70x18mm |
| Total length TL | 42 mm - 60 mm |
| Advice | Incl. sealing rings, locknut |
| WISKA-Order no. | 10101860 |
| Type | HGSM 63-E pack |
| Packing unit | 1 |
| ETIM-Classification | EC000441 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE WISKA EN.pdf | 16 Mbytes |
|
| HGSM 63-E Pack 10101860 EN_10101860.pdf | 261 Kbytes |
|
