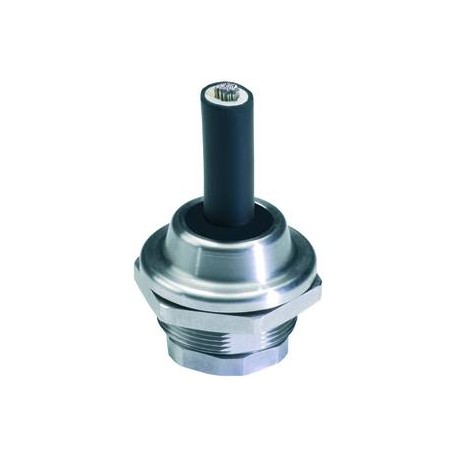

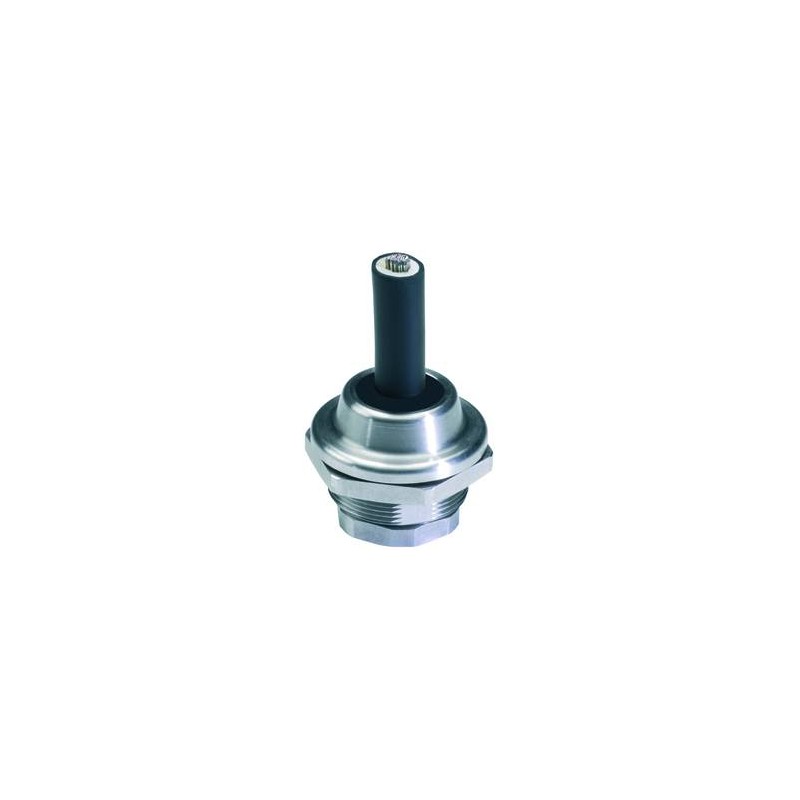

HGSM 16-E Pack 10101854 WISKA AISI 303 stainless glands, IP69K pack together for 2 to 9mm range, M16 thread
HGSM 16-E Pack
10101854
WISKA
AISI 303 stainless glands, IP69K pack together for 2 to 9mm range, M16 thread
Cable gland, stainless steel, M16
Home > WISKA
Brand new product in its original packaging covered by the warranties and certifications provided by WISKA
Best sellers
▲More info
▲Features
| Material cable gland | Stainless steel A2 (1.4305) |
| Material sealing gasket | EPDM |
| Temp. range min | -40 °C |
| Temp. range max | 120 °C |
| Protection class | IP69, IP68 (5 bar 30 min) |
| Thread type | M |
| Ø Connection thread D | 16 |
| Lead | 0,75 |
| Ø cable diameter min | 2 mm |
| Ø cable diameter max | 9 mm |
| Key width SW1 | 12 mm |
| Key width SW2 | 19 mm |
| Collar diameter E1 | 13 mm |
| Collar diameter E2 | 21 mm |
| LxWxS (max) | 14,5x16x5mm |
| BxL | 21x7mm |
| Total length TL | 17,5 mm - 24,5 mm |
| Advice | Incl. sealing rings, locknut |
| WISKA-Order no. | 10101854 |
| Type | HGSM 16-E pack |
| Packing unit | 1 |
| ETIM-Classification | EC000441 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE WISKA EN.pdf | 16 Mbytes |
|
| HGSM 16-E Pack 10101854 EN_10101854.pdf | 260 Kbytes |
|
