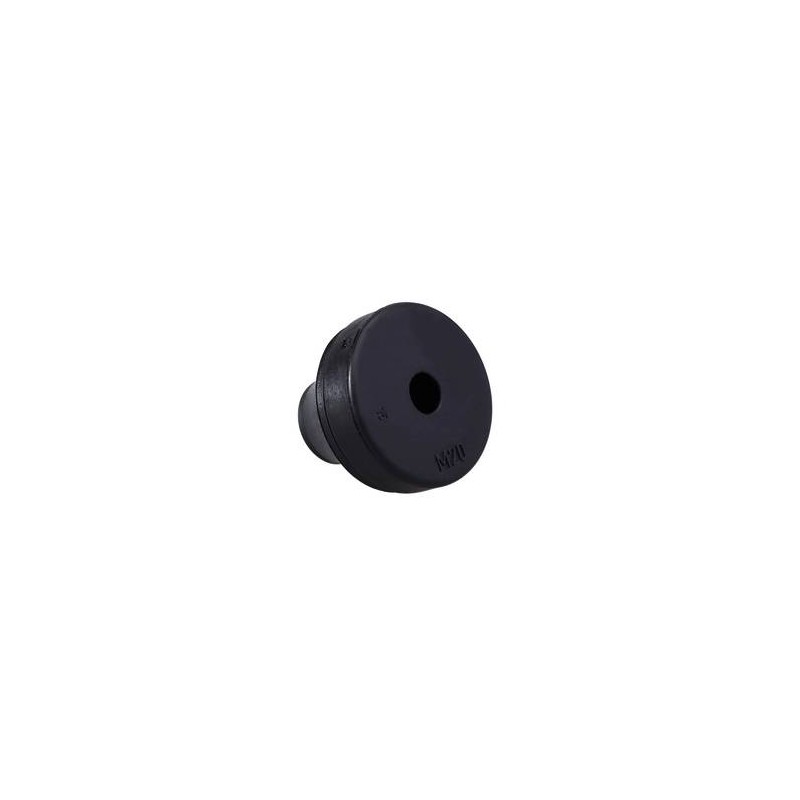

FD 40/B 50062896 WISKA Conical wall pass, black RAL 9005, IP66/67 for DN40, range from 19 to 28mm.
FD 40/B
50062896
WISKA
25
Conical wall pass, black RAL 9005, IP66/67 for DN40, range from 19 to 28mm.
FLIP cable grommet, EPDM, RAL 9005, M40
Home > WISKA
Brand new product in its original packaging covered by the warranties and certifications provided by WISKA
Best sellers
▲More info
▲Features
| Material | EPDM |
| Temp. range min | -40 °C |
| Temp. range max | 110 °C |
| Protection class | IP66 / IP67 |
| Thread type | M |
| Ø Connection thread D | 40 |
| Ø cable diameter min | 19 mm |
| Ø cable diameter max | 28 mm |
| Total length TL | 30 mm |
| Ø Drilling | 40 mm - 41 mm |
| Wall thickness S | 1 mm - 4 mm |
| Product Color | RAL 9005 |
| Order no. RAL 9005 | 50062896 |
| Type | FD 40 |
| Packing unit | 25 |
| ETIM-Classification | EC000451 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE WISKA EN.pdf | 16 Mbytes |
|
| FD 40/B 50062896 EN_50062896.pdf | 177 Kbytes |
|
