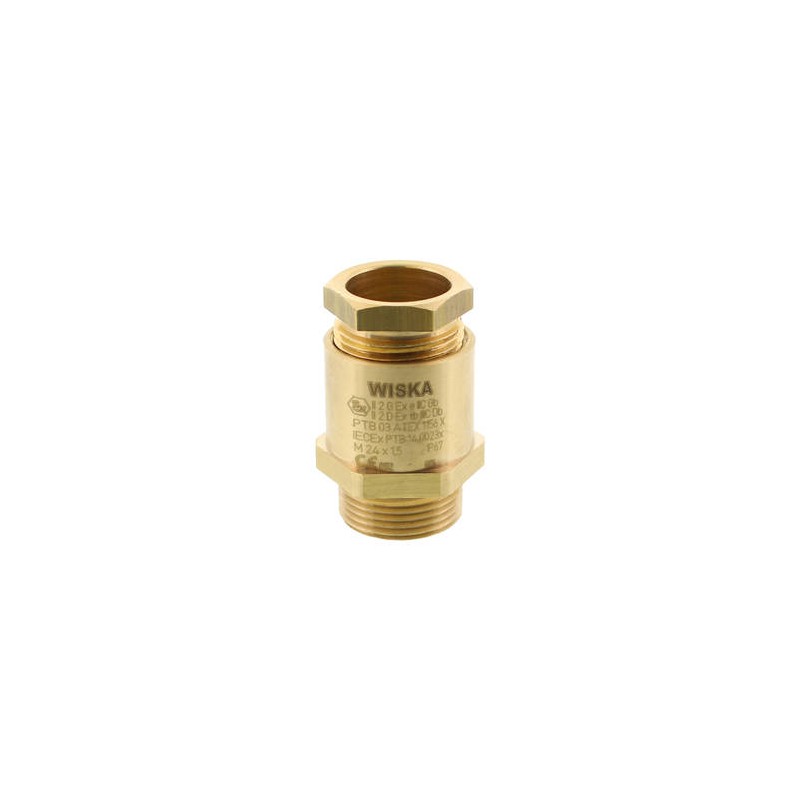

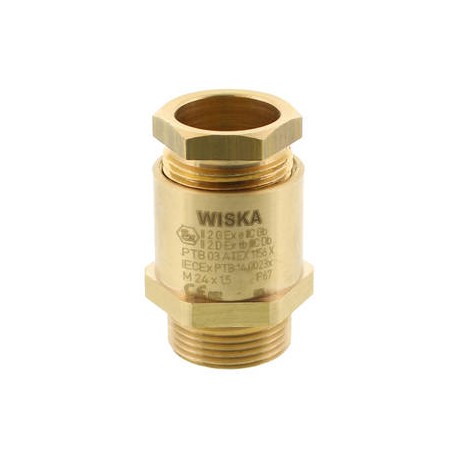

EX-KVM-32-Z-20 10030039 WISKA EMC "ATEX" metal cable glands, DIN 89280 "Z" IP54, range 18 to 20.5mm, thread ..
EX-KVM-32-Z-20
10030039
WISKA
EMC "ATEX" metal cable glands, DIN 89280 "Z" IP54, range 18 to 20.5mm, thread M32
Ex Cable gland hexagonal, brass, M32
Home > WISKA
* Brand new product in its original packaging covered by the warranties and certifications provided by WISKA
Best sellers
▲More info
▲Features
| Material cable gland | Brass |
| Material sealing gasket | EPDM |
| Temp. range min | -40 °C |
| Temp. range max | 120 °C |
| Protection class | IP66 / IP67 |
| Type of protection | Ex e, Ex tb |
| Ex-Certificate | IECEx, ATEX |
| Thread type | M |
| Ø Connection thread D | 32 |
| Lead | 1,5 |
| Length screw-in thread L | 12 mm |
| Ø cable diameter min | 18 mm |
| Ø cable diameter max | 20,5 mm |
| Key width SW1 | 30 mm |
| Key width SW | 36 mm |
| Key width SW2 | 36 mm |
| Total length TL | 49 mm - 53 mm |
| Install. torques fitting | 10 N m |
| Install. torques cap nut | 10 N m |
| Surface | Bright |
| Order no. bright | 10030039 |
| Type | EX-KVM-32-Z-20 |
| Packing unit | 1 |
| ETIM-Classification | EC000441 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE WISKA EN.pdf | 12 Mbytes |
|
| EX-KVM-32-Z-20 10030039 EN_10030039.pdf | 303 Kbytes |
|
