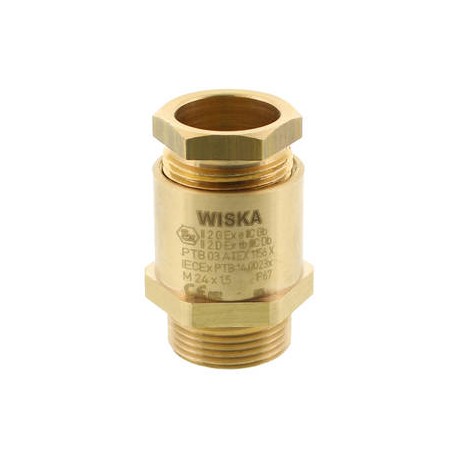

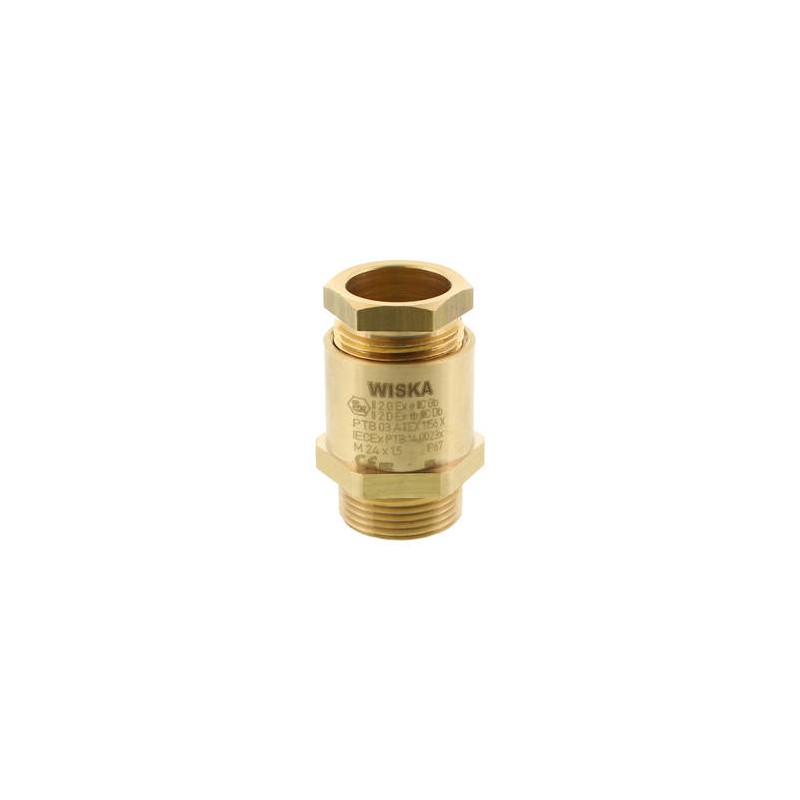

EX-KVM-24-W-16 10030012 WISKA Metal cable glands "ATEX", DIN 89280 "W" IP54, range from 14 to 16.5mm, thread..
EX-KVM-24-W-16
10030012
WISKA
Metal cable glands "ATEX", DIN 89280 "W" IP54, range from 14 to 16.5mm, thread M24
Ex-EMC Cable gland hexagonal, brass, M24
Home > WISKA
* Brand new product in its original packaging covered by the warranties and certifications provided by WISKA
Best sellers
▲More info
▲Features
| Material cable gland | Brass |
| Material sealing gasket | EPDM |
| Temp. range min | -40 °C |
| Temp. range max | 120 °C |
| Protection class | IP66 / IP67 |
| Type of protection | Ex e, Ex tb |
| Ex-Certificate | IECEx, ATEX |
| Thread type | M |
| Ø Connection thread D | 24 |
| Lead | 1,5 |
| Length screw-in thread L | 11 mm |
| Ø cable diameter min | 14 mm |
| Ø cable diameter max | 16,5 mm |
| Key width SW1 | 24 mm |
| Key width SW | 29 mm |
| Key width SW2 | 29 mm |
| Collar diameter E1 | 27 mm |
| Collar diameter E2 | 32 mm |
| Total length TL | 43 mm - 47 mm |
| Install. torques fitting | 10 N m |
| Install. torques cap nut | 10 N m |
| Surface | Bright |
| Order no. bright | 10030012 |
| Type | EX-KVM-24-W-16 |
| Packing unit | 1 |
| ETIM-Classification | EC000441 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG WISKA CABLE ENTRIES AND PROTECTION EN.pdf | 8 Mbytes |
|
| PDF CATALOG WISKA JUCTION BOXES EN.pdf | 3 Mbytes |
|
| PDF CATALOG WISKA LIGHTING INSTALLATION AND MARITIME APP EN.pdf | 5 Mbytes |
|
| EX-KVM-24-W-16 10030012 EN_10030012.pdf | 304 Kbytes |
|
