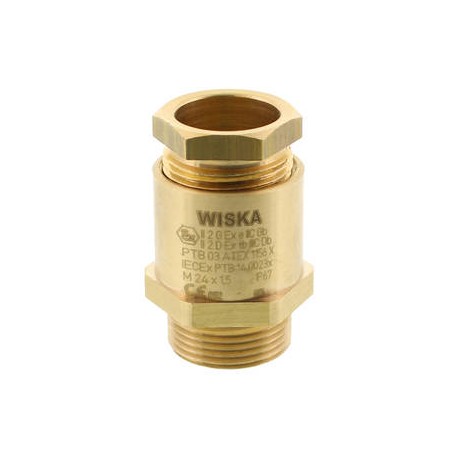

EX-KVM-18-Z-08 10030002 WISKA EMC "ATEX" metal cable glands, DIN 89280 "Z" IP54, range 7 to 8.5mm, thread M18
EX-KVM-18-Z-08
10030002
WISKA
EMC "ATEX" metal cable glands, DIN 89280 "Z" IP54, range 7 to 8.5mm, thread M18

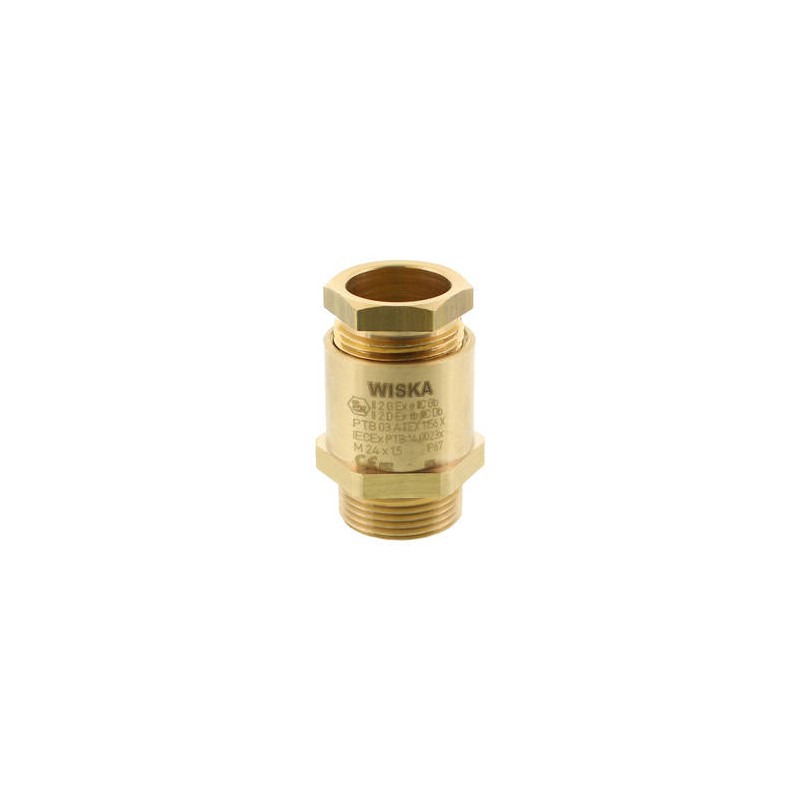

Ex Cable gland hexagonal, brass, M18
Home > WISKA
Brand new product in its original packaging covered by the warranties and certifications provided by WISKA
Best sellers
▲More info
▲Features
| Material cable gland | Brass |
| Material sealing gasket | EPDM |
| Temp. range min | -40 °C |
| Temp. range max | 120 °C |
| Protection class | IP66 / IP67 |
| Type of protection | Ex e, Ex tb |
| Ex-Certificate | IECEx, ATEX |
| Thread type | M |
| Ø Connection thread D | 18 |
| Lead | 1,5 |
| Length screw-in thread L | 10 mm |
| Ø cable diameter min | 7 mm |
| Ø cable diameter max | 8,5 mm |
| Key width SW1 | 19 mm |
| Key width SW | 24 mm |
| Key width SW2 | 24 mm |
| Collar diameter E1 | 22 mm |
| Collar diameter E2 | 26 mm |
| Total length TL | 40 mm - 43 mm |
| Install. torques fitting | 10 N m |
| Install. torques cap nut | 10 N m |
| Surface | Bright |
| Order no. bright | 10030002 |
| Type | EX-KVM-18-Z-08 |
| Packing unit | 1 |
| ETIM-Classification | EC000441 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE WISKA EN.pdf | 16 Mbytes |
|
| EX-KVM-18-Z-08 10030002 EN_10030002.pdf | 304 Kbytes |
|
