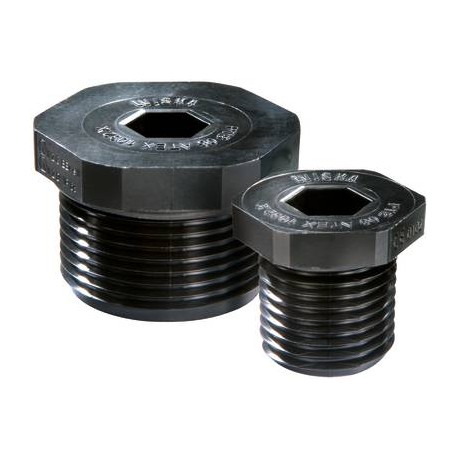

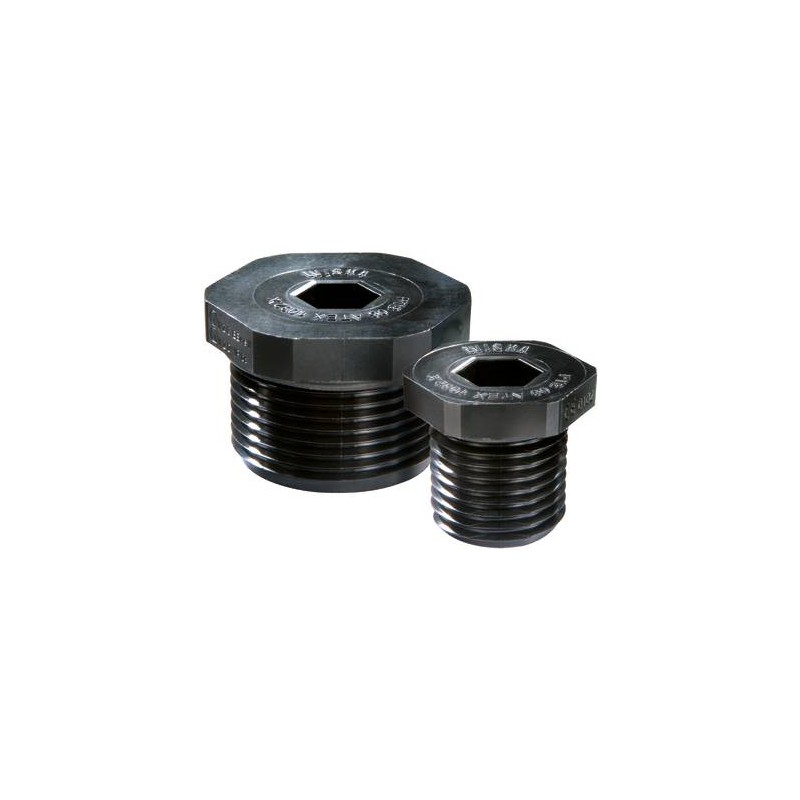

EX-EVSG 20 10065302 WISKA Hexagonal blind plug. Black PA "ATEX" IP68, thread M20
EX-EVSG 20
10065302
WISKA
100
Hexagonal blind plug. Black PA "ATEX" IP68, thread M20
EX stop end, polyamide, M20
Home > WISKA
* Brand new product in its original packaging covered by the warranties and certifications provided by WISKA
Best sellers
▲More info
▲Features
| Material | Polyamide |
| Material sealing gasket | EPDM |
| Temp. range min | -40 °C |
| Temp. range max | 75 °C |
| Protection class | IP66 / IP68 (5 bar 30 min) |
| Type of protection | Ex eb, Ex tb |
| Ex-Certificate | ATEX, IECEx |
| Product Color | RAL 9005 |
| Thread type | M |
| Ø Connection thread D | 20 |
| Lead | 1,5 |
| Length screw-in thread L | 15 mm |
| Key width SW1 | 24 mm |
| Key width SW2 | 8 mm |
| Collar diameter E1 | 26 mm |
| Collar diameter E2 | 9 mm |
| Total length TL | 19 mm |
| Order no. RAL 9005 | 10065302 |
| Type | EX-EVSG 20 |
| Packing unit | 100 |
| ETIM-Classification | EC000032 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE WISKA EN.pdf | 12 Mbytes |
|
| EX-EVSG 20 10065302 EN_10065302.pdf | 287 Kbytes |
|
