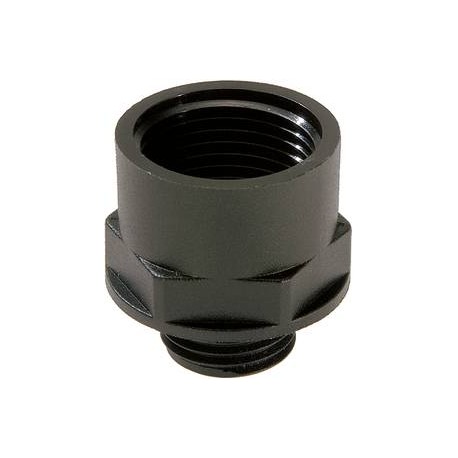

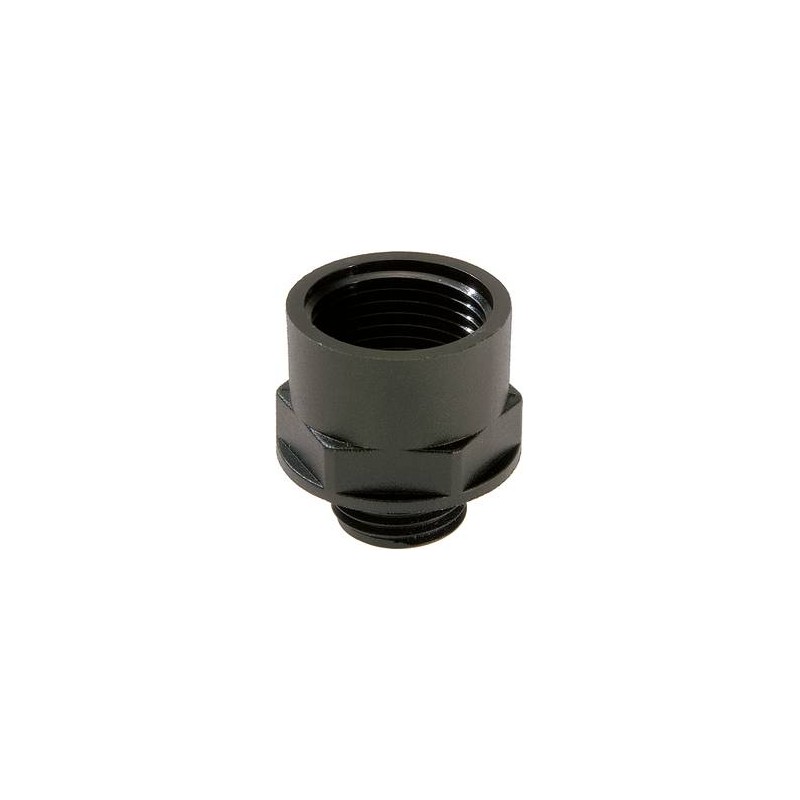

EX-APM 9/16 10064751 WISKA Hexagonal converter. Black PA "ATEX" IP66, thread ext. Pg.09 threaded int. M16
EX-APM 9/16
10064751
WISKA
25
Hexagonal converter. Black PA "ATEX" IP66, thread ext. Pg.09 threaded int. M16
Ex-adaptor, polyamide, Pg9-M16
Home > WISKA
Brand new product in its original packaging covered by the warranties and certifications provided by WISKA
Best sellers
▲More info
▲Features
| Material | Polyamide, fibre reinforced |
| Material sealing gasket | EPDM |
| Temp. range min | -40 °C |
| Temp. range max | 75 °C |
| Protection class | IP66 / IP68 (5 bar 30 min) |
| Type of protection | Ex eb, Ex tb |
| Ex-Certificate | IECEx, ATEX |
| Thread type outer | PG |
| Ø outer thread | 9 |
| Length screw-in thread L | 9 mm |
| Thread type inner | M |
| Ø inner thread | 16 |
| Lead inner | 1,5 |
| Length internal thread | 15,5 mm |
| Key width SW | 20 mm |
| Collar diameter (E) | 22 mm |
| Total length TL | 27 mm |
| Form | A |
| Product Color | RAL 9005 |
| Equipment | Incl. connection thread gasket |
| Order no. RAL 9005 | 10064751 |
| Type | EX-APM 9/16 |
| Packing unit | 25 |
| ETIM-Classification | EC000938 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE WISKA EN.pdf | 16 Mbytes |
|
| EX-APM 9/16 10064751 EN_10064751.pdf | 258 Kbytes |
|
