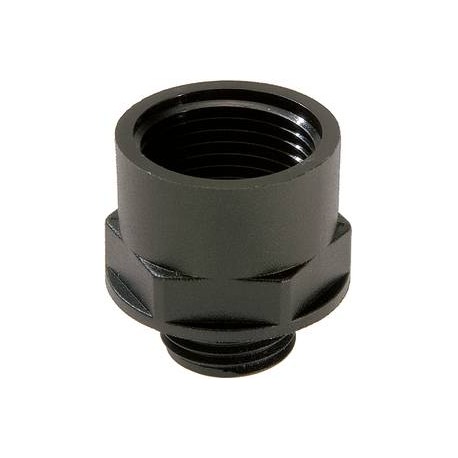

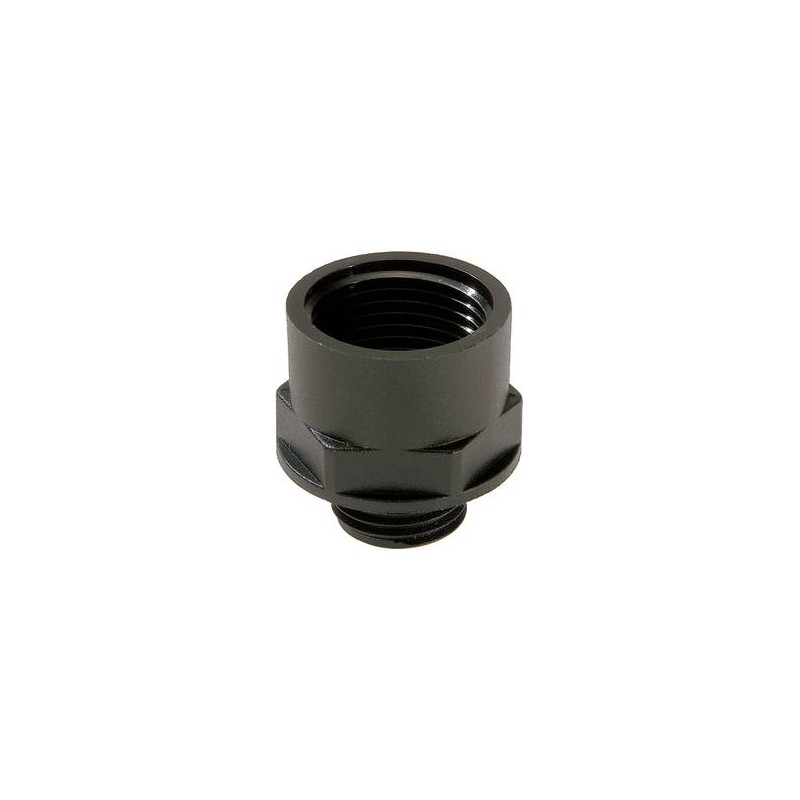

EX-APM 16/20 10064759 WISKA Hexagonal converter. Black PA "ATEX" IP66, thread ext. Pg.16 threaded int. M20

Name: EX-APM 16/20 10064759 WISKA Hexagonal converter. Black PA "ATEX" IP66, thread ext. Pg.16 threaded int. M20
Brand: WISKA
SKU: WIS10064759
Price: 8.86 USD
Availability: OutOfStock

Reference: EX-APM 16/20

Code: 10064759

Manufacturer: WISKA

Description:

Hexagonal converter. Black PA "ATEX" IP66, thread ext. Pg.16 threaded int. M20

Ex-adaptor, polyamide, Pg16-M20

Categories:

WISKA

Brand new product in its original packaging covered by the warranties and certifications provided by WISKA

More Info
PDF
Reviews

Guarantee, repair and return.

Total: 187,72 €

Unit Price: 7,5088 €

This price is per unit and is the net value (not including taxes if applicable).

Special discounts for registered customers.Login or register and prices will be updated.

Calculate price by quantity

Quantity	Price

Standard lead time: 3-4 weeks.

These delivery times are an estimate any may vary when the item order has been processed.
You will be notified of any change to delivery times once the order has been processed.
To this delivery time you have to add the time of transport from our logistics centre to your company.

LAST VIEWED

MORE INFO

Features

Material	Polyamide, fibre reinforced
Material sealing gasket	EPDM
Temp. range min	-40 °C
Temp. range max	75 °C
Protection class	IP66 / IP68 (5 bar 30 min)
Type of protection	Ex eb, Ex tb
Ex-Certificate	IECEx, ATEX
Thread type outer	PG
Ø outer thread	16
Length screw-in thread L	10 mm
Thread type inner	M
Ø inner thread	20
Lead inner	1,5
Length internal thread	15,5 mm
Key width SW	27 mm
Collar diameter (E)	29 mm
Total length TL	28 mm
Form	A
Product Color	RAL 9005
Equipment	Incl. connection thread gasket
Order no. RAL 9005	10064759
Type	EX-APM 16/20
Packing unit	25
ETIM-Classification	EC000938

DATASHEET - PDF

Title

Size

Type

EX-APM 16/20 10064759 EN_10064759.pdf

258 Kbytes

PDF CATALOGUE WISKA EN

16 Mbytes
