EX-APM 13,5/16
10064756
WISKA
25

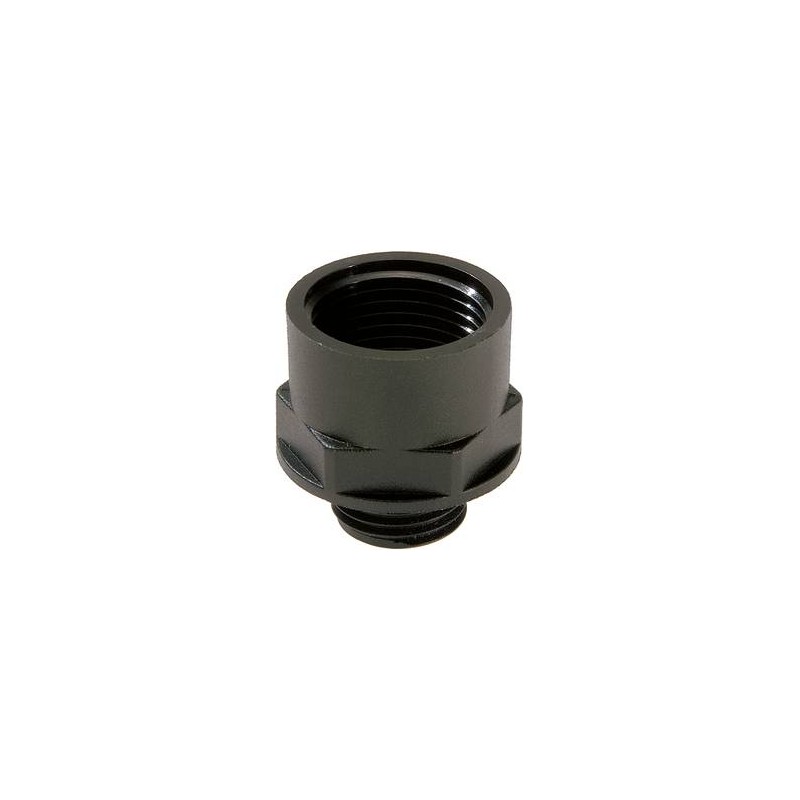

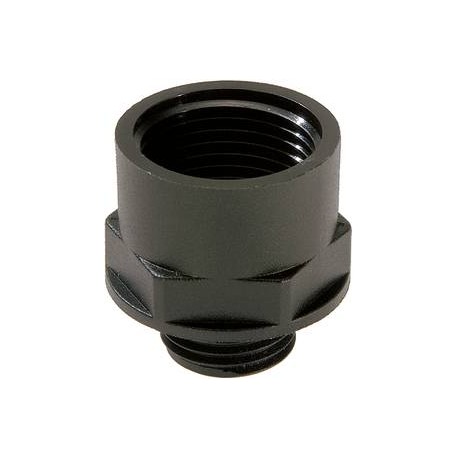

Hexagonal converter. Black PA "ATEX" IP66, thread ext. Pg.13 threaded int. M16
Ex-adaptor, polyamide, Pg13,5-M16
Home > WISKA
* Brand new product in its original packaging covered by the warranties and certifications provided by WISKA
Thank you for your interest in our products; we hope the delivery time indicated is to your convenience.
While the order is being processed you can select the type of shipment that best suits your needs: 24-hour air express, standard 48-72 hour land, etc.
Material | Polyamide, fibre reinforced |
Material sealing gasket | EPDM |
Temp. range min | -40 °C |
Temp. range max | 75 °C |
Protection class | IP66 / IP68 (5 bar 30 min) |
Type of protection | Ex eb, Ex tb |
Ex-Certificate | IECEx, ATEX |
Thread type outer | PG |
Ø outer thread | 13,5 |
Length screw-in thread L | 10 mm |
Thread type inner | M |
Ø inner thread | 16 |
Lead inner | 1,5 |
Length internal thread | 15,5 mm |
Key width SW | 24 mm |
Collar diameter (E) | 27 mm |
Total length TL | 28 mm |
Form | A |
Product Color | RAL 9005 |
Equipment | Incl. connection thread gasket |
Order no. RAL 9005 | 10064756 |
Type | EX-APM 13,5/16 |
Packing unit | 25 |
ETIM-Classification | EC000938 |
Title: | Size: | Type: |
---|---|---|
PDF CATALOGUE WISKA EN.pdf | 12 Mbytes | |
EX-APM 13,5/16 10064756 EN_10064756.pdf | 258 Kbytes |
