EX-APM 11/25
10064755
WISKA
25

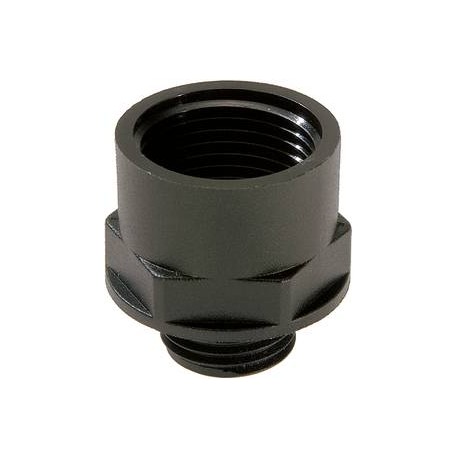

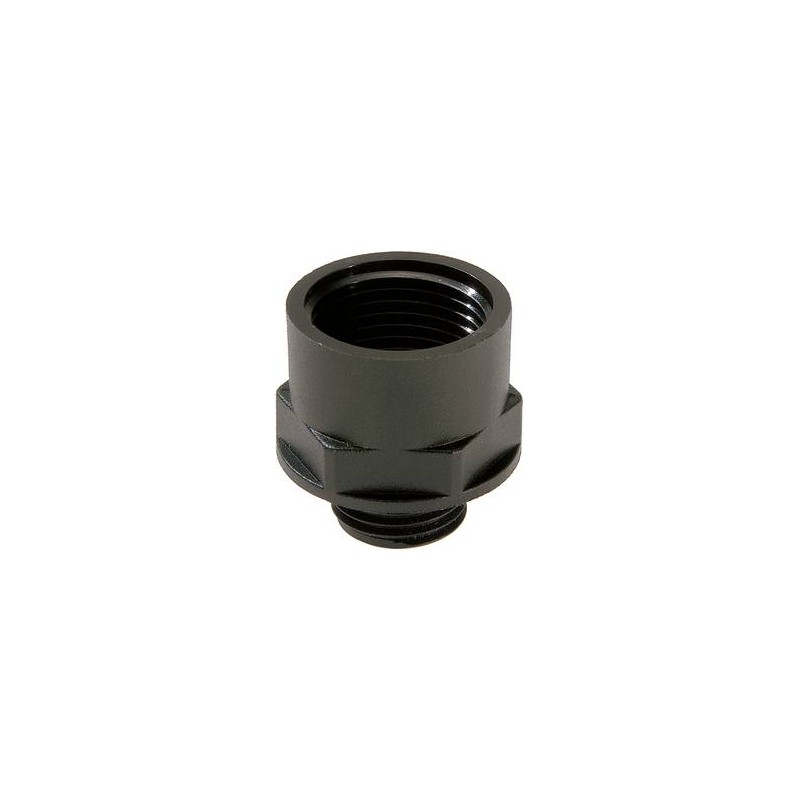

Hexagonal converter. Black PA "ATEX" IP66, thread ext. Pg.11 threaded int. M25
Ex-adaptor, polyamide, Pg11-M25
Home > WISKA
* Brand new product in its original packaging covered by the warranties and certifications provided by WISKA
Thank you for your interest in our products; we hope the delivery time indicated is to your convenience.
While the order is being processed you can select the type of shipment that best suits your needs: 24-hour air express, standard 48-72 hour land, etc.
Material | Polyamide, fibre reinforced |
Material sealing gasket | EPDM |
Temp. range min | -40 °C |
Temp. range max | 75 °C |
Protection class | IP66 / IP68 (5 bar 30 min) |
Type of protection | Ex eb, Ex tb |
Ex-Certificate | IECEx, ATEX |
Thread type outer | PG |
Ø outer thread | 11 |
Length screw-in thread L | 9 mm |
Thread type inner | M |
Ø inner thread | 25 |
Lead inner | 1,5 |
Length internal thread | 15,5 mm |
Key width SW | 29 mm |
Collar diameter (E) | 32 mm |
Total length TL | 27 mm |
Form | A |
Product Color | RAL 9005 |
Equipment | Incl. connection thread gasket |
Order no. RAL 9005 | 10064755 |
Type | EX-APM 11/25 |
Packing unit | 25 |
ETIM-Classification | EC000938 |
Title: | Size: | Type: |
---|---|---|
PDF CATALOG WISKA CABLE ENTRIES AND PROTECTION EN.pdf | 8 Mbytes | |
PDF CATALOG WISKA JUCTION BOXES EN.pdf | 3 Mbytes | |
PDF CATALOG WISKA LIGHTING INSTALLATION AND MARITIME APP EN.pdf | 5 Mbytes | |
EX-APM 11/25 10064755 EN_10064755.pdf | 258 Kbytes |
