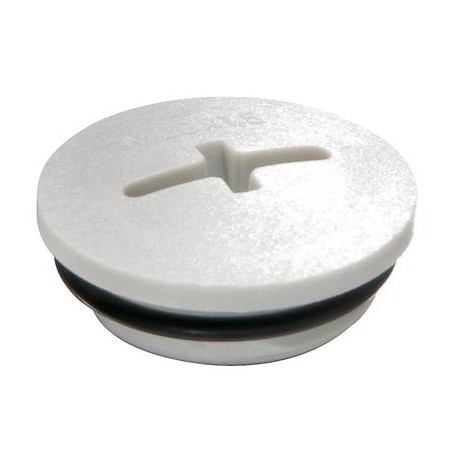

EVSG-ORD 40/GL 10064639 WISKA Light grey round cap RAL 7035, PA IP68 thread M40
EVSG-ORD 40/GL
10064639
WISKA
50
Light grey round cap RAL 7035, PA IP68 thread M40

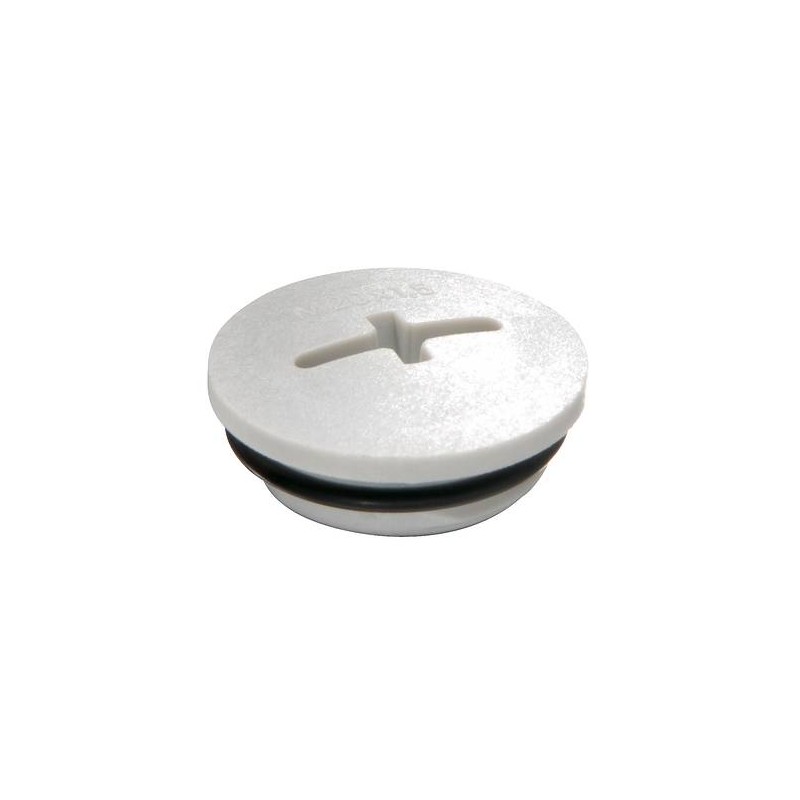

Stop end with mounted O-Ring, polyamide, RAL 7035, M40
Home > WISKA
* Brand new product in its original packaging covered by the warranties and certifications provided by WISKA
More info
▲Features
| Material | Polyamide, fibre reinforced |
| Material sealing gasket | EPDM |
| Temp. range min | -40 °C |
| Temp. range max | 100 °C |
| Glow wire test | 650 °C |
| Protection class | IP66 / IP68 (5 bar 30 min) |
| Thread type | M |
| Ø Connection thread D | 40 |
| Lead | 1,5 |
| Length screw-in thread L | 8 mm |
| Total length TL | 13 mm |
| External diameter ED | 46 mm |
| Product Color | RAL 7035 |
| Order no. RAL 7035 | 10064639 |
| Type | EVSG-ORD 40 |
| Packing unit | 50 |
| ETIM-Classification | EC000032 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG WISKA CABLE ENTRIES AND PROTECTION EN.pdf | 8 Mbytes |
|
| PDF CATALOG WISKA JUCTION BOXES EN.pdf | 3 Mbytes |
|
| PDF CATALOG WISKA LIGHTING INSTALLATION AND MARITIME APP EN.pdf | 5 Mbytes |
|
| EVSG-ORD 40/GL 10064639 EN_10064639.pdf | 188 Kbytes |
|
